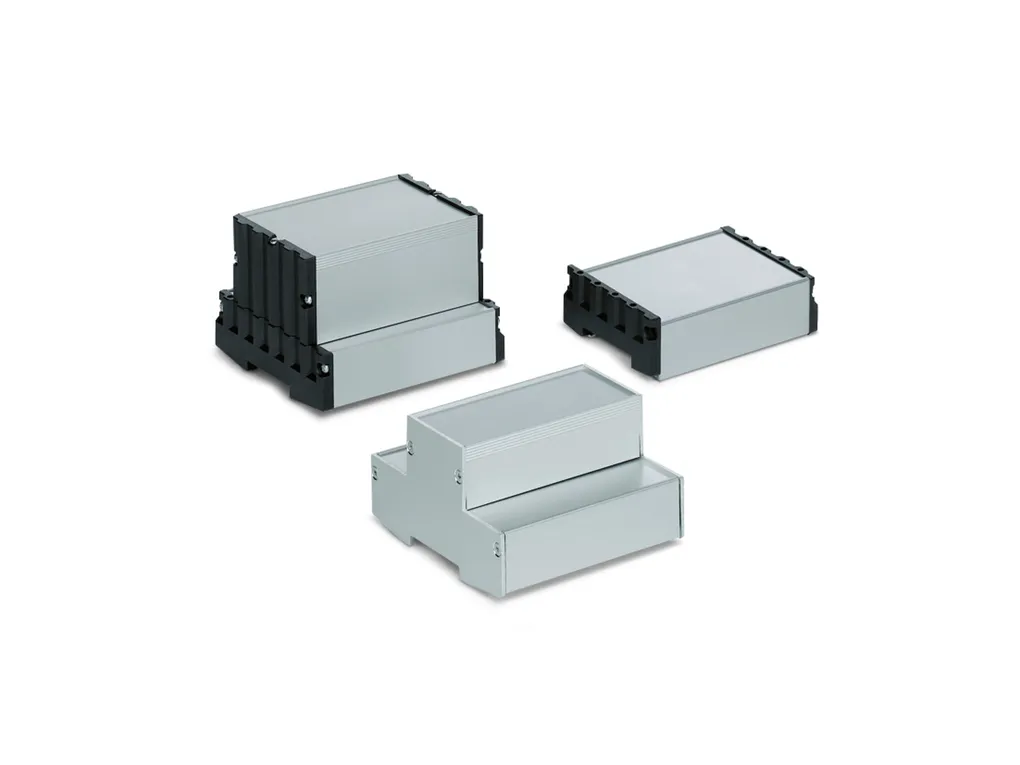

| Product properties | Product type: Component housing lower part Product family: UM-ALU 4-72 Type: Basic profile Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UM-ALU |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/babd9b95f03e854daf91bc88d9e6e045/-S204x204-FJPG Depth: 29.4 mm Depth from top edge of DIN rail: 25.5 mm Length: 165 mm External dimensions Profile width (external): 75 mm Internal dimensions Profile width (internal): 72 mm PCB design PCB thickness: 1.44 mm ... 2 mm |
| Material specifications | Color: aluminum color Color (Housing): aluminum Surface characteristics: anodized Housing material: Aluminum |
| Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP40 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C |
| PCB data | Number of PCB holders: 3 Type of PCB mount: Slot PCB surface: 10694 mm² ... 11262 mm² (TOP in conjunction with side elements COVERâ¦AL) 10834 mm² ... 11204 mm² (BOTTOM in conjunction with side elements COVERâ¦AL) 10694 mm² ... 11562 mm² (TOP in conjunction with side elements COVERâ¦PA) 10966 mm² ... 11562 mm² (BOTTOM in conjunction with side elements COVERâ¦PA) Thickness of the PCB: 1.44 mm ... 2 mm |
| Mounting | Mounting type: Screw mounting Mounting position: parallel to the DIN rail |
| Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
| ECLASS | ECLASS-11.0: 27182701 ECLASS-13.0: 27190601 |
| ETIM | ETIM 9.0: EC002779 |
| UNSPSC | UNSPSC 21.0: 31261500 |
