PHOENIX CONTACT 2200952

PHOENIX CONTACT 2200952

Not available

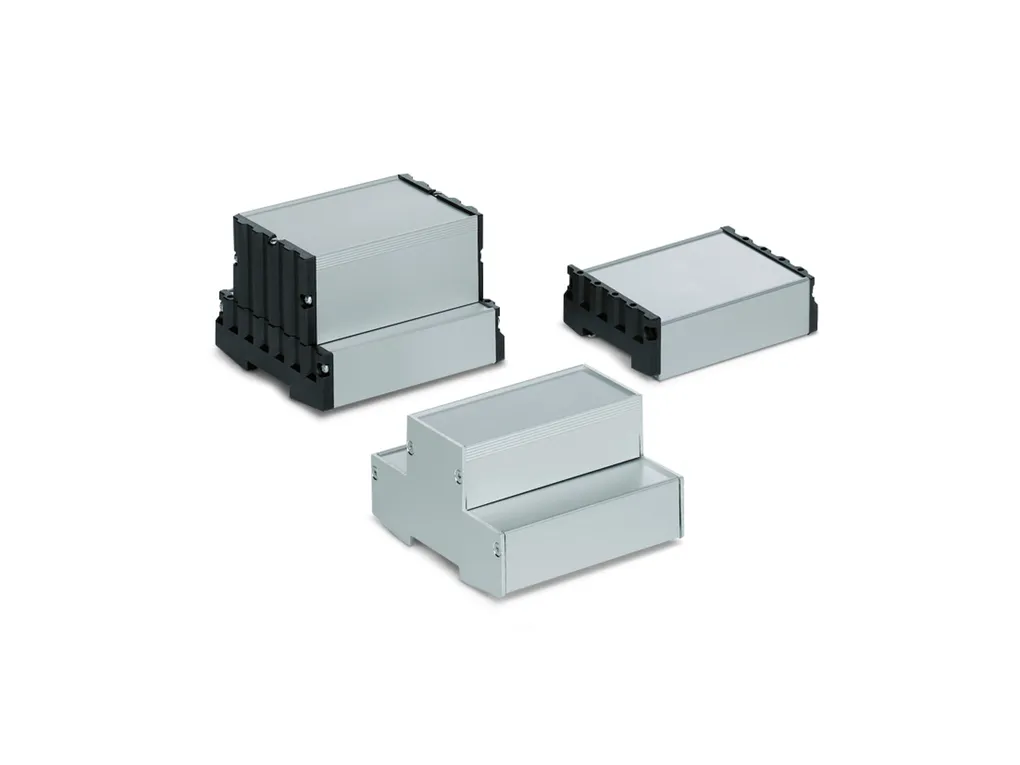

UM-ALU 4-100,5 COVER PA BK - Lateral element

Press-drawn section housings, Screw mounting, Side elements (left and right) incl. snap-on foot and screws for basic profile, color: black (9005), width: 105.4 mm

Product Code: 2200952

Partner cod.: 2200952

PHOENIX CONTACT

Tecnichal data

Technical Specs

Description

Tecnichal data

Product properties	Product type: Panel mounting base side part Product family: UM-ALU 4-100,5 Type: Side elements (left and right) incl. snap-on foot and screws for basic profile Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UM-ALU
Dimensions	Width: 105.4 mm
Material specifications	Color: black (9005) Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP40 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 %
Mounting	Mounting type: Screw mounting Tightening torque / speed: Screw connection with the basic profile: 0.8 Nm-1 Nm / rpm- rpm
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton

Technical Specs

ECLASS	ECLASS-11.0: 27182701 ECLASS-13.0: 27190602
ETIM	ETIM 9.0: EC002779
UNSPSC	UNSPSC 21.0: 31261500

Description

Press-drawn section housings, Side elements (left and right) incl. snap-on foot and screws for basic profile, width: 105.4 mm, color: black (9005)
