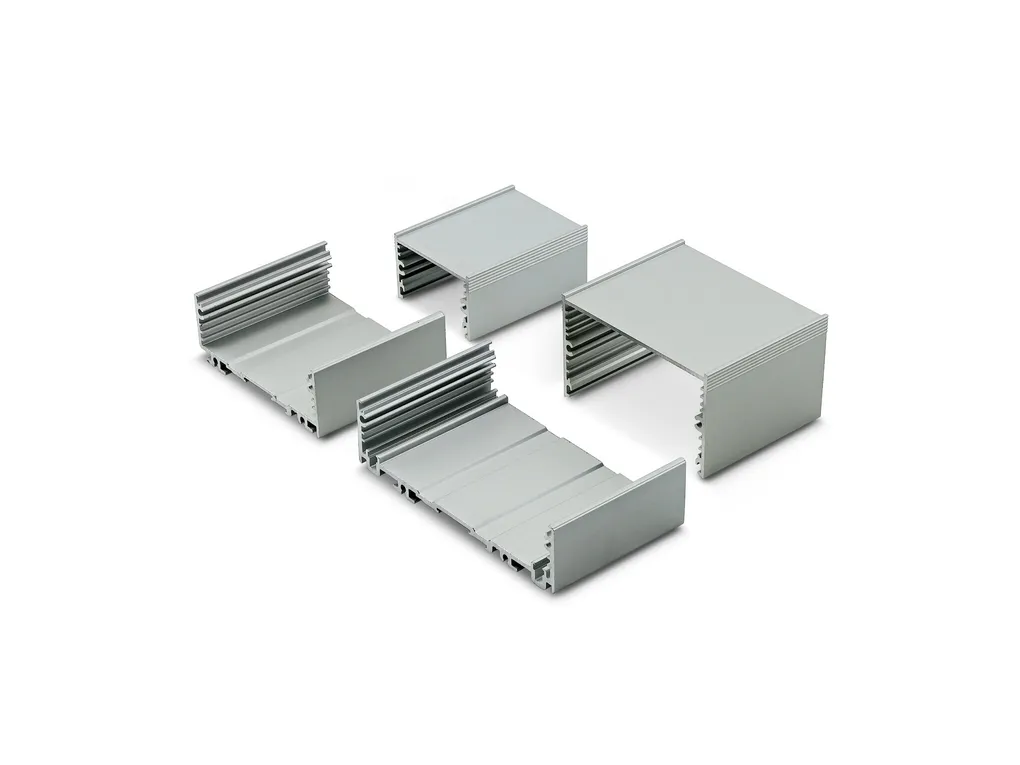

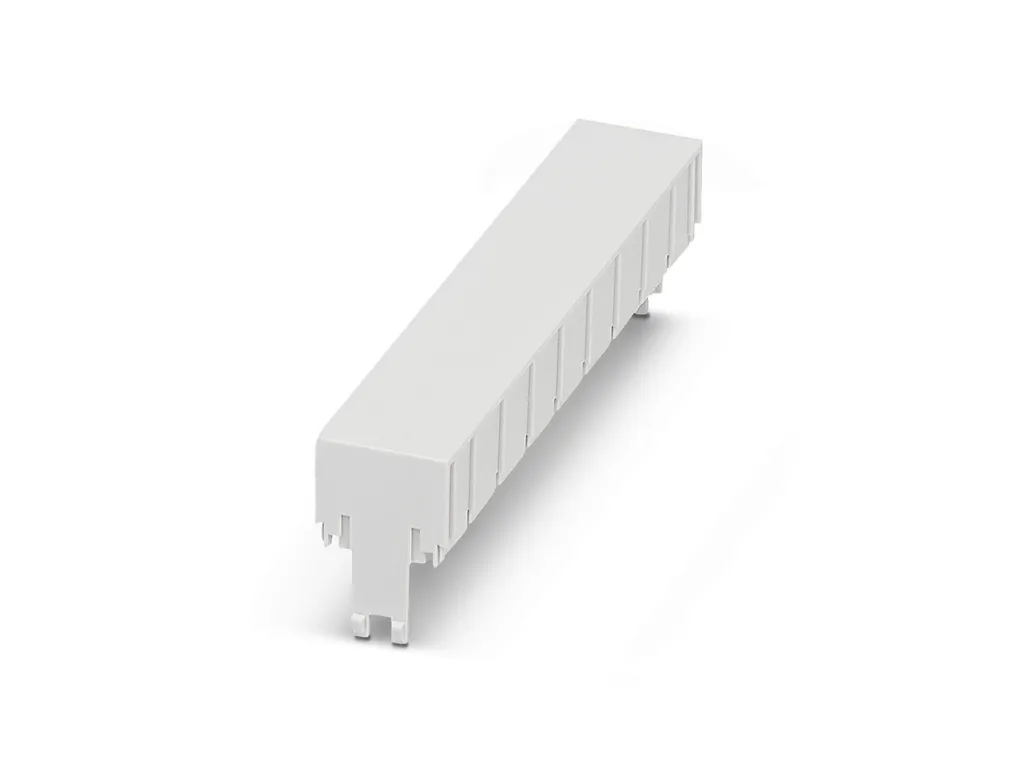

| Product properties | Product type: Component housing cover Product family: UM-ALU Type: Profile cover Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UM-ALU |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/52b14686306eb849ae42fba8b1bd9e6c/-S204x204-FJPG Width: 45.6 mm Depth: 28.1 mm Length: 95 mm External dimensions Profile width (external): 45.6 mm Internal dimensions Profile width (internal): 42 mm PCB design PCB thickness: 1.44 mm ... 2 mm |
| Material specifications | Color: aluminum color Color (Housing): aluminum Surface characteristics: anodized Housing material: Aluminum |
| Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP40 Ambient temperature (operation): -40°C ... 100°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C |
| PCB data | Number of PCB holders: 4 Type of PCB mount: Slot PCB surface: 2603 mm² ... 3653 mm² (TOP in conjunction with side elements COVERLIDâ¦AL or 4LIDâ¦PA) 2436 mm² ... 3558 mm² (BOTTOM in conjunction with side elements COVERLIDâ¦AL or 4LIDâ¦PA) Thickness of the PCB: 1.44 mm ... 2 mm |
| Mounting | Mounting type: Screw mounting Mounting position: parallel to the DIN rail |
| Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
| ECLASS | ECLASS-11.0: 27182701 ECLASS-13.0: 27190603 |
| ETIM | ETIM 9.0: EC002779 |
| UNSPSC | UNSPSC 21.0: 31261500 |
