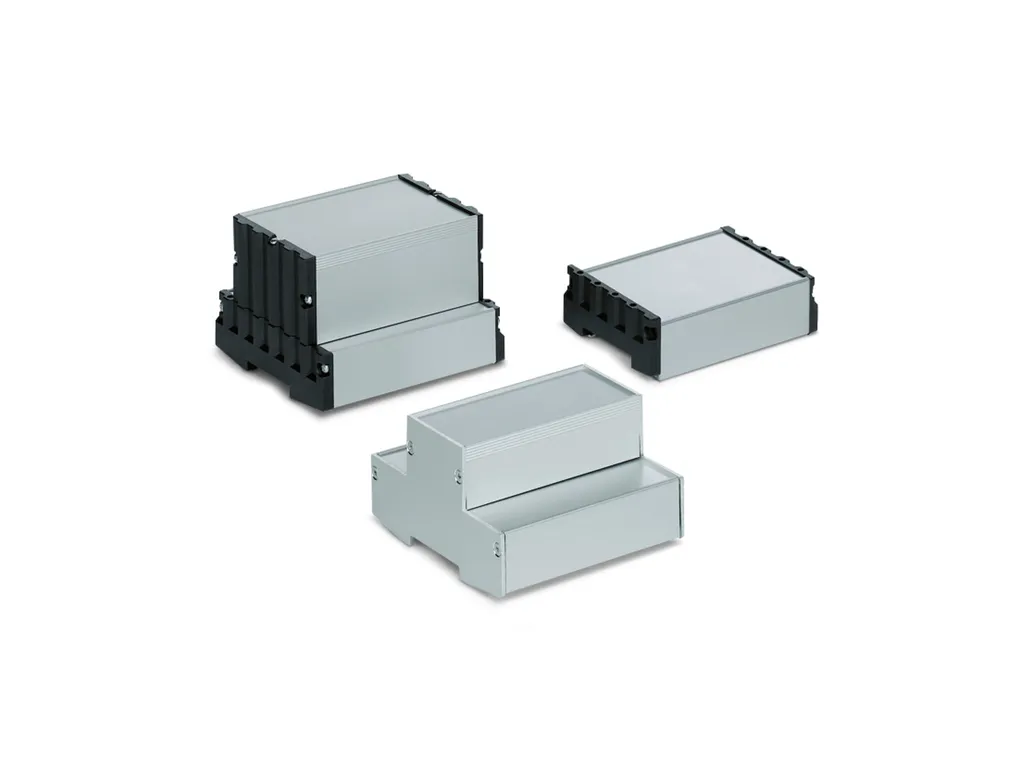

| Product properties | Product type: Panel mounting base side part Product family: UM-ALU Type: Side elements (left and right) for profile cover, incl. screws Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UM-ALU |
| Dimensions | Width: 45.4 mm Length: 9 mm |
| Material specifications | Color: black (9005) Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide |
| Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP40 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 % |
| Mounting | Mounting type: Screw mounting Tightening torque / speed: Screw connection with profile cover: 0.8 Nm-1 Nm / rpm- rpm |
| Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
| ECLASS | ECLASS-11.0: 27182701 ECLASS-13.0: 27190602 |
| ETIM | ETIM 9.0: EC002779 |
| UNSPSC | UNSPSC 21.0: 31261500 |
