PHOENIX CONTACT 2201252

Not available

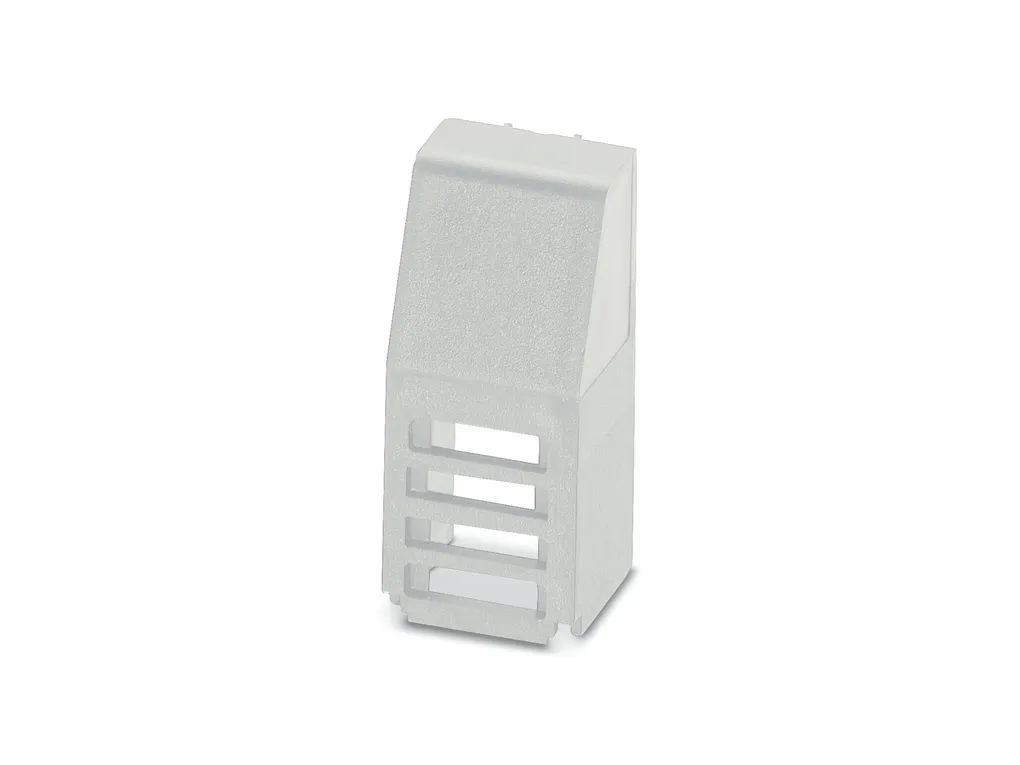

EH 22,5-C CS/ABS GY7035 - Upper part of housing

DIN rail housing, Upper housing part, tall design, no connection opening, width: 22.6 mm, height: 75.26 mm, depth: 36.95 mm, color: light grey (7035)

Product Code: 2201252

Partner cod.: 2201252

PHOENIX CONTACT

Tecnichal data

Technical Specs

Download

Tecnichal data

Notes	General: Refer to the data sheet for the range in the download area.
Product properties	Product type: Upper housing part Product family: EH 22,5 Max. number of positions: 10 (pitch: 3.5 mm) Type: Upper housing part, tall design, no connection opening Housing type: DIN rail housing Ventilation openings present: no Housing series: EH
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0af0ef00338de04587d2a8bc62cf44b8/-S204x204-FJPG Width: 22.6 mm Height: 75.26 mm Depth: 36.95 mm Depth from base support surface: 19.95 mm
Material specifications	Color: light grey (7035) Flammability rating according to UL 94: HB Surface characteristics: untreated Housing material: ABS
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 80°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 80°C Relative humidity (storage/transport): 95 %
PCB data	Type of PCB mount: Latching
Mounting	Mounting type: Snap in Mounting position: Vertical (horizontal DIN rail)

Technical Specs

ECLASS	ECLASS-11.0: 27182702 ECLASS-13.0: 27190603
ETIM	ETIM 9.0: EC001031
UNSPSC	UNSPSC 21.0: 31261500

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Data_sheet_00214.pdf

Material_description_00001.pdf

Technical_drawing_35852.pdf
