PHOENIX CONTACT 2201655

Not available

UM 108-PROFIL L15,1CM GN - Profile

Drawn section panel mounting base, with a constructional width of 108 mm and a fixed length of 200 cm

Product Code: 2201655

Partner cod.: 2201655

PHOENIX CONTACT

Tecnichal data

Technical Specs

Download

Tecnichal data

Product properties	Product type: Component housing lower part Product family: UM108 Type: Basic profile Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UM

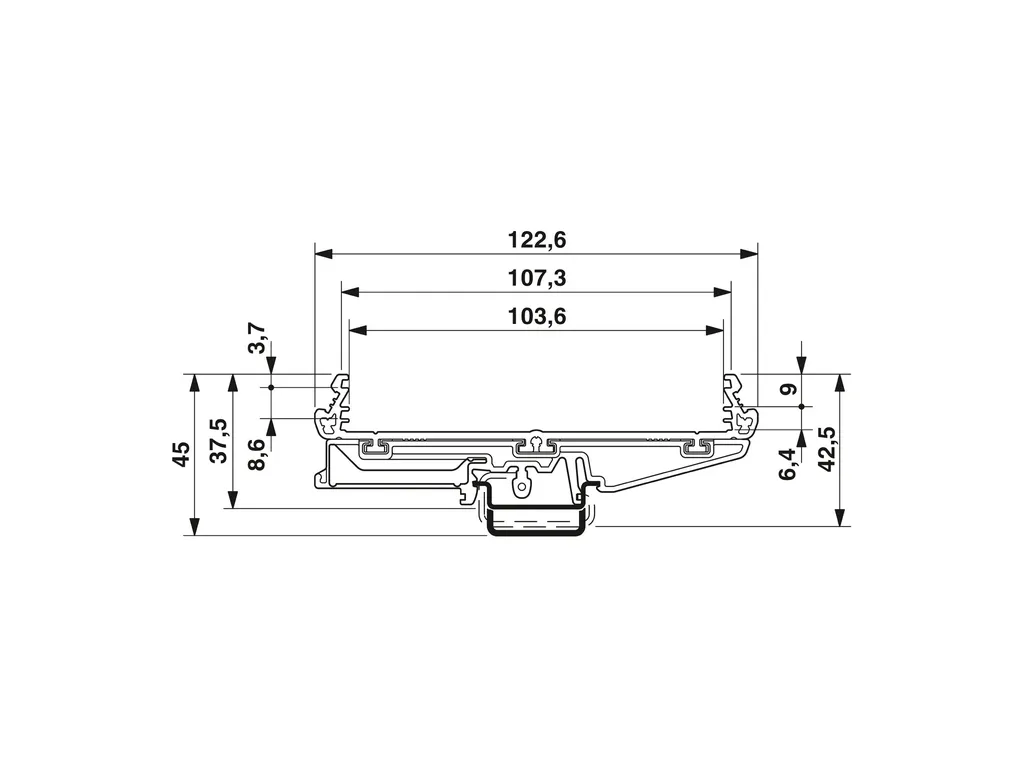

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ed94640a3b084844925b93aacc21791f/-S204x204-FJPG Depth: 21.5 mm Length: 151 mm External dimensions Profile width (external): 107.5 mm Internal dimensions Profile width (internal): 122.6 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm
Material specifications	Color: green (6021) Surface characteristics: untreated Housing material: PVC
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -15°C ... 50°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 50°C Ambient temperature (assembly): -5°C ... 50°C Relative humidity (storage/transport): 95 %
PCB data	Number of PCB holders: 2 Thickness of the PCB: 1.4 mm ... 1.8 mm
Mounting	Mounting type: Latching with side elements, latching with foot element
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton

Technical Specs

ECLASS	ECLASS-11.0: 27182701 ECLASS-13.0: 27190601
ETIM	ETIM 8.0: EC002779
UNSPSC	UNSPSC 21.0: 31261500

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf

Technical_drawing_35978.pdf

Other products

Description other products

PHOENIX CONTACT 2854720

MSTBO 2,5/ 3-G1L BU - PCB header
Cod. Articolo: 2854720

PCB headers, nominal cross section: 2.5 mm², color: blue, nominal current: 12 A, rated voltage (III/2): 320 V, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: MSTBO 2,5/..-G1L, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, locking: without, type of packaging: packed in cardboard, Product with pin output on left side
