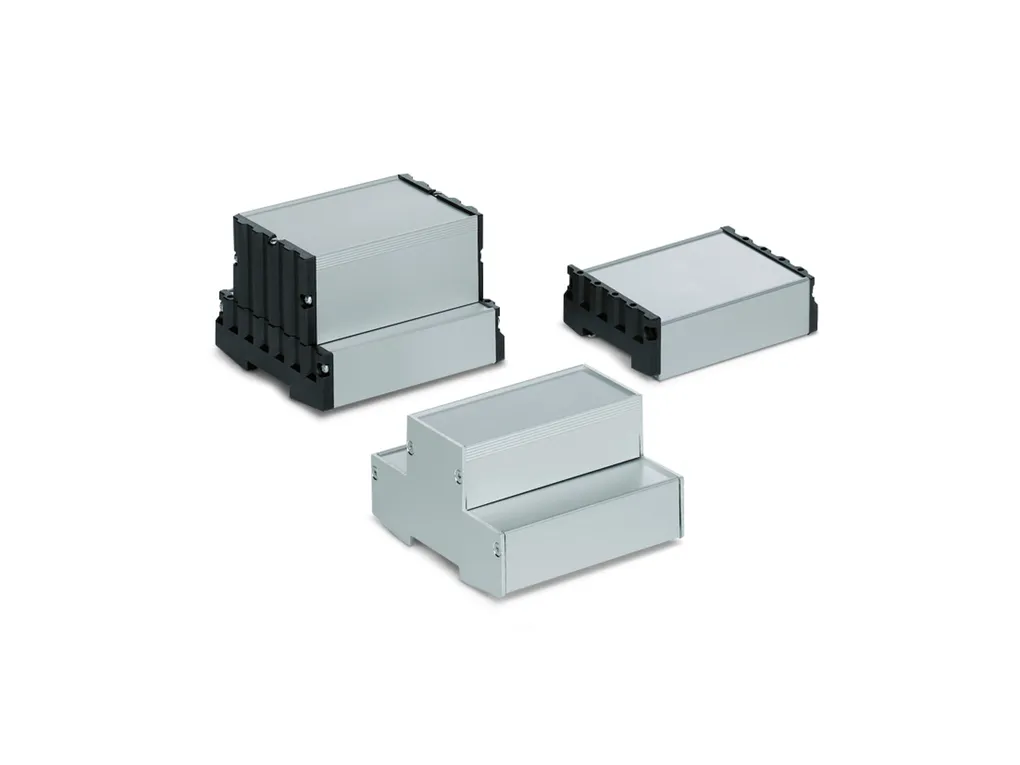

| Product properties | Product type: Panel mounting base side part Product family: UM-ALU 4-72 Type: Side elements (left and right) incl. snap-on foot and screws for profile cover UM-ALU 4 AU..L.. Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UM-ALU |
| Dimensions | Width: 75.4 mm Height: 2 mm Depth: 58.5 mm |
| Material specifications | Color: aluminum color Color (Housing): aluminum Surface characteristics: anodized Housing material: Aluminum |
| Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP40 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C |
| Mounting | Mounting type: Screw mounting Tightening torque / speed: Screw connection with header/profile cover: 0.8 Nm-1 Nm / rpm- rpm |
| Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
| ECLASS | ECLASS-11.0: 27182701 ECLASS-13.0: 27190602 |
| ETIM | ETIM 9.0: EC002779 |
| UNSPSC | UNSPSC 21.0: 31261500 |
