EH 17,5-FP/ABS GY7035 - Filler plug
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Refer to the data sheet for the range in the download area. |
Product properties | Product type: Filler plug Product family: EH...FP Type: Filler plug for unoccupied terminal points (tall design) Housing type: DIN rail housing Ventilation openings present: no Housing series: EH |

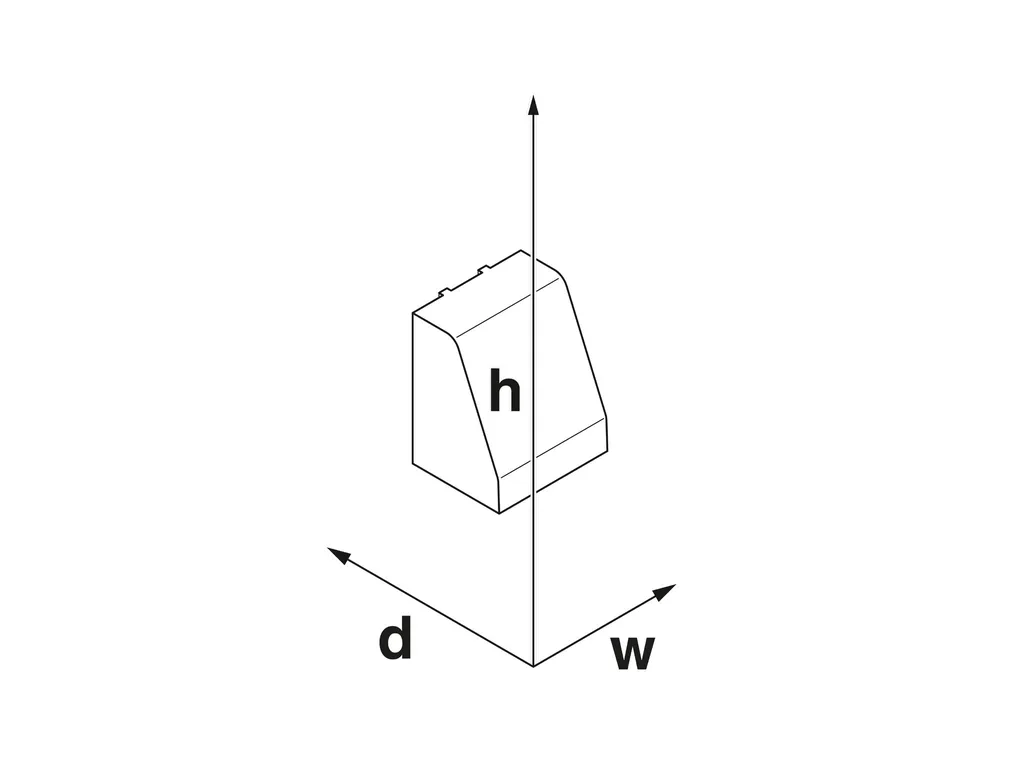

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/05aa4ebe10c39741934455081aca9368/-S204x204-FJPG Width: 16.3 mm Height: 19.65 mm Depth: 13.67 mm |
Material specifications | Color: light grey (7035) Flammability rating according to UL 94: HB Surface characteristics: untreated Housing material: ABS |
Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 80°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 80°C Relative humidity (storage/transport): 95 % |
Mounting | Mounting type: Latching with upper housing part |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190605 |
ETIM | ETIM 9.0: EC001031 |
UNSPSC | UNSPSC 21.0: 31261500 |
