PHOENIX CONTACT 2201842
PHOENIX CONTACT 2201842
PHOENIX CONTACTNot available

EH 22,5-FP/ABS BK9005 - Filler plug

DIN rail housing, Filler plug for unoccupied terminal points (tall design), width: 21.35 mm, height: 19.65 mm, depth: 13.67 mm, color: black (9005)
Product Code: 2201842
Partner cod.: 2201842
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
NotesGeneral: Refer to the data sheet for the range in the download area.
Product propertiesProduct type: Filler plug
Product family: EH 22,5
Type: Filler plug for unoccupied terminal points (tall design)
Housing type: DIN rail housing
Ventilation openings present: no
Housing series: EH

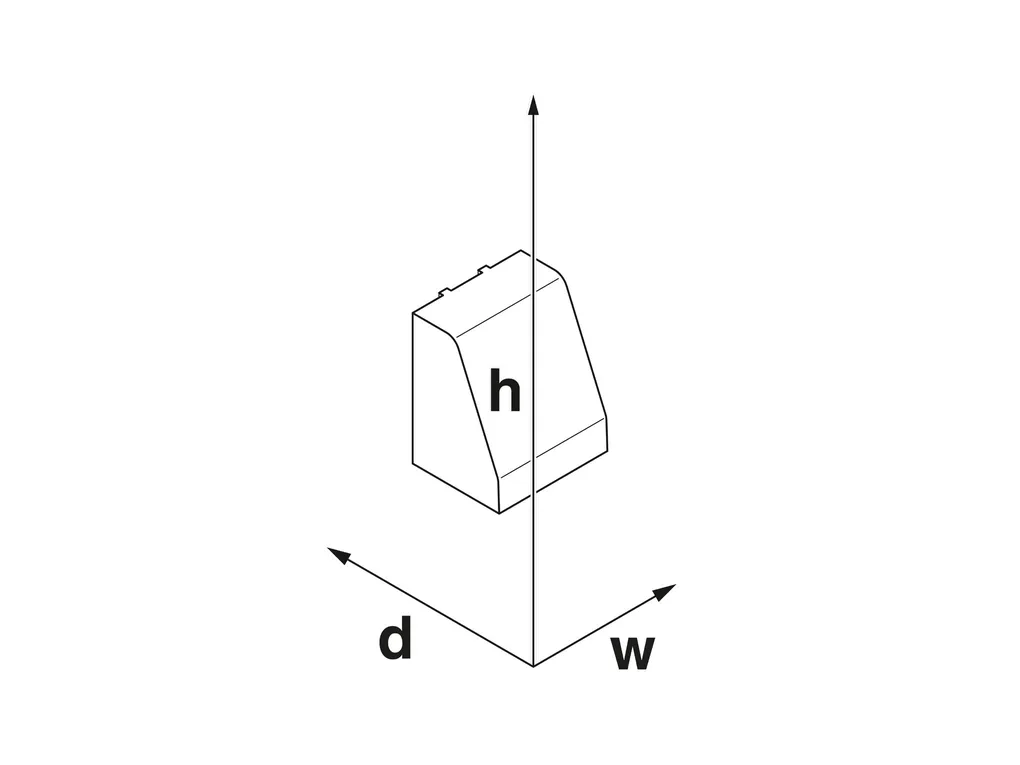

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/05aa4ebe10c39741934455081aca9368/-S204x204-FJPG
Width: 21.35 mm
Height: 19.65 mm
Depth: 13.67 mm
Material specificationsColor: black (9005)
Flammability rating according to UL 94: HB
Surface characteristics: untreated
Housing material: ABS
Environmental and real-life conditionsAmbient conditions
Max. IP code to attain: IP20
Ambient temperature (operation): -40°C ... 80°C (depending on power dissipation)
Ambient temperature (storage/transport): -40°C ... 70°C
Ambient temperature (assembly): -5°C ... 80°C
Relative humidity (storage/transport): 95 %
MountingMounting type: Latching with upper housing part
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf

Technical_drawing_36071.pdf
