PHOENIX CONTACT 2201844

PHOENIX CONTACT 2201844

Not available

EH 22,5 F-FP/ABS GY7035 - Filler plug

DIN rail housing, Filler plug for unoccupied terminal points (flat design), with vents, width: 21.35 mm, height: 33.39 mm, depth: 13.67 mm, color: light grey (7035)

Product Code: 2201844 Copia - Copy

Copia - Copy

Partner cod.: 2201844 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Notes	General: Refer to the data sheet for the range in the download area.
Product properties	Product type: Filler plug Product family: EH 22,5 Type: Filler plug for unoccupied terminal points (flat design) Housing type: DIN rail housing Ventilation openings present: yes Housing series: EH

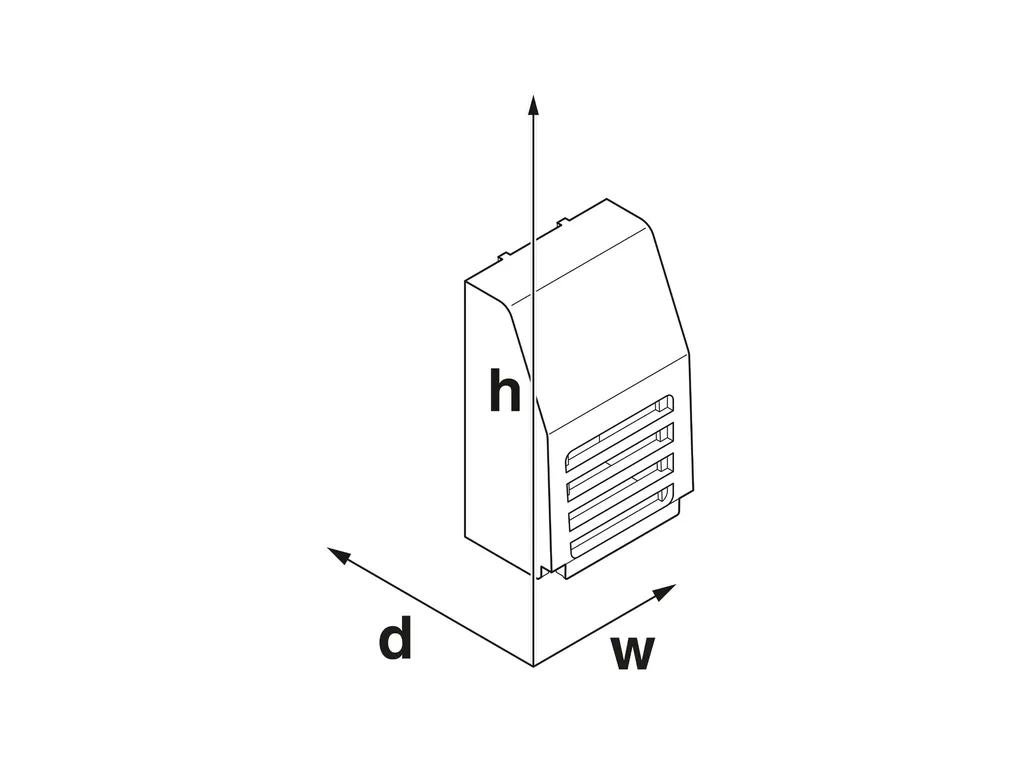

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e2af21d47c98474f940377478681e45a/-S204x204-FJPG Width: 21.35 mm Height: 33.39 mm Depth: 13.67 mm
Material specifications	Color: light grey (7035) Flammability rating according to UL 94: HB Surface characteristics: untreated Housing material: ABS
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 80°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 80°C Relative humidity (storage/transport): 95 %
Mounting	Mounting type: Latching with upper housing part

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf

Technical_drawing_36073.pdf

Other products

Description other products

PHOENIX CONTACT 2201829

EH 52,5 F-C DS/ABS GY7035 - Upper part of housing
Cod. Articolo: 2201829

DIN rail housing, Upper housing part, flat design, connection opening on both sides, width: 52.6 mm, height: 74.65 mm, depth: 36.95 mm, color: light grey (7035)

PHOENIX CONTACT 2200400

ME 35 UT/FE BUS/10+2 BK - Mounting base housing
Cod. Articolo: 2200400

DIN rail housing, Lower housing part with metal foot catch, with 2 FE contacts, tall design, with vents, width: 35.2 mm, height: 99 mm, depth: 107.3 mm, color: black (9005), cross connection: integrated bus connector, number of positions cross connector: 10+2, Bus connector: 10parallel contacts, 2serial contacts

PHOENIX CONTACT 2200872

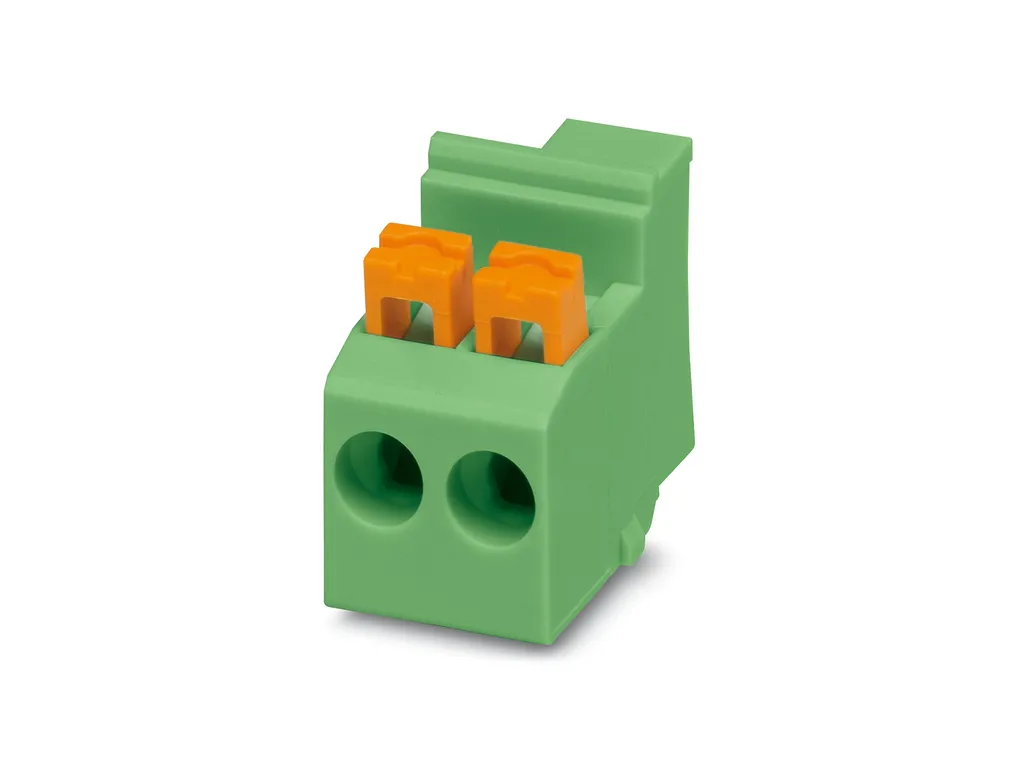

FKDSO 2,5/ 2-L GN - PCB terminal block
