PHOENIX CONTACT 2202051

Not available

ME PLC 40 CT10 GY7035 VPE1 - Front connection module

Connection technology carrier, fully assembled with FKCN 1 x 10-pos., cover and release lever, incl. fitted cover; corresponding header: MSTBA 2,5/10-G (1757543)

Product Code: 2202051

Partner cod.: 2202051

PHOENIX CONTACT

Tecnichal data

Technical Specs

Download

Tecnichal data

Notes	General: Refer to the data sheet for the range in the download area.
Product properties	Product type: Upper housing part Max. number of positions: 10 (pitch: 5 mm) Type: Set consisting of upper housing part and connection technology Housing type: DIN rail housing Ventilation openings present: no Housing series: ME PLC

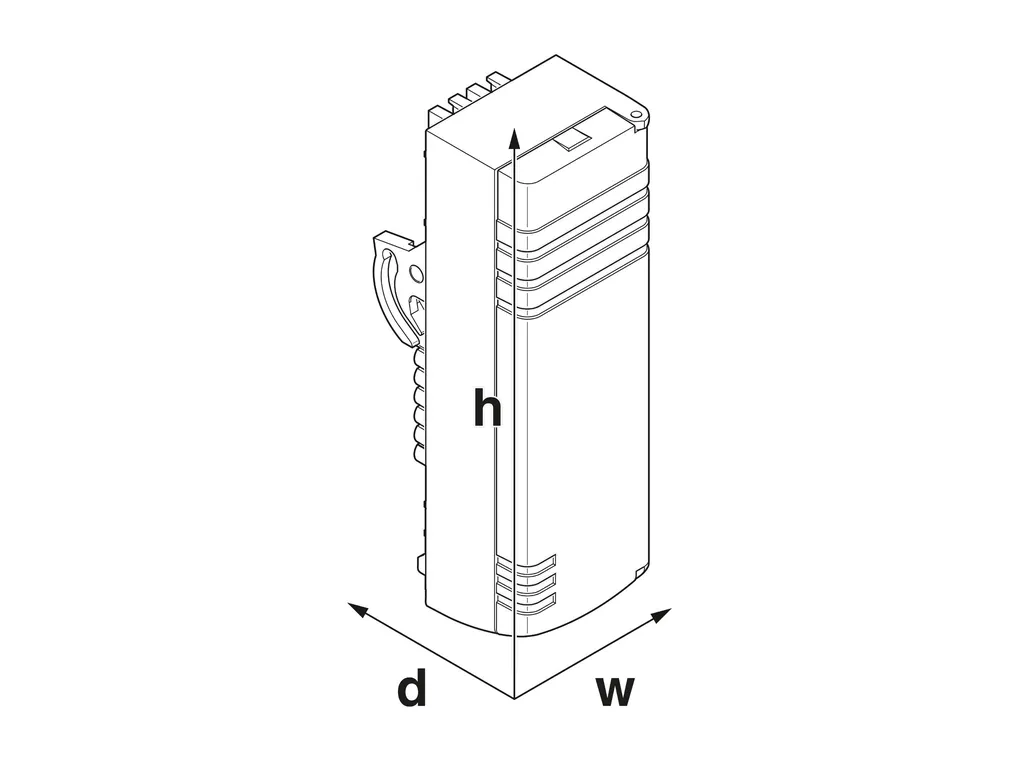

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d57751add254744981ad8fe7e756ab74/-S204x204-FJPG Width: 39.7 mm Height: 128 mm Depth: 48.3 mm
Material specifications	Color: light grey (7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 225 Surface characteristics: untreated Housing material: Polycarbonate
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 95 %
Mounting	Mounting type: Latching with lower housing part Mounting position: Vertical (horizontal DIN rail)
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton

Technical Specs

ECLASS	ECLASS-11.0: 27182702 ECLASS-13.0: 27190401
ETIM	ETIM 8.0: EC001031
UNSPSC	UNSPSC 21.0: 31261500

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf

Technical_drawing_36144.pdf
