PHOENIX CONTACT 2202058

Not available

ME PLC 40 BUS 50/40 KIT BKVPE1 - DIN rail bus connectors

Bus connector set consisting of 50-pos. and 40-pos. connectors, plastic upper part and base, plus metal clamp for mounting on DIN rail, without PCB

Product Code: 2202058 Copia - Copy

Copia - Copy

Partner cod.: 2202058 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Product type: DIN rail connector
Dimensions	Width: 39.8 mm Height: 98.4 mm
Material specifications	Color: jet black RAL 9005 Flammability rating according to UL 94: V0 Housing material: Polyamide
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation)

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf

Package_slip_01604.pdf

Technical_drawing_36151.pdf

Other products

Description other products

PHOENIX CONTACT 2203900

ICC20-H/3L5,0-7035 - PCB header
Cod. Articolo: 2203900

PCB headers, nominal cross section: 2.5 mm², color: light grey, nominal current: 16 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: ICC..-H/..L5,0, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting: without, type of packaging: Box packaging, Product with pin output on left side

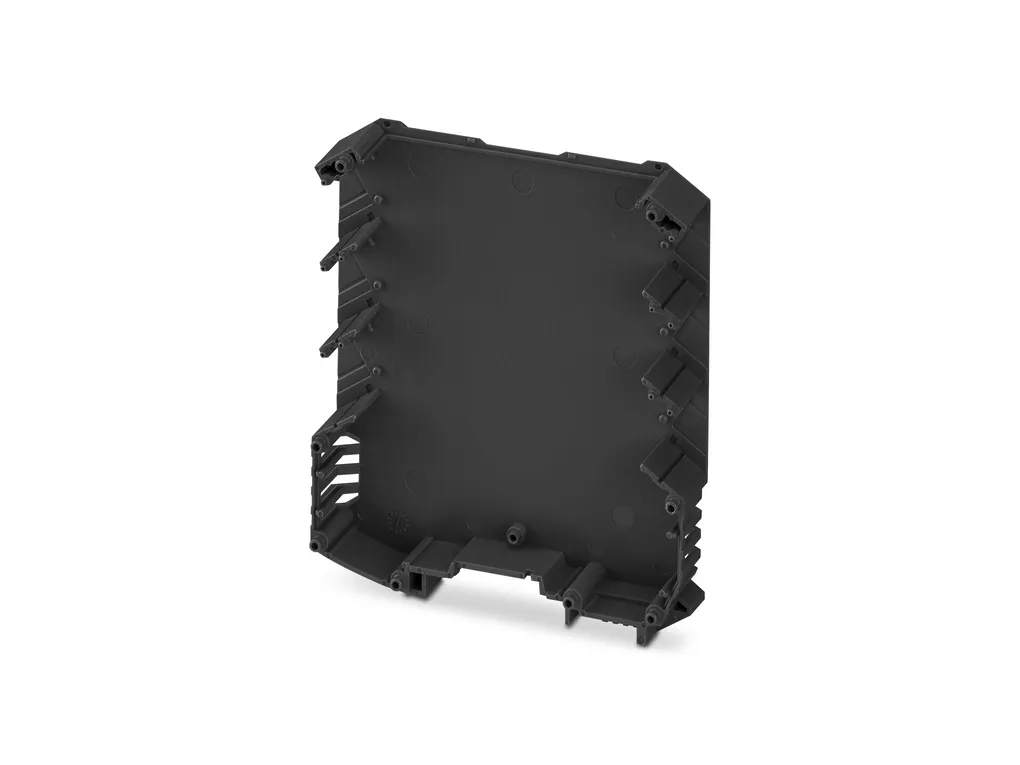

PHOENIX CONTACT 2201427

ME MAX 22,5 GEH-R CL 3-3 BK - Housing half shell
Cod. Articolo: 2201427

DIN rail housing, Housing half shell (right), tall design, with vents, width: 16.3 mm, height: 99 mm, depth: 112.85 mm, color: black (9005), cross connection: DIN rail connector (optional)

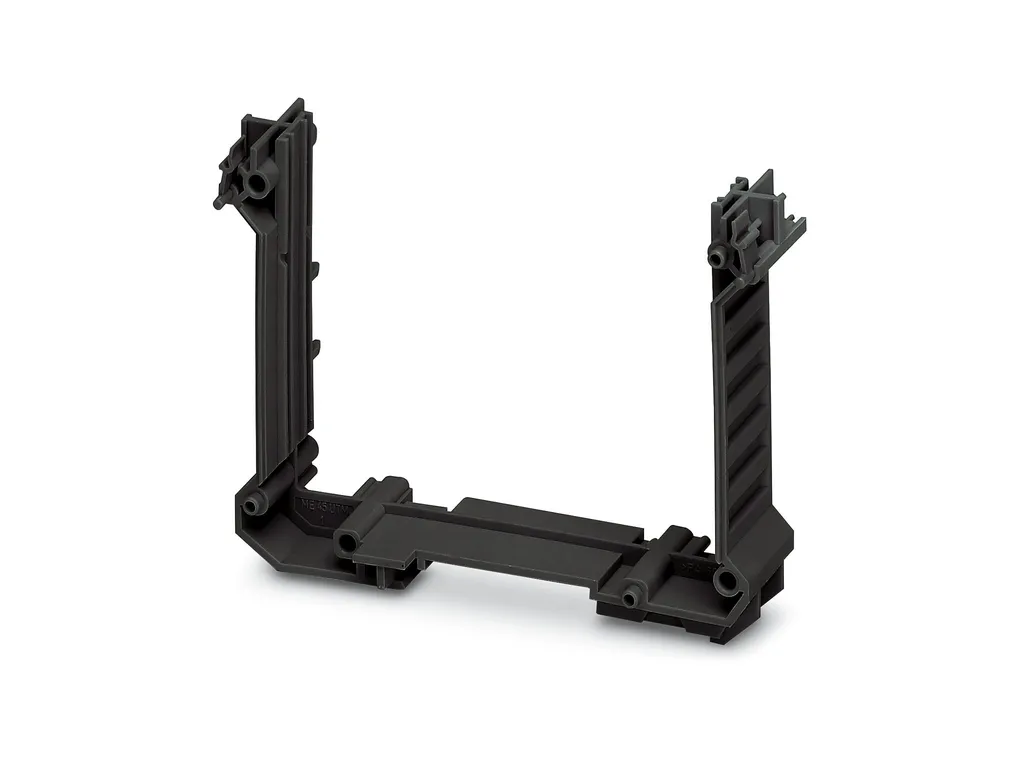

PHOENIX CONTACT 2901398

ME 45 UTM G BK - Intermediate element
Cod. Articolo: 2901398

DIN rail housing, Intermediate element, for modular extension of the housing volume, tall design, without vents, width: 22.6 mm, height: 99 mm, depth: 74 mm, color: black (9005), cross connection: without bus connector, number of positions cross connector: not relevant
