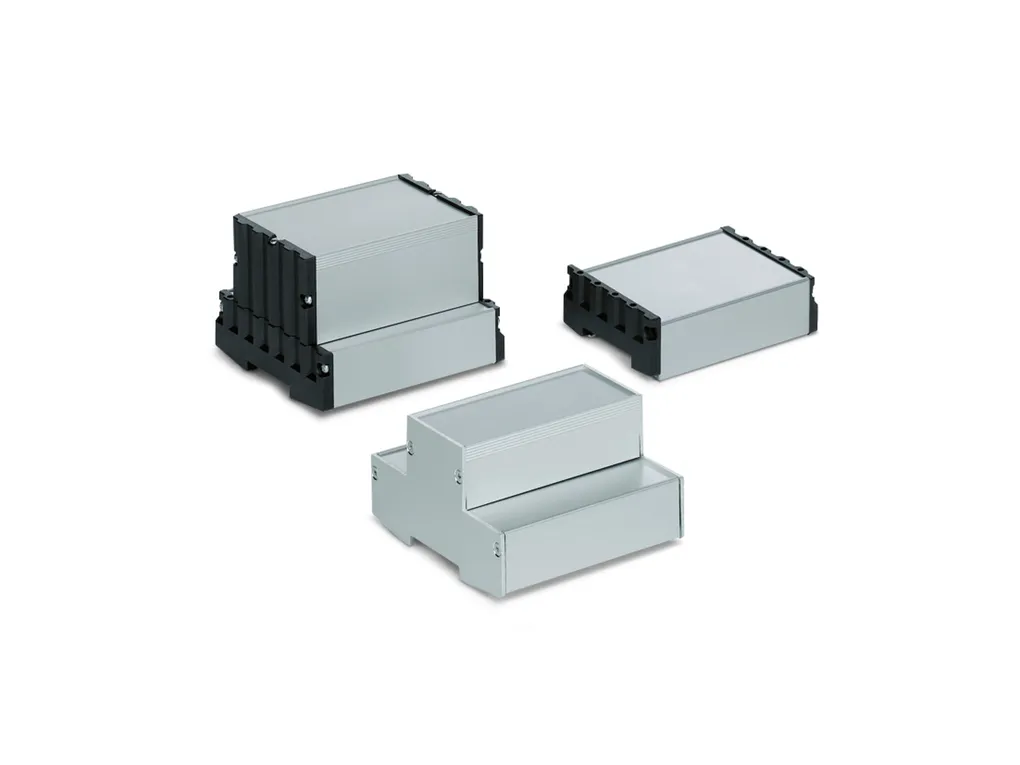

UM-ALU 4-100,5 PROFIL 40 - Profile

Press-drawn section housings, Screw mounting, Basic profile, color: aluminum color, profile width (internal): 100.5 mm, profile width (external): 105 mm, length: 40 mm, depth: 29.4 mm

Product Code: 2202071

Partner cod.: 2202071

PHOENIX CONTACT

Product properties	Product type: Component housing lower part Product family: UM-ALU 4-100,5 Type: Basic profile Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UM-ALU
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b8cf85bcb2f31340aa65c65c663d9579/-S204x204-FJPG Depth: 29.4 mm Depth from top edge of DIN rail: 25.5 mm Length: 40 mm External dimensions Profile width (external): 105 mm Internal dimensions Profile width (internal): 100.5 mm PCB design PCB thickness: 1.44 mm ... 2 mm
Material specifications	Color: aluminum color Color (Housing): aluminum Surface characteristics: anodized Housing material: Aluminum
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP40 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C
PCB data	Number of PCB holders: 3 Type of PCB mount: Slot Thickness of the PCB: 1.44 mm ... 2 mm
Mounting	Mounting type: Screw mounting Mounting position: parallel to the DIN rail
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton
