| Notes | General: Refer to the data sheet for the range in the download area. |
| Product properties | Product type: Upper housing part Product family: EH 22,5 Type: Upper housing part, tall design, no connection opening Housing type: DIN rail housing Ventilation openings present: no Housing series: EH |

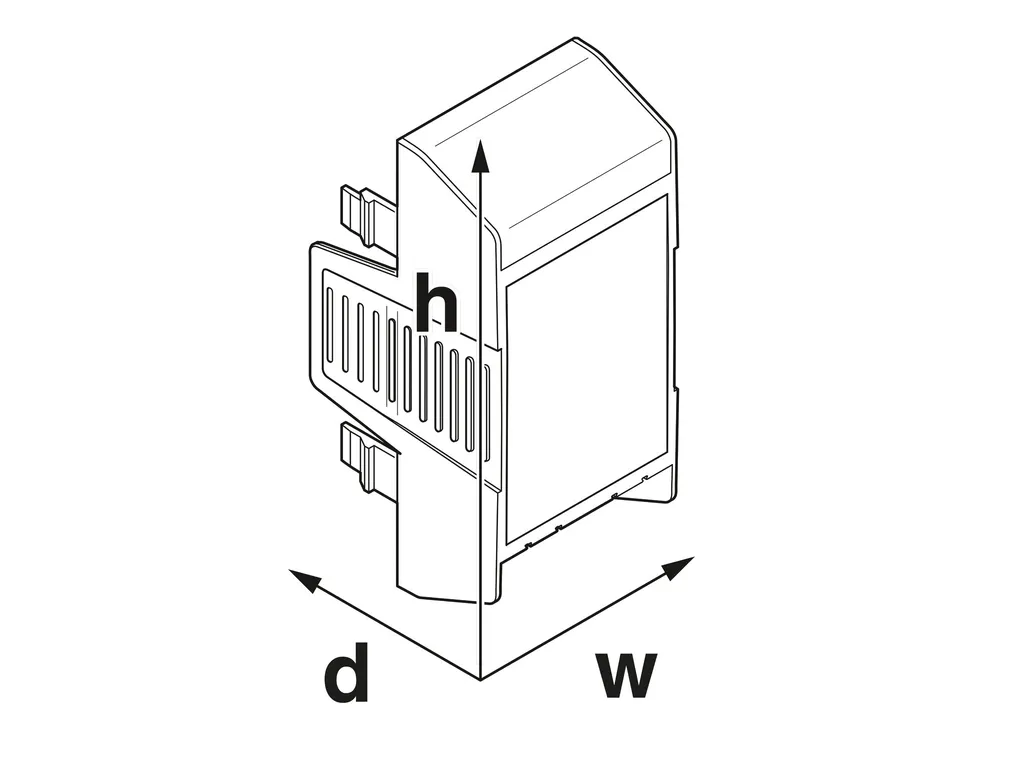

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0af0ef00338de04587d2a8bc62cf44b8/-S204x204-FJPG Width: 22.6 mm Height: 75.26 mm Depth: 36.95 mm Depth from base support surface: 19.95 mm |
| Material specifications | Color: green (6021) Flammability rating according to UL 94: HB Surface characteristics: untreated Housing material: ABS |
| Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 80°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 80°C Relative humidity (storage/transport): 95 % |
| PCB data | Type of PCB mount: Latching |
| Mounting | Mounting type: Snap in |
| ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190603 |
| ETIM | ETIM 9.0: EC001031 |
| UNSPSC | UNSPSC 21.0: 31261500 |
