PHOENIX CONTACT 2202231
PHOENIX CONTACTNot available

EH 22,5-SET/ABS GY7035 - Housing set

DIN rail housing, Housing set, width: 22.6 mm, color: light grey (7035)
Product Code: 2202231
Partner cod.: 2202231
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Product propertiesProduct type: Complete housing
Product family: EH 22,5
Type: Housing set
Housing type: DIN rail housing
Ventilation openings present: yes
Housing series: EH

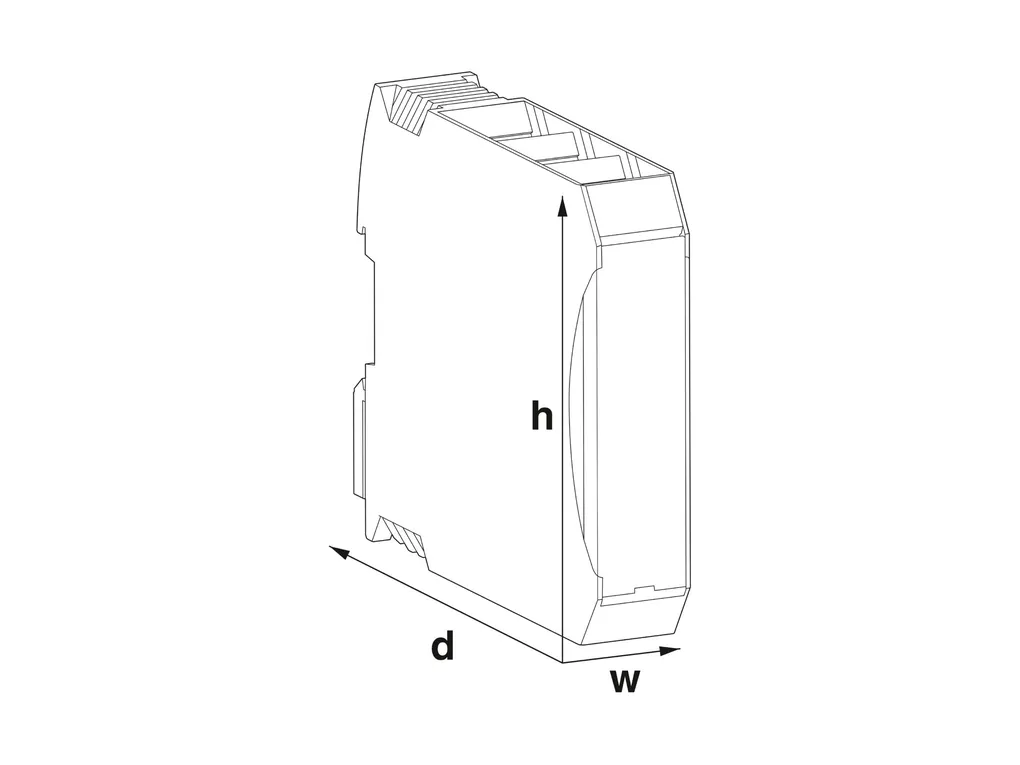

DimensionsWidth: 22.6 mm
Material specificationsColor: light grey (7035)
Flammability rating according to UL 94: HB
Surface characteristics: untreated
Housing material: ABS
Environmental and real-life conditionsAmbient conditions
Max. IP code to attain: IP20
Ambient temperature (operation): -40°C ... 80°C (depending on power dissipation)
Ambient temperature (storage/transport): -40°C ... 55°C
Ambient temperature (assembly): -5°C ... 80°C
PCB dataType of PCB mount: Latching
Technical Specs
ECLASSECLASS-11.0: 27182702
ECLASS-13.0: 27190201
ETIMETIM 9.0: EC001031
UNSPSCUNSPSC 21.0: 31261500
Description
DIN rail housing, Housing set, width: 22.5 mm, color: light gray (7035)
