2202399 PHOENIX CONTACT - Technology Bsa

TBUS8-18,8-PPPPPPPS-7035 - DIN rail bus connectors

DIN rail connector, color: light grey, nominal current: 6 A, 4 A (parallel contacts) (Serial contacts), rated voltage (III/2): 32 V, number of positions: 8, pitch: 2.54 mm, mounting: DIN rail mounting, locking: without, mounting: without, type of packaging: packed in cardboard, Item with gold-plated contacts, bus connectors for connecting with electronics housings, 7 parallel contacts/1 serial contact

Product Code: 2202399

Partner cod.: 2202399

PHOENIX CONTACT

Notes	Recommendation: Material of contact pads for bus connector, galvanic gold (hard gold)
Product properties	Product type: DIN rail connector Product family: TBUS8..2,54 Number of positions: 8 Pitch: 2.54 mm
Electrical properties	Nominal current I_N: 6 A (parallel contacts) Nominal voltage U_N: 32 V Degree of pollution: 3 Contact resistance: 5.97 mÃ© Rated voltage (III/2): 32 V Rated surge voltage (III/2): 1.5 kV Rated voltage (II/2): 32 V Rated surge voltage (II/2): 1.5 kV
Dimensions	Pitch: 2.54 mm Width [w]: 23.2 mm Height [h]: 37.15 mm Length [l]: 16.3 mm
Material specifications	Material data - contact Contact material: Cu alloy Surface characteristics: gold-plated Material data - housing Color (Housing): light grey (7035) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0
Connector	Connection 1 Insulating material: PA CTI according to IEC 60112: 600
Electrical tests	Thermal test \| Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 8 Air clearances and creepage distances \| Specification: IEC 60664-1:2007-04 Insulating material group: I Rated insulation voltage (III/2): 32 V Rated surge voltage (III/2): 1.5 kV minimum clearance value - non-homogenous field (III/2): 0.5 mm minimum creepage distance (III/2): 0.53 mm Rated insulation voltage (II/2): 32 V Rated surge voltage (II/2): 1.5 kV minimum clearance value - non-homogenous field (II/2): 0.5 mm minimum creepage distance (II/2): 0.53 mm
Mechanical tests	Insertion and withdrawal forces Result: Test passed No. of cycles: 25 Insertion strength per pos. approx.: 2.8 N Withdraw strength per pos. approx.: 2.5 N Contact holder in insert Specification: IEC 60512-15-1:2008-05 Contact holder in insert Requirements >20 N: Test passed Polarization and coding Specification: IEC 60512-13-5:2006-02 Result: Test passed Visual inspection Specification: IEC 60512-1-1:2002-02 Result: Test passed Dimension check Specification: IEC 60512-1-2:2002-02 Result: Test passed

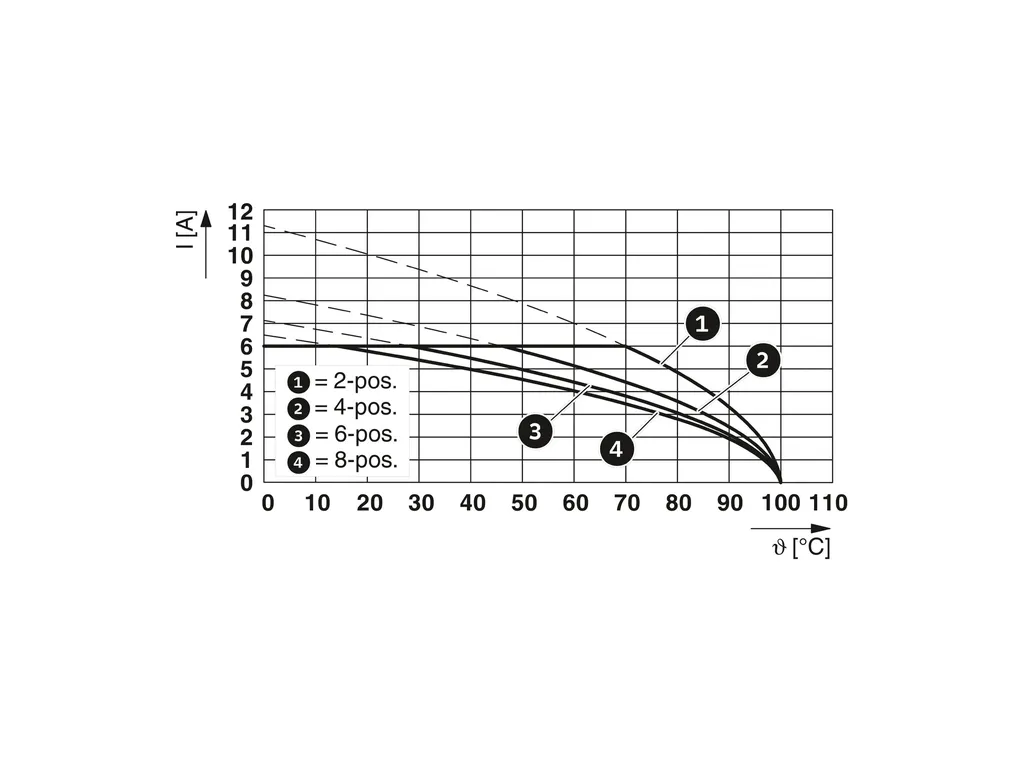

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min 5g (60.1Hz...500Hz) Amplitude: 0.35mm (10Hz...60.1Hz) Test duration per axis: 2.5 h Durability test Specification: IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level: 1.75 kV Contact resistance R₁: 5.97 mÃ© Contact resistance R₂: 5.91 mÃ© Insertion/withdrawal cycles: 25 Climatic test Specification: DIN50018:2013-05 Corrosive stress: 0.2 dm³SO₂on 300 dm³/40°C/1 cycle Thermal stress: 100°C/168h Power-frequency withstand voltage: 0.84 kV Glow-wire test Specification: IEC 60695-2-10:2013-04 Temperature: 850°C Time of exposure: 30 s Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Semi-sinusoidal Acceleration: 15g Shock duration: 11ms Test directions: X-, Y- and Z-axis (pos. and neg.) Ambient conditions Ambient temperature (operation): -40°C ... 105°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 55°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Mounting	Mounting type: DIN rail mounting
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton
