PHOENIX CONTACT 2202451
PHOENIX CONTACTNot available

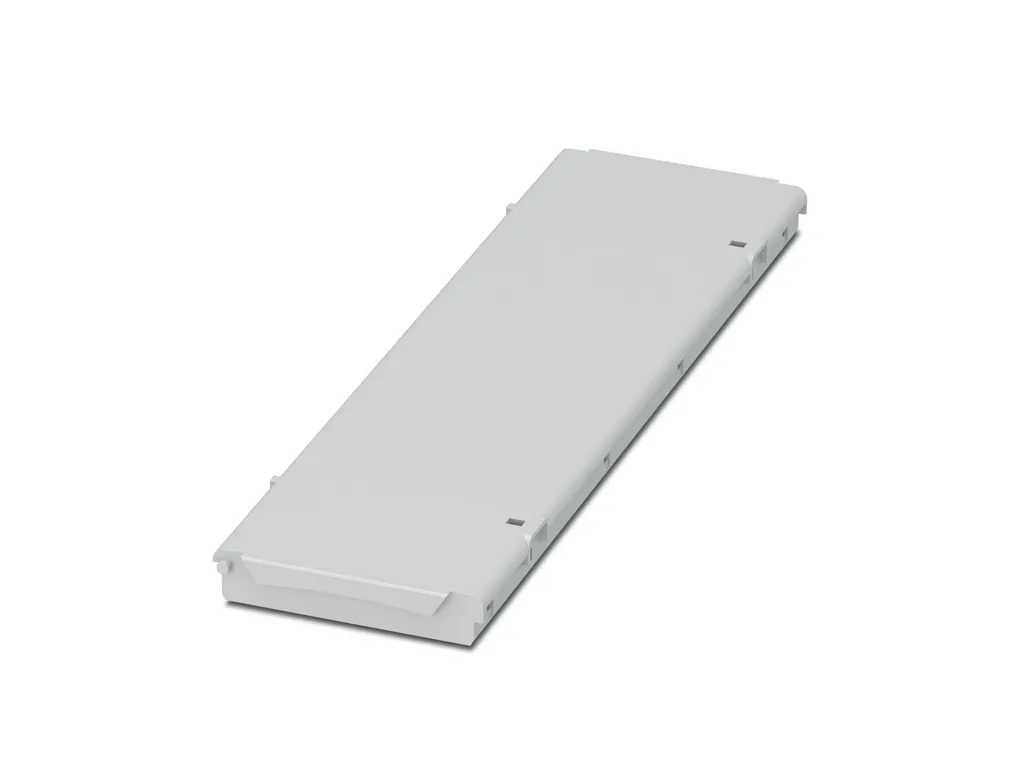

BC 161,6 DKL S KMGY - Housing cover

DIN rail housing for use in distribution boards in accordance with DIN 43880, Hinged cover, can be sealed, Including insertion plate, width: 161.6 mm, height: 45 mm, depth: 8 mm, color: light grey (7035)
Product Code: 2202451
Partner cod.: 2202451
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesProduct type: Cover
Product family: BC DKL S KMGY
Type: Hinged cover, can be sealed
Housing type: DIN rail housing for use in distribution boards in accordance with DIN 43880
Ventilation openings present: no
Housing series: BC
DimensionsWidth: 161.6 mm
Height: 45 mm
Depth: 8 mm
Material specificationsColor: light grey (7035)
Flammability rating according to UL 94: V0
Surface characteristics: untreated
Housing material: Polycarbonate
Environmental and real-life conditionsVibration test
Specification: IEC 60068-2-6:2007-12
Frequency: 10 - 150 - 10 Hz
Sweep speed: 1Âoctave/min
Amplitude: 0.15Âmm (10ÂHzÂ...Â58.1ÂHz)
Acceleration: 2g (58.1ÂHzÂ...Â150ÂHz)
Test duration per axis: 2.5 h
Test directions: X-, Y- and Z-axis
Glow-wire test
Specification: IEC 60695-2-11:2014-02
Temperature: 850°C
Time of exposure: 30 s
Mechanical strength / tumbling barrel
Specification: IEC 60068-2-31:2008-05
Height of fall: 50Âcm
Frequency: 50
Shocks
Specification: IEC 60068-2-27:2008-02
Pulse shape: Half-sine
Acceleration: 15g
Shock duration: 11Âms
Number of shocks per direction: 3
Test directions: X-, Y- and Z-axis (pos. and neg.)
Degree of protection (IP code)
Specification: IEC 60529:1989-11 + AMDÂ1:1999-11 + AMDÂ2:2013-08
Ambient conditions
Max. IP code to attain: IP20
Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation)
Ambient temperature (storage/transport): -40°C ... 70°C
Ambient temperature (assembly): -5°C ... 100°C
Relative humidity (storage/transport): 95 %
MountingMounting type: can be swiveled and sealed
Mounting position: Vertical (horizontal DIN rail)
