| Product properties | Product type: Upper housing part Type: Insulation plate Housing type: DIN rail housing Ventilation openings present: no Housing series: ME-IO |

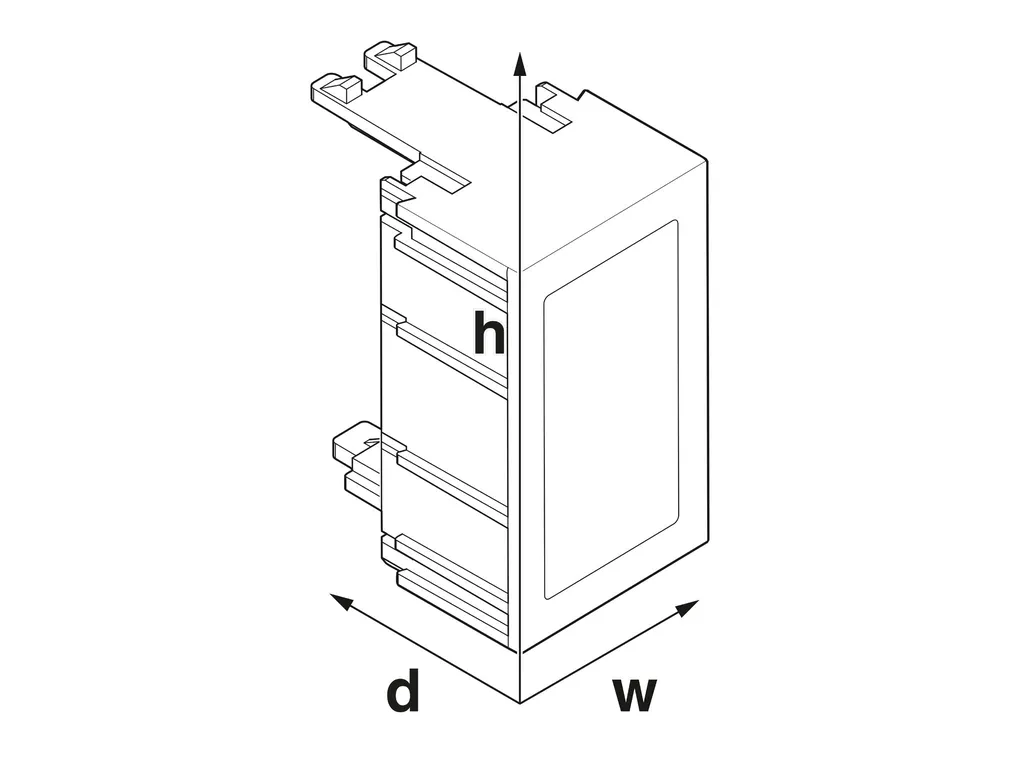

| Dimensions | Width: 2.69 mm Height: 112.2 mm Depth: 28.5 mm |
| Material specifications | Color: light grey (7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Surface characteristics: untreated Housing material: Polyamide |
| Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 % |
| Mounting | Mounting type: Snap in Mounting position: Vertical (horizontal DIN rail) |
| Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
| ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190605 |
| ETIM | ETIM 9.0: EC001031 |
| UNSPSC | UNSPSC 21.0: 31261500 |
