PHOENIX CONTACT 2202723

Not available

ME PLC 40 CL BK - Front connection module

DIN rail housing, Universal cover, width: 39.7 mm, height: 129.7 mm, depth: 47 mm, color: black (9005)

Product Code: 2202723

Partner cod.: 2202723

PHOENIX CONTACT

Tecnichal data

Technical Specs

Download

Tecnichal data

Notes	General: Refer to the data sheet for the range in the download area.
Product properties	Product type: Upper housing part Type: Universal cover Housing type: DIN rail housing Ventilation openings present: no Housing series: ME PLC

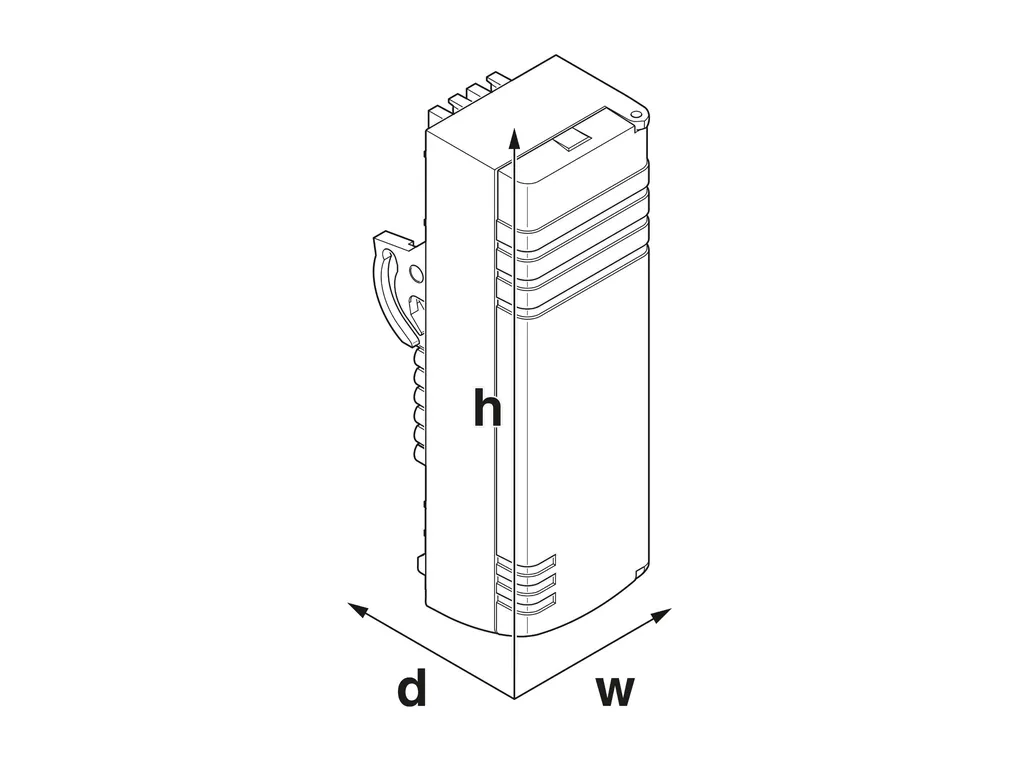

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d57751add254744981ad8fe7e756ab74/-S204x204-FJPG Width: 39.7 mm Height: 129.7 mm Depth: 47 mm
Material specifications	Color: black (9005) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 225 Surface characteristics: untreated Housing material: Polycarbonate
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 95 %
Mounting	Mounting type: Latching with lower housing part Mounting position: Vertical (horizontal DIN rail)
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton

Technical Specs

ECLASS	ECLASS-11.0: 27182702 ECLASS-13.0: 27190605
ETIM	ETIM 9.0: EC002779
UNSPSC	UNSPSC 21.0: 31261500

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf

Technical_drawing_36322.pdf
