Notes | Recommendation: Material of contact pads for bus connector, galvanic gold (hard gold) |

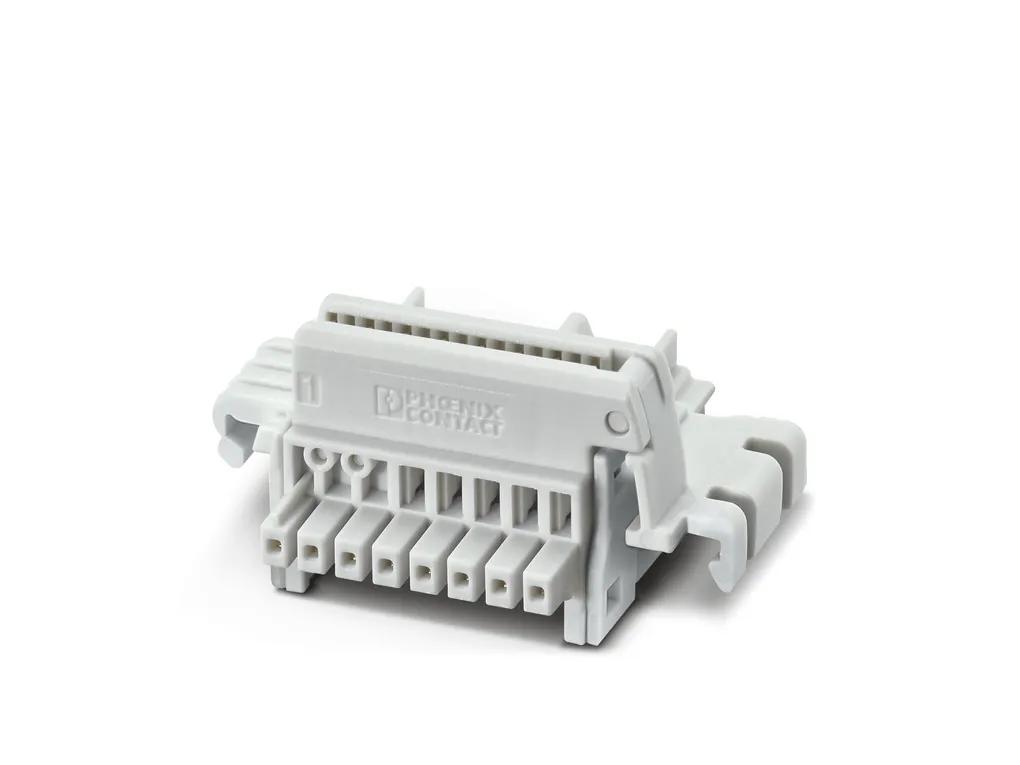

Product properties | Product type: DIN rail connector Product family: TBUS8-2..-PP Number of positions: 8 Pitch: 2.54 mm |
Electrical properties | Nominal current IN: 6 A (parallel contacts) Nominal voltage UN: 32 V Degree of pollution: 3 Rated voltage (III/2): 32 V Rated surge voltage (III/2): 1.5 kV Rated voltage (II/2): 32 V Rated surge voltage (II/2): 1.5 kV |
Connection data | Maximum load current: 6 A |
Dimensions | Pitch: 2.54 mm Width [w]: 24.3 mm Height [h]: 37.15 mm Length [l]: 16.3 mm |
Material specifications | Material data - contact Contact material: Cu alloy Surface characteristics: gold-plated Material data - housing Color (Housing): light grey (7035) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 |
Connector | Connection 1 Insulating material: PA CTI according to IEC 60112: 600 |
Electrical tests | Air clearances and creepage distances | Specification: IEC 60664-1:2007-04 Insulating material group: I Rated insulation voltage (III/2): 32 V Rated surge voltage (III/2): 1.5 kV minimum clearance value - non-homogenous field (III/2): 0.5 mm minimum creepage distance (III/2): 0.53 mm Rated insulation voltage (II/2): 32 V Rated surge voltage (II/2): 1.5 kV minimum clearance value - non-homogenous field (II/2): 0.5 mm minimum creepage distance (II/2): 0.53 mm |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 105°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 55°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C |
Mounting | Mounting type: DIN rail mounting |
Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
ECLASS | ECLASS-11.0: 27460201 ECLASS-12.0: 27460201 ECLASS-13.0: 27460201 |
ETIM | ETIM 9.0: EC002637 |
UNSPSC | UNSPSC 21.0: 39121400 |
