BC 107,6 UT HBUS KMGY - Mounting base housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Refer to the data sheet for the range in the download area. |
Product properties | Product type: Enclosure bottom part Product family: BC UT HBUS Type: Lower housing part with base latch Housing type: DIN rail housing for use in distribution boards in accordance with DIN 43880 Ventilation openings present: no Housing series: BC |

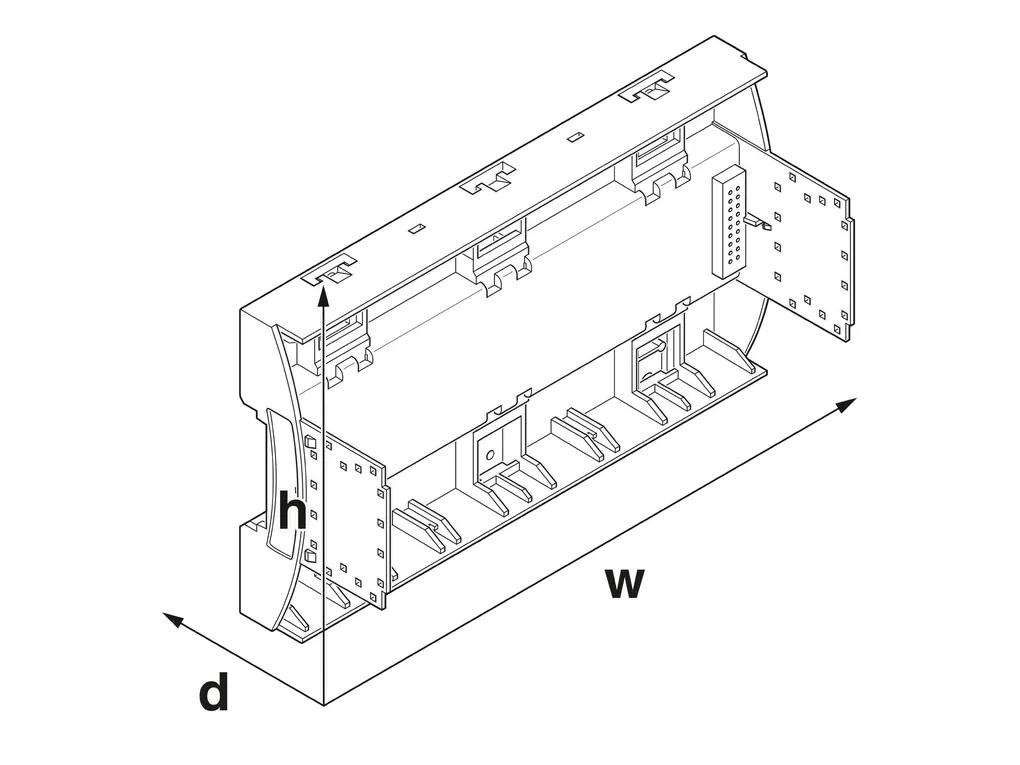

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7abb9df10a1845448021a76f3b495793/-S204x204-FJPG Width: 107.6 mm Height: 89.7 mm Depth: 48.9 mm Horizontal pitch: 6 Div. PCB design PCB thickness: 1.4 mm ... 1.8 mm |
Material specifications | Color: light grey (7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: <400 Surface characteristics: untreated Housing material: Polycarbonate |
Environmental and real-life conditions | Power dissipation single housing for 20°C Ambient temperature: 20°C Reduction factor: 1 Mounting position: vertical Power dissipation: 13.08 W Power dissipation single housing for 30°C Ambient temperature: 30°C Reduction factor: 0.84 Mounting position: vertical Power dissipation: 11 W Power dissipation single housing for 40°C Ambient temperature: 40°C Reduction factor: 0.72 Mounting position: vertical Power dissipation: 9.4 W Power dissipation single housing for 50°C Ambient temperature: 50°C Reduction factor: 0.6 Mounting position: vertical Power dissipation: 7.85 W Power dissipation single housing for 60°C Ambient temperature: 60°C Reduction factor: 0.48 Mounting position: vertical Power dissipation: 6.3 W Power dissipation single housing for 70°C Ambient temperature: 70°C Reduction factor: 0.38 Mounting position: vertical Power dissipation: 5 W Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min Amplitude: 0.15mm (10Hz...58.1Hz) Acceleration: 2g (58.1Hz...150Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Glow-wire test Specification: IEC 60695-2-11:2014-02 Temperature: 850°C Time of exposure: 30 s Mechanical strength / tumbling barrel Specification: IEC 60068-2-31:2008-05 Height of fall: 50cm Frequency: 50 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Half-sine Acceleration: 15g Shock duration: 11ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Degree of protection (IP code) Specification: IEC 60529:1989-11 + AMD1:1999-11 + AMD2:2013-08 Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 95 % |
PCB data | Number of PCB holders: 9 Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm |
Mounting | Mounting type: DIN rail mounting/wall mounting Mounting position: Vertical (horizontal DIN rail) |
Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190601 |
ETIM | ETIM 9.0: EC001031 |
UNSPSC | UNSPSC 21.0: 31261500 |
