PHOENIX CONTACT 2278076

PHOENIX CONTACT 2278076

Not available

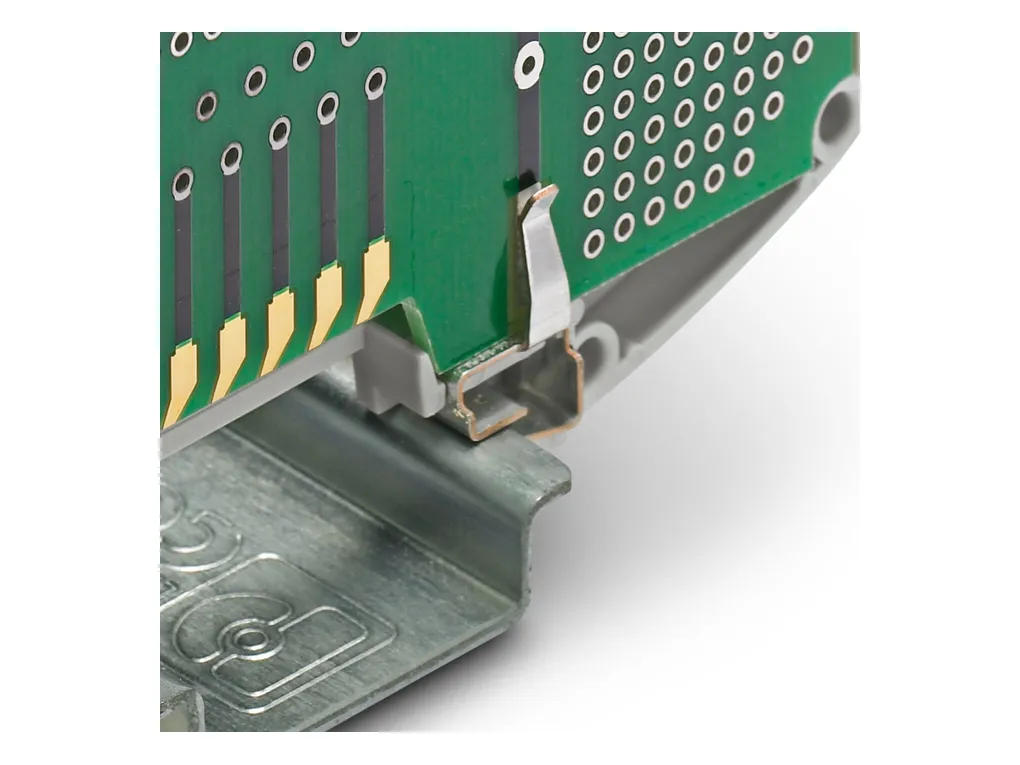

ME BUS FE CONTACT - Functional ground contact

DIN rail housing, FE contact, width: 5 mm, height: 15.25 mm, depth: 9.5 mm, color: silver

Product Code: 2278076

Partner cod.: 2278076

PHOENIX CONTACT

Tecnichal data

Technical Specs

Download

Tecnichal data

Product properties	Product type: Ground contact Type: FE contact Housing type: DIN rail housing Housing series: ME
Dimensions	Width: 5 mm Height: 15.25 mm Depth: 9.5 mm
Material specifications	Color: silver Housing material: Steel, tin-plated

Technical Specs

ECLASS	ECLASS-11.0: 27182702 ECLASS-13.0: 27190605
ETIM	ETIM 9.0: EC001031
UNSPSC	UNSPSC 21.0: 31261500

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Data_sheet_00251.pdf

Material_description_00001.pdf

Technical_drawing_36756.pdf
