PHOENIX CONTACT 2278762

Not available

UM108-SEPEF/L KMGY - Lateral element

Press-drawn section housings, Lateral element (left), color: light grey (7035)

Product Code: 2278762 Copia - Copy

Copia - Copy

Partner cod.: 2278762 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Product type: Panel mounting base side part Product family: UM108 Type: Lateral element (left) Housing type: Press-drawn section housings Housing series: UM
Material specifications	Color: light grey (7035) Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation)

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf

Technical_drawing_36793.pdf

Other products

Description other products

PHOENIX CONTACT 2201894

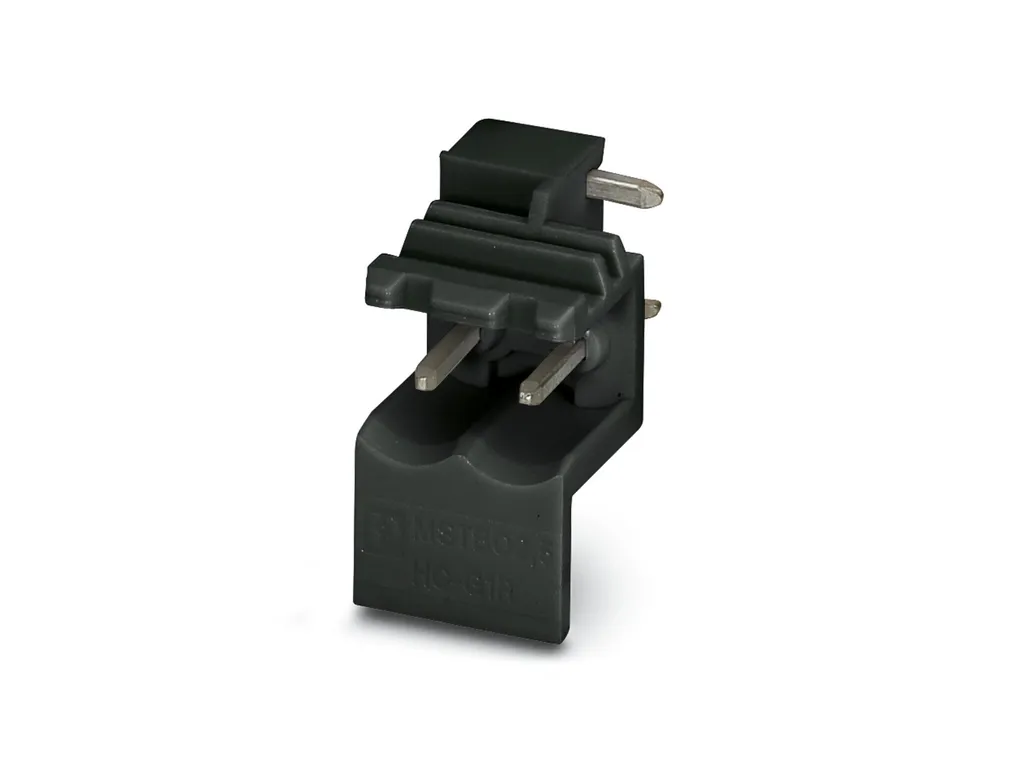

MSTBO 2,5/ 2-G1R THRR32 BK CR2 - PCB header
Cod. Articolo: 2201894

PCB headers, nominal cross section: 2.5 mm², color: black, nominal current: 16 A, rated voltage (III/2): 320 V, contact connection type: Pin, number of rows: 1, number of positions: 2, product range: MSTBO 2,5/..-G1R-THR, pitch: 5 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 2.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, locking: without, type of packaging: 32 mm wide tape, Product with pin output on left side

PHOENIX CONTACT 1077603

MSTBO 2,5/ 2-G1L KMGY AU - PCB header
Cod. Articolo: 1077603

PCB headers, color: light grey, contact surface: Gold, contact connection type: Pin, number of rows: 1, number of positions: 2, product range: MSTBO 2,5/..-G1L Au, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Orthogonal, locking: without, type of packaging: packed in cardboard, Product with pin output on left side

PHOENIX CONTACT 2202074

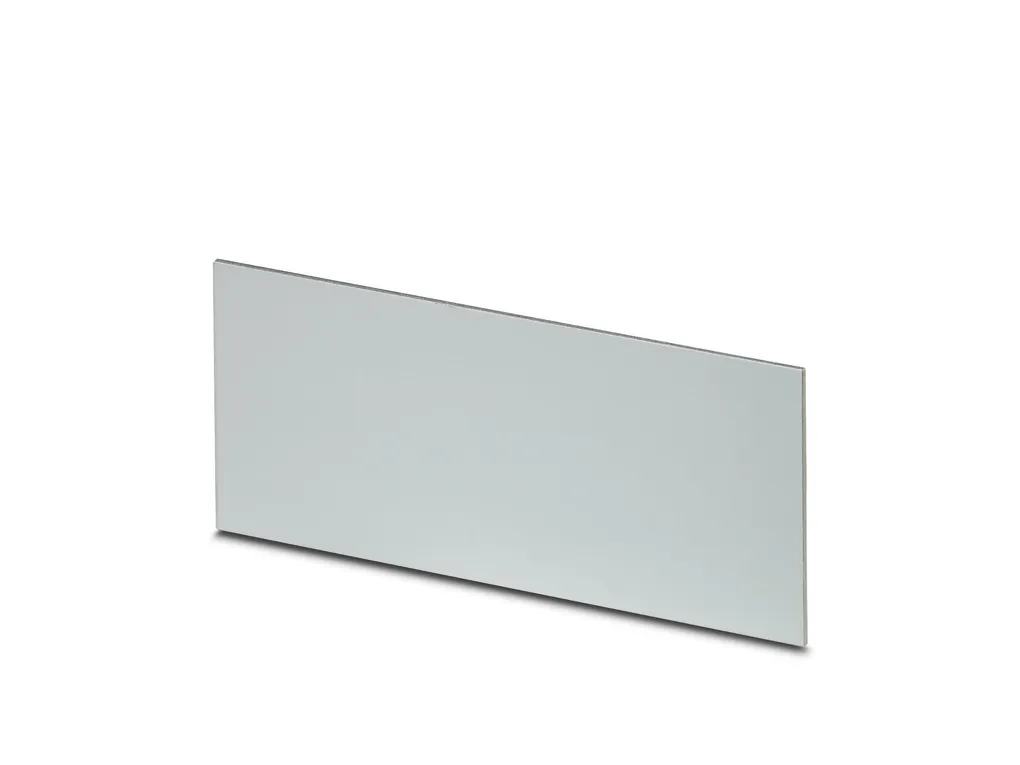

UM-ALU 4-100,5 FRONT 40 ALUSP - Front plate
Cod. Articolo: 2202074

Press-drawn section housings, Basic profile front plate, color: aluminum color, width: 101.8 mm, length: 40 mm, depth: 2 mm, recommended for UM-ALU 4-..COVER PA.. lateral elements
