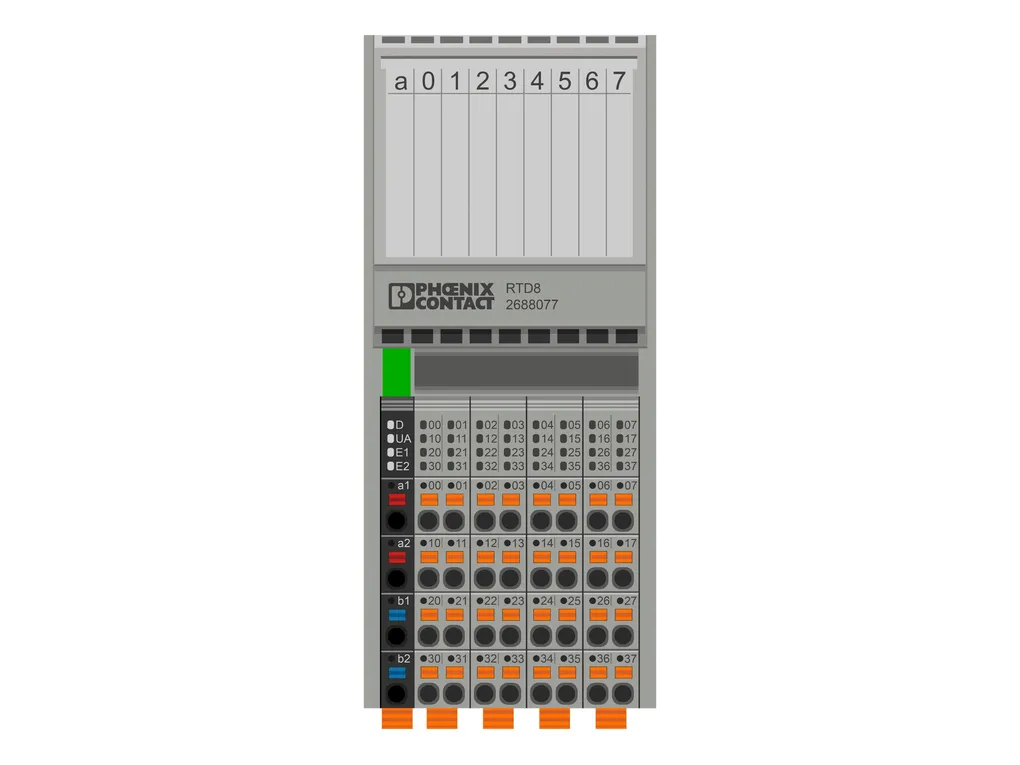

2688077 PHOENIX CONTACT - Technology Bsa

Tecnichal data

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3f783436b27c3846a361ee861b282789/-S204x204-FJPG Width: 53.6 mm Height: 126.1 mm Depth: 54 mm Note on dimensions: The depth applies when a TH35-7.5 DIN rail is used (in accordance with EN60715).
Interfaces	AxiolineFlocal bus Number of interfaces: 2 Connection method: Bus base module Transmission speed: 100 Mbps
System properties	Module Input address area: 16 Byte Output address area: 16 Byte Required parameter data: 20 Byte Required configuration data: 6 Byte
Input data	Analog Input name: Analog inputs Description of the input: Inputs for resistive temperature sensors Number of inputs: 8 (for resistance temperature detectors) Connection method: Push-in connection Connection technology: 2-, 3-, 4-conductor (shielded) A/D converter resolution: 24 bit Sensor types (RTD) that can be used: Pt, Ni, KTY, Cu sensors Data formats: IB IL, S7-compatible Measured value representation: 16 bits (15 bits + sign bit) Input filter time: 40 ms 60 ms 100 ms 120 ms (adjustable) Nominal value of the current sources: 1 mA (Pt 100, Ni 100, R_Lin 500 Ã©; pulse current, the specification is valid during the sampling phase) 210 µA (P t1000, Ni 1000, R_Lin 5000 Ã©; pulse current, the specification is valid during the sampling phase) Differential non-linearity: typ. 1ppm / ±0.0001% (in all ranges) Integral non-linearity: typ. 30ppm / ±0.003% (Pt 100) typ. 20ppm / ±0.002% (R_Lin 500Ã©) typ. 200ppm / ±0.02% (R_Lin 5000Ã©) Linear resistance measuring range: 0 Ã© ... 500 Ã© 0 kÃ© ... 5 kÃ© Protective circuit: Short-circuit protection, overload protection of the inputs Transient protection of inputs Transient protection of sensor supplies
Product properties	Type: block modular Product type: I/O component Product family: AxiolineF Mounting position: any (no temperature derating) Scope of delivery: including bus base module and AxiolineF connectors Insulation characteristics Overvoltage category: II (IEC 60664-1, EN60664-1) Pollution degree: 2 (IEC 60664-1, EN60664-1)
Electrical properties	Maximum power dissipation for nominal condition: 0.9 W Potentials Power consumption: typ. 0.94 W (at U_Bus and U_A (up to HW06)) typ. 0.59 W (at U_Bus and U_A (from HW07)) max. 1.5 W (at U_Bus and U_A (up to HW06)) max. 1.03 W (at U_Bus and U_A (from HW07)) Potentials: AxiolineF local bus supply (U Supply voltage: 5 VDC (via bus base module) Current draw: max. 180 mA (up to HW06) max. 85 mA (from HW07) typ. 115 mA (up to HW06) typ. 60 mA (from HW07) Power consumption: max. 900 mW (up to HW06) max. 425 mW (from HW07) typ. 580 mW (up to HW06) typ. 300 mW (from HW07) Potentials: Supply for analog modules (U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 25 mA typ. 15 mA (up to HW06) typ. 12 mA (from HW07) Power consumption: max. 0.6 W Protective circuit: Surge protection; electronic (35 V, 0.5 s) Reverse polarity protection; Polarity protection diode Transient protection; Suppressor diode Electrical isolation/isolation of the voltage ranges Test voltage: 5V supply of the local bus (U_Bus) / 24V supply (I/Os): 500 VAC, 50 Hz, 1 min. Test voltage: 5V supply of the local bus (U_Bus)/analog inputs: 500 VAC, 50 Hz, 1 min. Test voltage: 5V supply of the local bus (U_Bus) / functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: 24 V supply (I/O)/analog inputs: 500 VAC, 50 Hz, 1 min. Test voltage: 24V supply (I/O) / functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: Analog inputs/functional ground: 500 VAC, 50 Hz, 1 min.
Connection data	Connection technology Connection name: AxiolineF connector Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢AxiolineF: system and installationÃ¢ user manual. Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm AxiolineF connector Connection method: Push-in connection Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢AxiolineF: system and installationÃ¢ user manual. Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 60°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
Standards and regulations	Protection class: III (IEC 61140, EN61140, VDE0140-1)
Mounting	Mounting type: DIN rail mounting Mounting position: any (no temperature derating)

Technical Specs

ECLASS	ECLASS-11.0: 27242601 ECLASS-12.0: 27242601 ECLASS-13.0: 27242601
ETIM	ETIM 9.0: EC001596
UNSPSC	UNSPSC 21.0: 32151600
