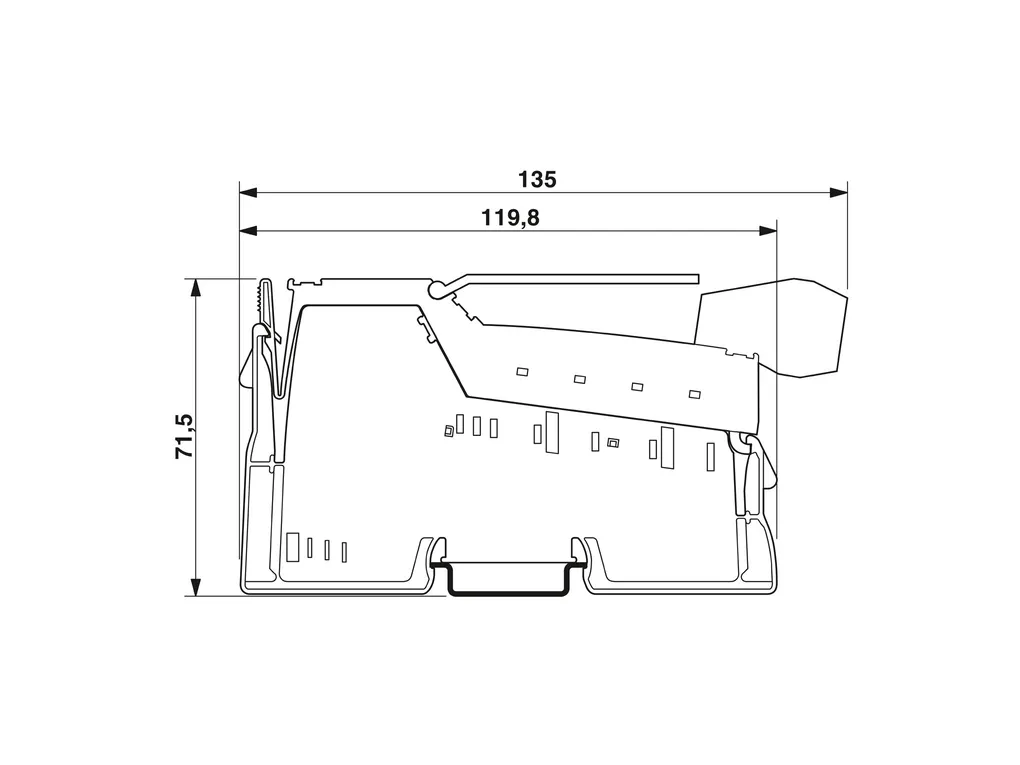

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/20a984302842e949b5ce7beb58df3766/-S204x204-FJPG Width: 24.4 mm Height: 135 mm Depth: 71.5 mm |
| Interfaces | Inline local bus Connection method: Bus base module Transmission speed: 500 kbps INTERFACE system bus Connection method: Inline shield connector Transmission physics: Single wire No. of channels: 1 Protocols supported: CAN Programming interface (S port) Connection method: IFS-USB-PROG-ADAPTER No. of channels: 1 Protocols supported: Serial |
| System properties | Local diagnostics Error messages via the bus: 9 V power supply faulty Group error message, INTERFACE system bus error Module ID code (dec.): 220 ID code (hex): DC Length code (hex): 1E Length code (dec): 30 Process data channel: 60 Byte Input address area: max. 60 Byte Output address area: max. 60 Byte Register length: 64 Byte Required parameter data: 1 Byte Required configuration data: 5 Byte |
| Product properties | Type: modular Product type: I/O component Product family: Inline Operating mode: Process data mode with up to 31 words; PCP with 1, 2, or 4 words |
| Electrical properties | Power dissipation: 1.285 W (Module) Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) Current draw: max. 78 mA typ. 66 mA Potentials: Main circuit supply (U Supply voltage: 24 VDC (via voltage jumper) Supply voltage range: 19.2 VDC ... 30 VDC Current draw: max. 300 mA typ. 141 mA Electrical isolation/isolation of the voltage ranges Test voltage: 24 V supply UM, bus, logic/INTERFACE interface: 500 VAC, 50 Hz, 1 min. Test voltage: 24V supply UM, bus, logic/functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: INTERFACE interface/functional ground: 500 VAC, 50 Hz, 1 min. |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (according to DINEN61131-2) Permissible humidity (storage/transport): 10 % ... 95 % (according to DINEN61131-2) |
| Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
| Mounting | Mounting type: DIN rail mounting |
| ECLASS | ECLASS-11.0: 27242608 ECLASS-12.0: 27242608 ECLASS-13.0: 27242608 |
| ETIM | ETIM 9.0: EC001604 |
| UNSPSC | UNSPSC 21.0: 32151600 |
