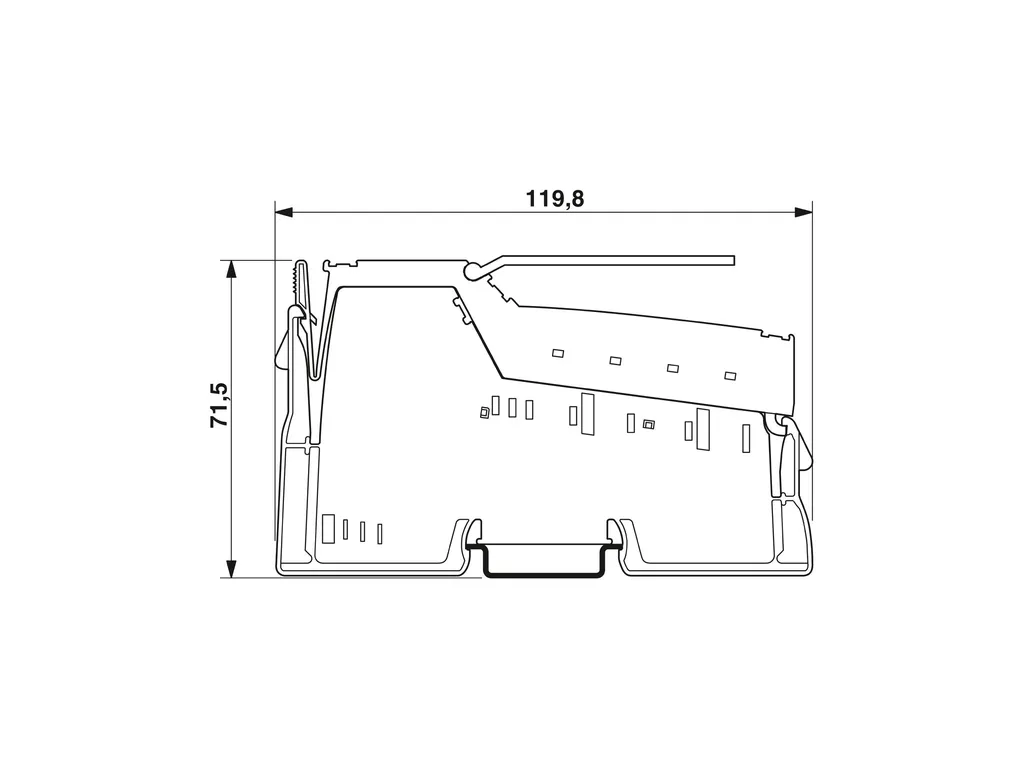

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2182c65be3908e489150116208cdf69e/-S204x204-FJPG Width: 48.8 mm Height: 119.8 mm Depth: 71.5 mm Note on dimensions: Housing dimensions |
| Interfaces | Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 2 Mbps |
| System properties | Module ID code (dec.): 189 ID code (hex): BD Length code (hex): 02 Length code (dec): 02 Process data channel: 32 bit Input address area: 0 Byte Output address area: 4 Byte Register length: 32 bit Required parameter data: 6 Byte Required configuration data: 4 Byte |
| Output data | Digital Output name: Digital outputs Connection method: Spring-cage connection Connection technology: 1-conductor Number of outputs: 32 Protective circuit: Overload protection, short-circuit protection of outputs; electronic Output voltage: 24 V (US - 1 V) Limitation of the voltage induced on circuit interruption: -45.8 V ... -15 V Maximum inrush current: max. 1.5 A (at nominal lamp load for 20ms) Output current: max. 500 mA (per channel) max. 8 A (Device) Nominal output voltage: 24 VDC Output voltage when switched off: max. 2 V Output current when switched off: max. 300 µA Nominal load, inductive: 12 VA (1.2 H, 48 é) Nominal load, lamp: 12 W Nominal load, ohmic: 12 W (48é) Maximum operating frequency with ohmic nominal load: max. 300 Hz (this switching frequency is limited by the data rate selected, the number of bus devices, the structure of the bus, the software used and the control or computer system used) Reverse voltage resistance to short pulses: Reverse voltage proof Behavior with overload: Auto restart Behavior with inductive overload: Output can be destroyed Behavior at voltage switch-off: The output follows the power supply without delay Overcurrent shut-down: min. 0.7 A Output current with ground connection interrupt when switched off: max. 25 mA |
| Product properties | Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connectors and marking fields No. of channels: 32 Operating mode: Process data operation with 2 words Diagnostics messages: Short-circuit or overload of the digital outputs Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module Insulation characteristics Overvoltage category: II (IEC 60664-1, EN60664-1) Pollution degree: 2 (IEC 60664-1, EN60664-1) |
| Electrical properties | No. of channels: 32 Potentials Power consumption: max. 3 W (Module, complete, HW00) max. 2.3 W (Module, complete, HW01 or later) Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) Current draw: max. 140 mA (HW 00) max. 30 mA (from HW01) Power consumption: max. 1.05 W (HW 00) max. 0.225 W (from HW01) Potentials: Segment circuit supply (U Supply voltage: 24 VDC (via voltage jumper) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 8 A Electrical isolation/isolation of the voltage ranges Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O): 500 VAC, 50 Hz, 1 min. Test voltage: 7.5V supply (bus logic)/functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: 24V supply (I/O) / functional ground: 500 VAC, 50 Hz, 1 min. |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing) |
| Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
| Mounting | Mounting type: DIN rail mounting |
| ECLASS | ECLASS-11.0: 27242604 ECLASS-12.0: 27242604 ECLASS-13.0: 27242604 |
| ETIM | ETIM 9.0: EC001599 |
| UNSPSC | UNSPSC 21.0: 32151600 |
