| Notes | Assembly note: Refer to the data sheet for the range in the download area. Recommendation: Material of contact pads for bus connector, galvanic gold (hard gold) |

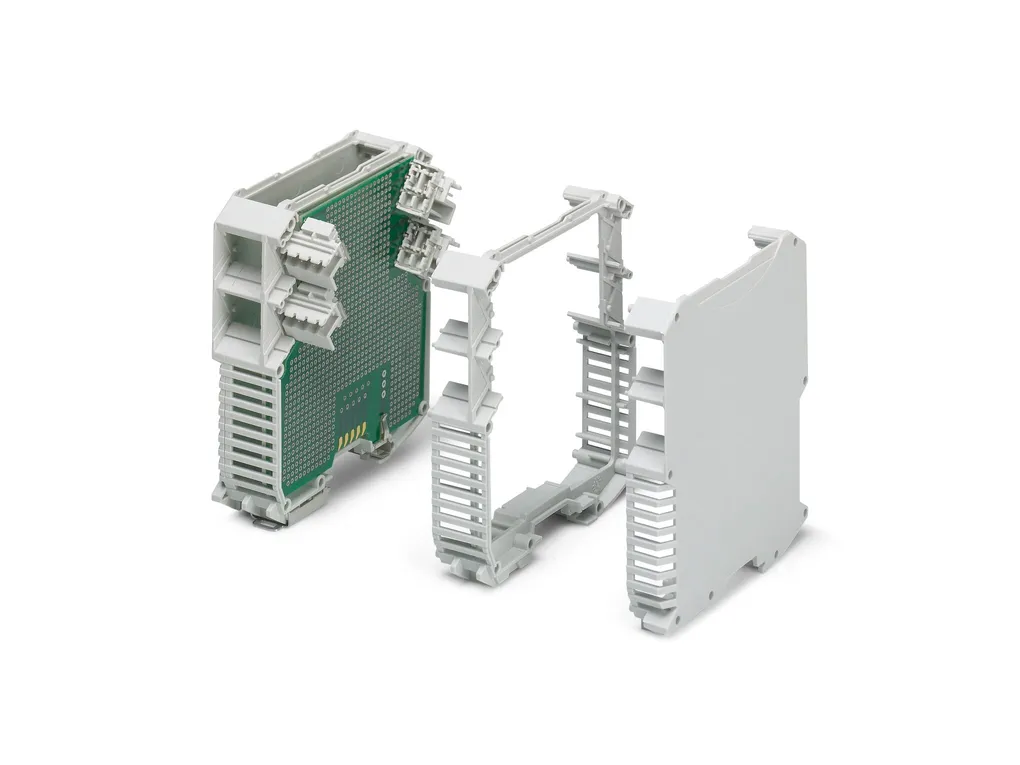

| Product properties | Product type: Housing half shells Housing type: DIN rail housing Housing series: ME-MAX Number of rows: 1 Type: Housing half shell (left), tall design Ventilation openings present: no |
| Dimensions | Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/22580/full/b1500?format=jpg Width: 6.3 mm Height: 99 mm Depth: 112.85 mm Depth from top edge of DIN rail: 107 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
| Material specifications | Color (Housing): light gray (RAL 7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Housing material: Polyamide Surface characteristics: untreated |
| Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40 °C ... 105 °C (depending on power dissipation) Ambient temperature (storage/transport): -40 °C ... 55 °C Ambient temperature (assembly): -5 °C ... 100 °C Relative humidity (storage/transport): 80 % |
| PCB data | Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm |
| Mounting | Mounting type: DIN rail mounting |
