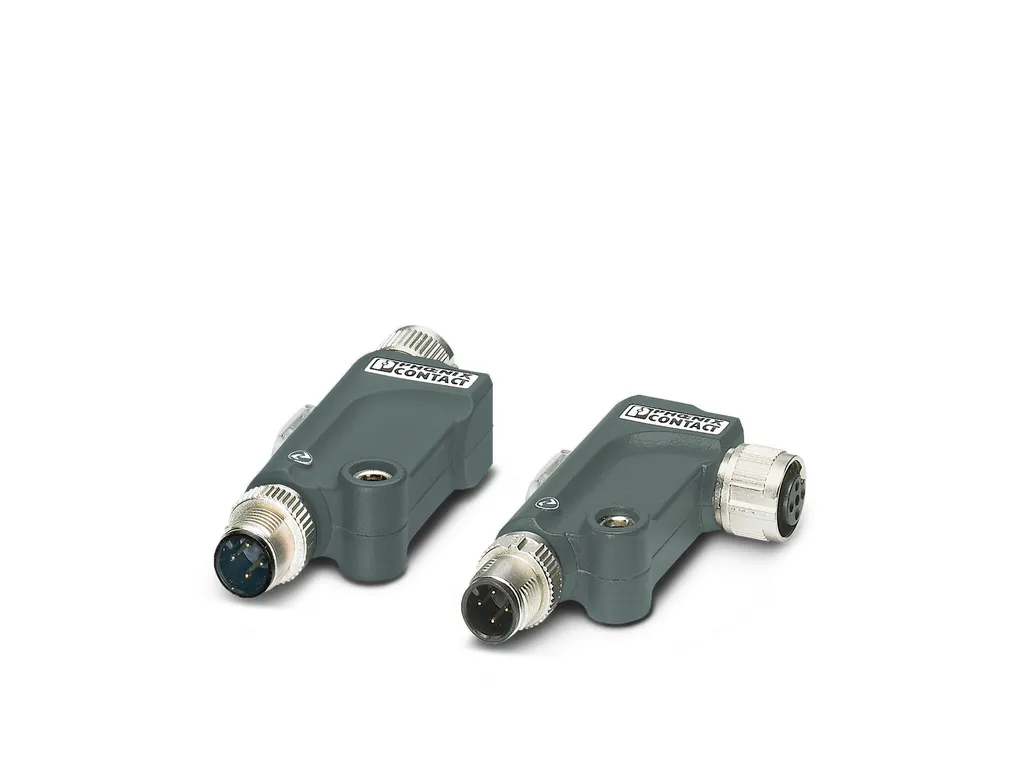

AXL E IOL AO1 U M12 R - Analog module
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |
Product properties | Type: Stand-Alone AxiolineE Angled Product type: Interface converter Product family: AxiolineE Diagnostics messages: Short circuit Message in the diagnostic code (in the IBIL format) Configuration invalid Message in the diagnostic code (in the IBIL format) Module faulty Message in the diagnostic code (in the IBIL format) Insulation characteristics Pollution degree: 2 |
Electrical properties | Supply: IO-Link Nominal voltage for I/O supply: 24 VDC (This supply voltage is provided via the IO-Link interface of the IO-Link master.) Nominal current for every IO-Link port: max. 100 mA Current consumption: typ. 16.5 mA ±15% (at 24 V DC) max. 135 mA Protective circuit: Reverse polarity protection Short-circuit protection Overload protection |
Input data | IO-Link Number of ports: 1 Connection method: M12 connector, A-coded Connection technology: 3-conductor Specification: V1.1.1 Reverse polarity protection: yes Cycle Time: min. 2 ms Process data update: 2 ms Amount of process data: 16 bit (Input data) 16 bit (Output data) |
Output data | Analog Output name: Analog output Connection method: M12 connector, A-coded Connection technology: 3-conductor Number of outputs: 1 (voltage) D/A converter resolution: 12 bit Data formats: IB IL, S7-compatible Voltage output signal: 0 V ... 10 V Load/output load voltage output: min. 2 ké Permissible cable length: max. 30 m (Shielded cable) |
Signaling | Diagnostic messages Diagnostics: Short circuit Message: Message in the diagnostic code (in the IBIL format) Diagnostic messagesâ Diagnostics: Configuration invalid Message: Message in the diagnostic code (in the IBIL format) Diagnostic messagesââ Diagnostics: Module faulty Message: Message in the diagnostic code (in the IBIL format) |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/65fd57f6da67f24496626511618a6a99/-S204x204-FJPG Width: 16.6 mm Height: 42 mm Depth: 66.5 mm |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 60°C Degree of protection: IP65/IP67 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 5 % ... 95 % Permissible humidity (storage/transport): 5 % ... 95 % |
Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
ECLASS | ECLASS-11.0: 27242601 ECLASS-12.0: 27242601 ECLASS-13.0: 27242601 |
ETIM | ETIM 9.0: EC001596 |
UNSPSC | UNSPSC 21.0: 32151600 |
