PHOENIX CONTACT 2700965
PHOENIX CONTACTNot available

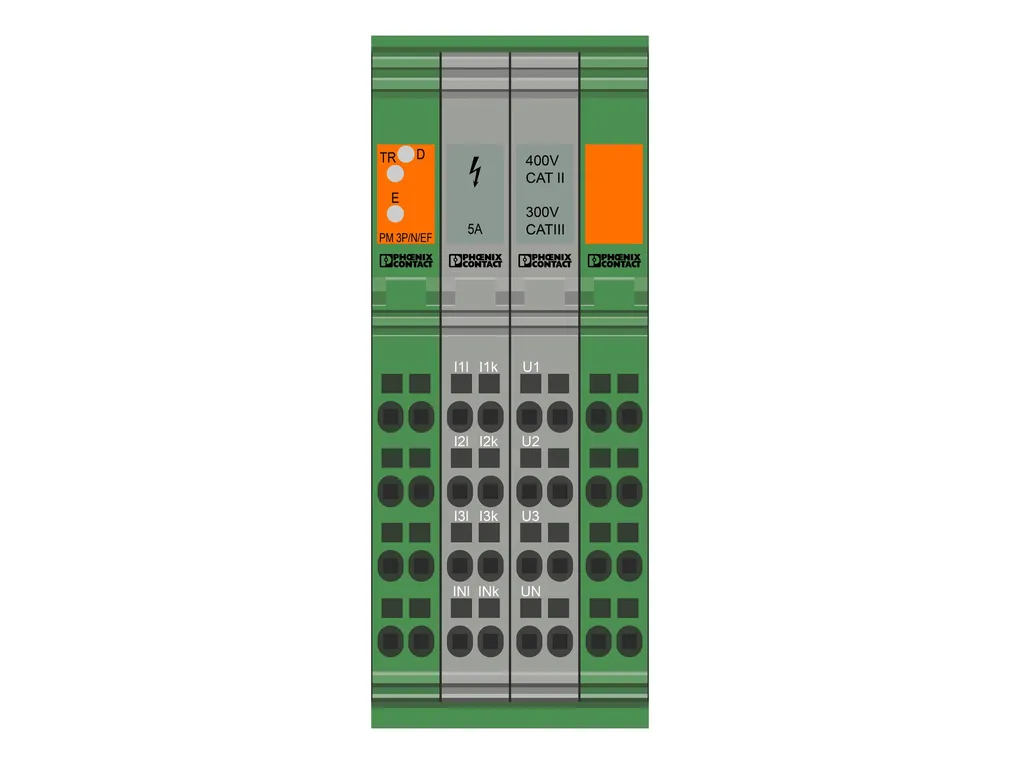

IB IL PM 3P/N/EF-PAC - Special function module

Inline power measurement terminal for direct measurement of AC currents up to 5A, including neutral conductor current and phase conductor voltages up to 400VAC (phase/neutral conductor) or 690VAC (phase/phase) complete with accessories (connectors and labeling fields)
Product Code: 2700965
Partner cod.: 2700965
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2182c65be3908e489150116208cdf69e/-S204x204-FJPG
Width: 48.8 mm
Height: 119.8 mm
Depth: 71.5 mm
Note on dimensions: Housing dimensions
InterfacesInline local bus
Number of interfaces: 2
Connection method: Inline data jumper
Transmission speed: 500 kbps
System propertiesModule
ID code (dec.): 220
ID code (hex): DC
Length code (hex): 0C
Length code (dec): 12
Process data channel: 192 bit
Input address area: 24 Byte
Output address area: 24 Byte
Register length: 28 Byte
Required parameter data: 29 Byte
Required configuration data: 5 Byte
Product propertiesType: modular
Product type: I/O component
Product family: Inline
Operating mode: Process data mode with 12 words, PCP with 2 words
Electrical propertiesMaximum power dissipation for nominal condition: 0.31 W
Potentials: Communications power (U
Supply voltage: 7.5 VDC (via voltage jumper)
Current draw: typ. 130 mA
Power consumption: typ. 1 W
Connection dataConnection technology
Connection name: Inline connector
Conductor connection
Connection method: Spring-cage connection
Conductor cross section rigid: 0.2 mm² ... 1.5 mm²
Conductor cross section flexible: 0.2 mm² ... 1.5 mm²
Conductor cross section AWG: 24 ... 16
Stripping length: 8 mm
Inline connector
Connection method: Spring-cage connection
Conductor cross section, rigid: 0.2 mm² ... 1.5 mm²
Conductor cross section, flexible: 0.2 mm² ... 1.5 mm²
Conductor cross section AWG: 24 ... 16
Stripping length: 8 mm
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -25°C ... 55°C
Degree of protection: IP20
Air pressure (operation): 80 kPa ... 106 kPa (up to 2000m above sea level)
Air pressure (storage/transport): 80 kPa ... 106 kPa (up to 2000m above sea level)
Ambient temperature (storage/transport): -25°C ... 85°C
Permissible humidity (operation): 10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing)
Standards and regulationsProtection class: III (IEC 61140, EN61140, VDE0140-1)
MountingMounting type: DIN rail mounting
Technical Specs
ECLASSECLASS-11.0: 27242605
ECLASS-12.0: 27242605
ECLASS-13.0: 27242605
ETIMETIM 9.0: EC001601
UNSPSCUNSPSC 21.0: 32151600
Description
Inline power measurement terminal for direct measurement of AC currents up to 5 A, including neutral conductor current and phase conductor voltages up to 400 V AC (phase/neutral conductor) or 690 V AC (phase/phase) complete with accessories (connectors and labeling fields)
