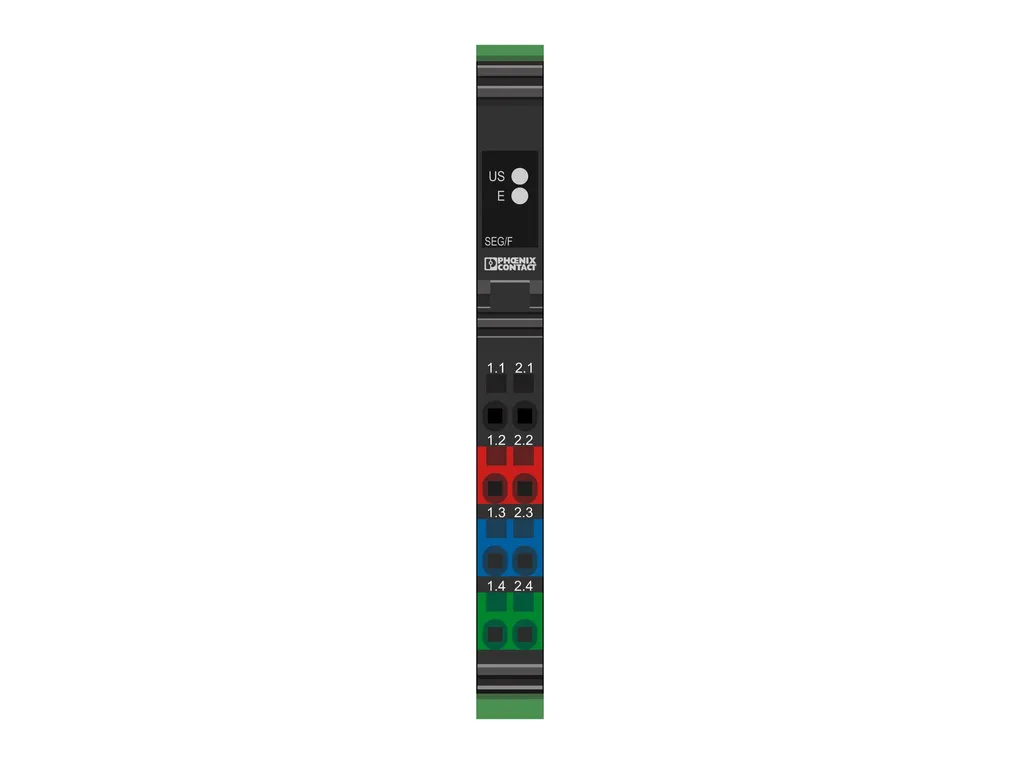

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/61847ea072ac2f4a94bf2299909bd975/-S204x204-FJPG Width: 12.2 mm Height: 119.8 mm Depth: 71.5 mm |
Interfaces | Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 500 kbps / 2 Mbps (Can be used in Inline stations with these transmission speeds) |
System properties | Module ID code (dec.): none ID code (hex): none Register length: 0 bit Required parameter data: 0 Byte Required configuration data: 0 Byte |
Product properties | Type: modular Product type: I/O component Product family: Inline Insulation characteristics Protection class: III (IEC 61140, EN61140, VDE0140-1) |
Electrical properties | Test section: 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 VAC 50 Hz 1 min. 5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 VAC 50 Hz 1 min. 7.5 V supply (bus logics)/24 V supply (I/O) 500 VAC 50 Hz 1 min. 24V supply (I/O) / functional ground 500 VAC 50 Hz 1 min. Protective circuit: Overload protection, short-circuit protection in the segment circuit; Fuse 5 x 20 with 6.3 A, slow-blowFuses with other values can also be used. The maximum fuse value is 8A.For fuses with a value greater than 2A, only slow-blow fuses may be used. Surge protection; Protective elements in the power terminal or the bus coupler Reverse polarity protection; Protective elements in the power terminal or the bus coupler Fuse: SI 5 x 20 6, 300 AT (in scope of delivery) Supply Communications power UL: 7.5 VDC Potentials: Main circuit supply (U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 8 A (nominal value) typ. 6 A (The terminal is supplied with a 6.3A slow-blow fuse. In the event of an increased total current in the potential jumpers UM and US, the circuit must be protected through the use of higher rated fuses (max. 8A, slow-blow).) Potentials: Segment circuit supply (U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) |
Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 55°C (Standard) -40°C ... 70°C (Extended, see section âTested successfully: use under extreme ambient conditionsâ in the data sheet.) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (according to DINEN61131-2) Permissible humidity (storage/transport): 10 % ... 95 % (according to DINEN61131-2) Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) GRP_Temperature class: T2 (-40°C...55°C, EN50155) |
Mounting | Mounting type: DIN rail mounting |
ECLASS | ECLASS-11.0: 27242610 ECLASS-12.0: 27242610 ECLASS-13.0: 27242610 |
ETIM | ETIM 9.0: EC001600 |
UNSPSC | UNSPSC 21.0: 32151600 |
