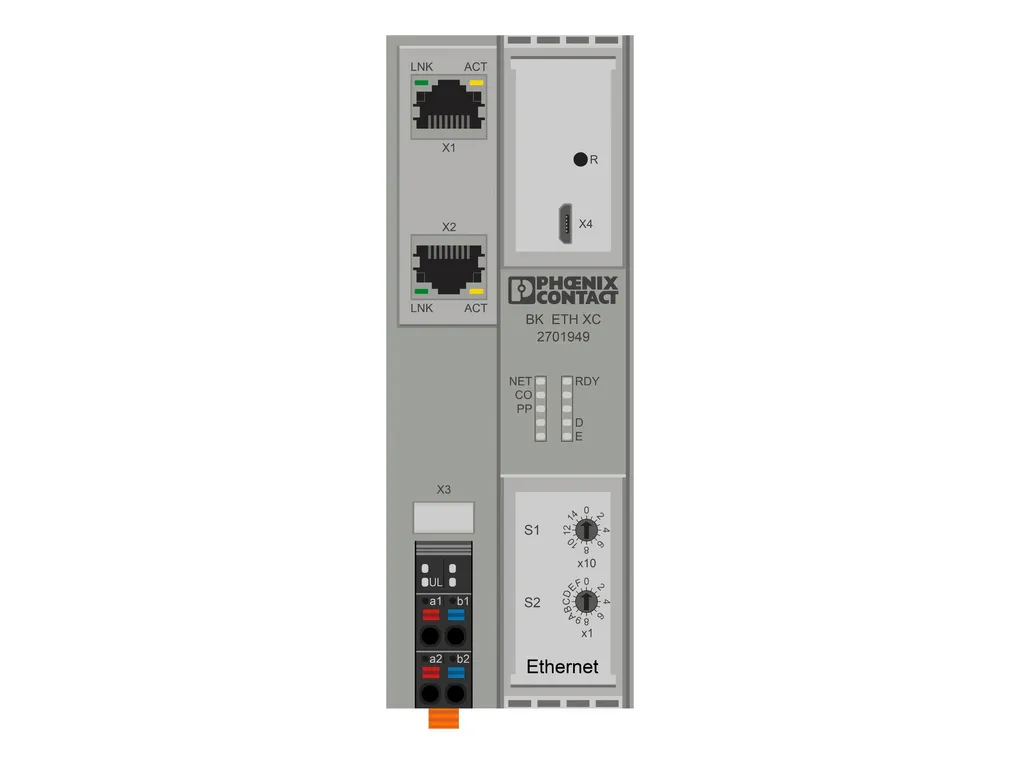

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/aad81a7f06bc4f4aa1cf74b52bb32fb4/-S204x204-FJPG Width: 45 mm Height: 126.1 mm Depth: 74 mm Note on dimensions: The depth applies when a TH35-7.5 DIN rail is used (in accordance with EN60715). |
| Interfaces | Modbus/TCP (UDP) Number of interfaces: 2 Connection method: RJ45 jack Note on the connection method: Auto negotiation and autocrossing Transmission speed: 10/100 Mbps (Half or full duplex mode (automatic detection, can be adjusted manually)) Transmission physics: Ethernet in RJ45 twisted pair AxiolineFlocal bus Number of interfaces: 1 Connection method: Bus base module Transmission speed: 100 Mbps Service Number of interfaces: 1 Connection method: USB type C (from HW02) Micro USB type B (up to HW01) |
| System properties | System limits Number of supported devices: max. 63 (per station) Number of local bus devices that can be connected: max. 63 |
| Product properties | Type: block modular Product type: I/O component Product family: AxiolineF Mounting position: any (observe temperature derating) Scope of delivery: including bus base module and AxiolineF connector Insulation characteristics Overvoltage category: II (IEC 60664-1, EN60664-1) Pollution degree: 2 (IEC 60664-1, EN60664-1) |
| Electrical properties | Potentials: Communications power U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 583 mA (2A at UBus, UL=24V, up to HW01) max. 670 mA (2.5A at UBus, UL=24V, HW02 or later) max. 583 mA (2.0A at UBus, UL=24V, applications with UL approval, use in zone2 potentially explosive area) Power consumption: max. 14 W (2A at UBus, UL=24V, up to HW01) max. 16 W (2.5A at UBus, UL=24V, HW02 or later) Protective circuit: Surge protection; electronic Reverse polarity protection; electronic Potentials: AxiolineF local bus supply (U Supply voltage: 5 VDC (via bus base module) Power supply unit: max. 2 A (up to HW01) max. 2.5 A (from HW02) max. 2 A (Applications with UL approval, use in zone2 potentially explosive area) Electrical isolation/isolation of the voltage ranges Test voltage: Ethernet interface 1 / Ethernet interface 2: 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 1 / 24 V communications voltage (UL) feed-in: 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 2 / 24 V communications voltage (UL) feed-in: 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 1 / functional ground: 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 2 / functional ground: 1500 VAC, 50 Hz, 1 min. Test voltage: 24 V communications voltage (UL) feed-in / functional ground: 500 VAC, 50 Hz, 1 min. |
| Connection data | Connection technology Connection name: AxiolineF connector Note on the connection method: Please observe the information provided on conductor cross sections in the âAxiolineF: system and installationâ user manual. Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm AxiolineF connector Connection method: Push-in connection Note on the connection method: Please observe the information provided on conductor cross sections in the âAxiolineF: system and installationâ user manual. Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 60°C (Standard, applications with UL approval, use in zone 2 potentially explosive area; mounting position: wall mounting on horizontal DIN rail) -25°C ... 55°C (Standard, applications with UL approval, use in zone 2 potentially explosive area; mounting position: any) -40°C ... 70°C (Extended, see section âTested successfully: use under extreme ambient conditionsâ in the data sheet.) Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing) |
| Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
| Approvals | ATEX Identification: ï II 3 G Ex ec IIC T4 Gc Certificate: UL 20 ATEX 2441X UKEX Identification: ï II 3 G Ex ec IIC T4 Gc Certificate: PxCIMA22UKEX2701949X IECEx Identification: Ex ec IIC T4 Gc Certificate: IECEx ULD 20.0026X UL, USA/Canada Identification: cULus Certificate: E238705 UL Ex, USA / Canada Identification: Class I, Zone 2, AEx ec IIC T4 ClassI, Division2, Groups A, B, C, D, T4 Ex ec IIC T4 Gc X Certificate: E366272 CCC/China-Ex Identification: Ex ec IIC T4 Gc Certificate: ï¬, 2021122309114456 |
| Mounting | Mounting type: DIN rail mounting Mounting position: any (observe temperature derating) |
| ECLASS | ECLASS-11.0: 27242608 ECLASS-12.0: 27242608 ECLASS-13.0: 27242608 |
| ETIM | ETIM 9.0: EC001604 |
| UNSPSC | UNSPSC 21.0: 32151600 |
