2702372 PHOENIX CONTACT - Technology Bsa

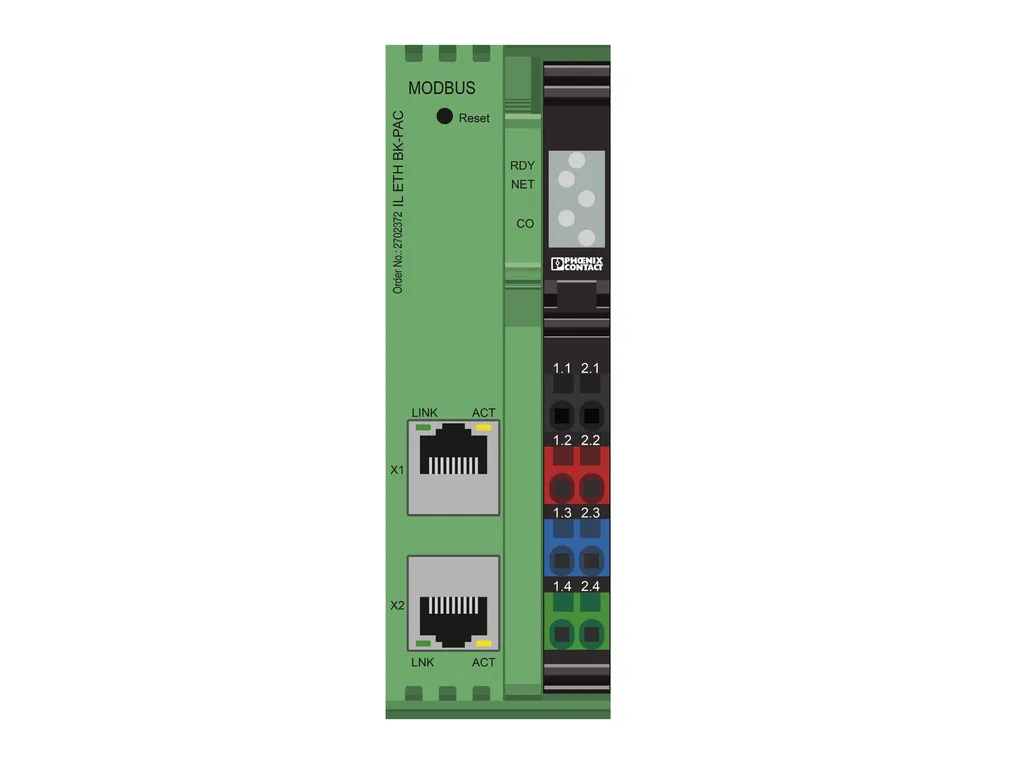

IL ETH BK-PAC - Bus coupler

Inline, Bus coupler, Modbus/TCP(UDP), RJ45 jack, transmission speed in the local bus:500 kbps / 2 Mbps, degree of protection: IP20, including Inline connector and labeling field

Product Code: 2702372

Partner cod.: 2702372

PHOENIX CONTACT

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f9b05418e27ef044a6ecb9c31b53ec53/-S204x204-FJPG Width: 40 mm Height: 119.4 mm Depth: 71.5 mm Note on dimensions: Housing dimensions
Interfaces	Modbus/TCP (UDP) Number of interfaces: 2 (Connected to functional ground with a capacitor) Connection method: RJ45 jack Note on the connection method: Auto negotiation and autocrossing Transmission speed: 10/100 Mbps (Half or full duplex mode (automatic detection, can be adjusted manually)) Transmission physics: Ethernet in RJ45 twisted pair Inline local bus Number of interfaces: 1 Connection method: Inline data jumper Transmission speed: 500 kbps / 2 Mbps (automatic detection, no combined system)
System properties	System limits Number of supported devices: max. 63 (per station) Number of local bus devices that can be connected: max. 63 Number of devices with parameter channel: max. 16 Number of supported branch terminals with remote bus branch: 3 Module ID code (hex): none
Product properties	Type: modular Product type: I/O component Product family: Inline Mounting position: any Scope of delivery: including Inline connector and labeling field Insulation characteristics Overvoltage category: II (IEC 60664-1, EN60664-1) Pollution degree: 2 (IEC 60664-1, EN60664-1)
Electrical properties	Potentials: Bus coupler supply U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 0.95 A (with max. number of connected I/O terminal blocks) typ. 74 mA (no local bus devices connected) Potentials: Communications power (U Supply voltage: 7.5 VDC Potentials: Supply of analog modules (U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Potentials: Main circuit supply (U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Potentials: Segment circuit supply (U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Electrical isolation/isolation of the voltage ranges Test voltage: Ethernet interface 1 / Ethernet interface 2: 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 1 / logic (U_BK, U_L, U_ANA): 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 1 / I/O (U_M, U_S): 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 1 / functional ground: 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 2 / logic (U_BK, U_L, U_ANA): 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 2 / I/O (U_M, U_S): 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 2 / functional ground: 1500 VAC, 50 Hz, 1 min. Test voltage: Logic (U_BK, U_L, U_ANA) / I/O (U_M, U_S): 500 VAC, 50 Hz, 1 min. Test voltage: Logic (U_BK, U_L, U_ANA) / functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: I/O (U_M, U_S) / functional ground: 500 VAC, 50 Hz, 1 min.
Connection data	Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing)
Standards and regulations	Protection class: III (IEC 61140, EN61140, VDE0140-1)
Mounting	Mounting type: DIN rail mounting Mounting position: any
