PSR-MC82-5NO-1NC-1DO-24DC-SC - Extension module
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)

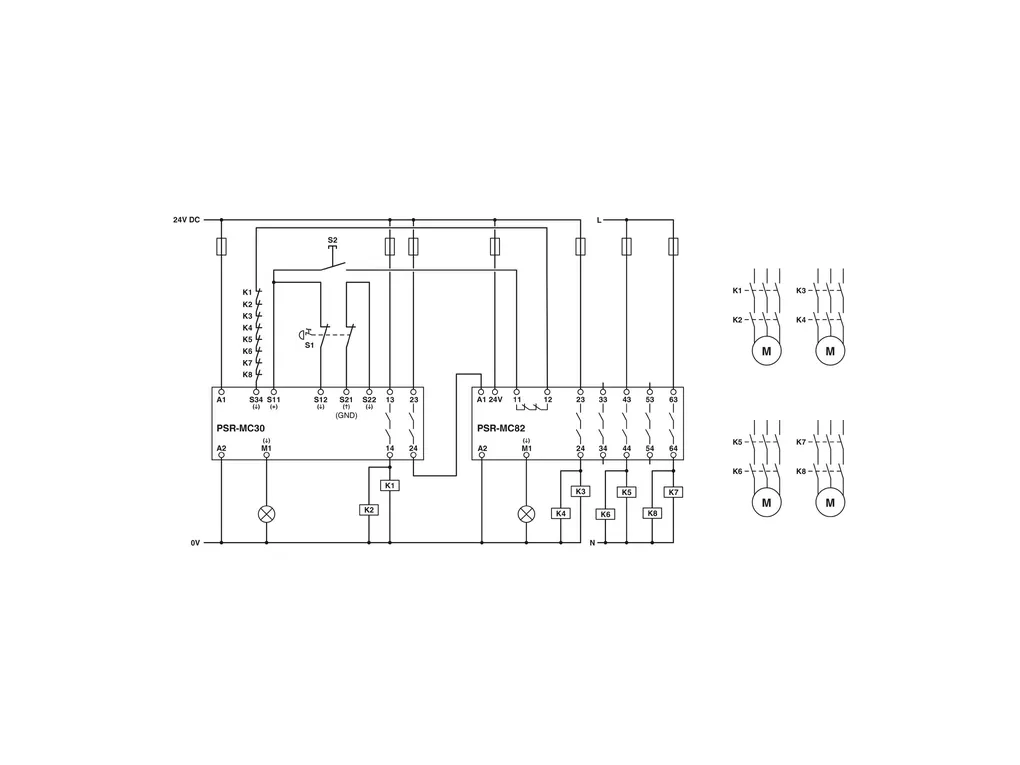

Product properties | Product type: Safety relays Product family: PSRmini Application: Extension module Relay type: Electromechanical relay with force-guided contacts in accordance with IEC/EN61810-3 Times Typical response time: < 50 ms (Monitored/manual and auto-start) Typ. starting time with Us: < 50 ms (when controlled via A1/A2) Typical release time: < 25 ms (when controlled via A1/A2) Recovery time: < 100 ms |
Electrical properties | Maximum power dissipation for nominal condition: 15.2 W (at US=30V, IL²=64A²) Nominal operating mode: 100% operating factor Air clearances and creepage distances between the power circuits Rated insulation voltage: 250 VAC Rated surge voltage/insulation: Supply Designation: A1/A2 Rated control circuit supply voltage US: 19.2 VDC ... 30 VDC 24 VDC -20%/+25% Rated control supply current IS: typ. 80 mA Power consumption at US: typ. 1.92 W Inrush current: typ. 125 mA (Ãt=7ms at Us) Filter time: 4 ms (at A1 in the event of voltage dips at Us) max. 1 ms (at A1/A2, test pulse width, blanking pulses/dark test) 5 ms (at A1/A2, test pulse rate, blanking pulses/dark test) Where test pulse width<1ms: test pulse rate=5xtest pulse width max. 1 ms (at A1/A2, test pulse width, switch-on pulses/light test) 10 ms (at A1/A2; test pulse rate; switch-on pulses/light test) Deactivate the switch-on pulses for safety applications. Protective circuit: Surge protection; Suppressor diode Reverse polarity protection; Universal diode |
Output data | Relay: Enabling current paths (23/24...63/64) Output description: safety-related N/O contacts Number of outputs: 5 (undelayed) Contact switching type: 5 enabling current paths Contact material: AgSnO2 Switching voltage: min. 5 V AC/DC max. 24 VDC (Enabling current path 23/24) max. 250 V AC/DC (all other enabling current paths, observe load curve) Switching capacity: min. 50 mW (5V / 10mA) Inrush current: min. 10 mA max. 20 A (â¤100ms) Switching capacity in accordance with IEC 60947-5-1: 3 A (24V (DC13)) 3 A (250V (AC15)) Limiting continuous current: 6 A (observe derating) Sq. Total current: 64 A2 (observe derating) Switching frequency: max. 0.5 Hz Mechanical service life: 10x 106 cycles Output fuse: 10 A gL/gG 6 A gL/gG (for low-demand applications) Relay: Confirmation current path (11/12) Output description: Safety-related N/C contacts Number of outputs: 1 (undelayed) Contact switching type: 1 confirmation current path Contact material: AgSnO Switching voltage: min. 5 V AC/DC max. 24 VDC Switching capacity: min. 50 mW Inrush current: min. 10 mA max. 100 mA Limiting continuous current: 100 mA Switching frequency: max. 0.5 Hz Mechanical service life: 10x 106 cycles Signal: M1 Output description: non-safety-related Number of outputs: 1 (digital, PNP) Voltage: typ. 23 VDC (US - 1 V) Current: max. 100 mA Maximum inrush current: 500 mA (Ãt=1ms at Us) Short-circuit protection: Yes |
Connection data | Connection technology pluggable: yes Conductor connection Connection method: Screw connection Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross-section AWG: 24 ... 12 Stripping length: 7 mm Screw thread: M3 |
Signaling | Status display: 2 x green LEDs |
Dimensions | Width: 17.5 mm Height: 112.2 mm Depth: 114.5 mm |
Material specifications | Housing material: Polyamide |
Characteristics | Safety data Stop category: 0 Safety data: ENISO13849 Category: 4 (In conjunction with suitable evaluating device) Performance level (PL): e (In conjunction with suitable evaluating device) Safety data: IEC 61508 - High demand Safety Integrity Level (SIL): 3 (In conjunction with suitable evaluating device) Safety data: IEC 61508 - Low demand Safety Integrity Level (SIL): 3 (In conjunction with suitable evaluating device) Safety data: ENIEC 62061 Safety Integrity Level (SIL): 3 (In conjunction with suitable evaluating device) |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Min. degree of protection of inst. location: IP54 Ambient temperature (operation): -20°C ... 60°C (observe derating) Ambient temperature (storage/transport): -40°C ... 80°C Maximum altitude: max. 2000 m (Above sea level) Max. permissible humidity (storage/transport): 75 % (on average, 85% infrequently, non-condensing) Max. permissible relative humidity (operation): 75 % (on average, 85% infrequently, non-condensing) Shock: 15g (In the event of stress caused by shock, contact reactions are possible for up to 6ms.) Vibration (operation): 10Hz...150Hz, 2g (In the event of stress caused by vibration, contact reactions are possible for up to 1ms.) |
Approvals | CE Identification: CE-compliant |
Standards and regulations | Air clearances and creepage distances between the power circuits Standards/regulations: EN60947-1 |
Mounting | Mounting type: DIN rail mounting Assembly instructions: See derating curve Mounting position: vertical or horizontal Connection method: Screw connection |
ECLASS | ECLASS-11.0: 27371819 ECLASS-12.0: 27371819 ECLASS-13.0: 27371819 |
ETIM | ETIM 9.0: EC001449 |
UNSPSC | UNSPSC 21.0: 39122200 |
