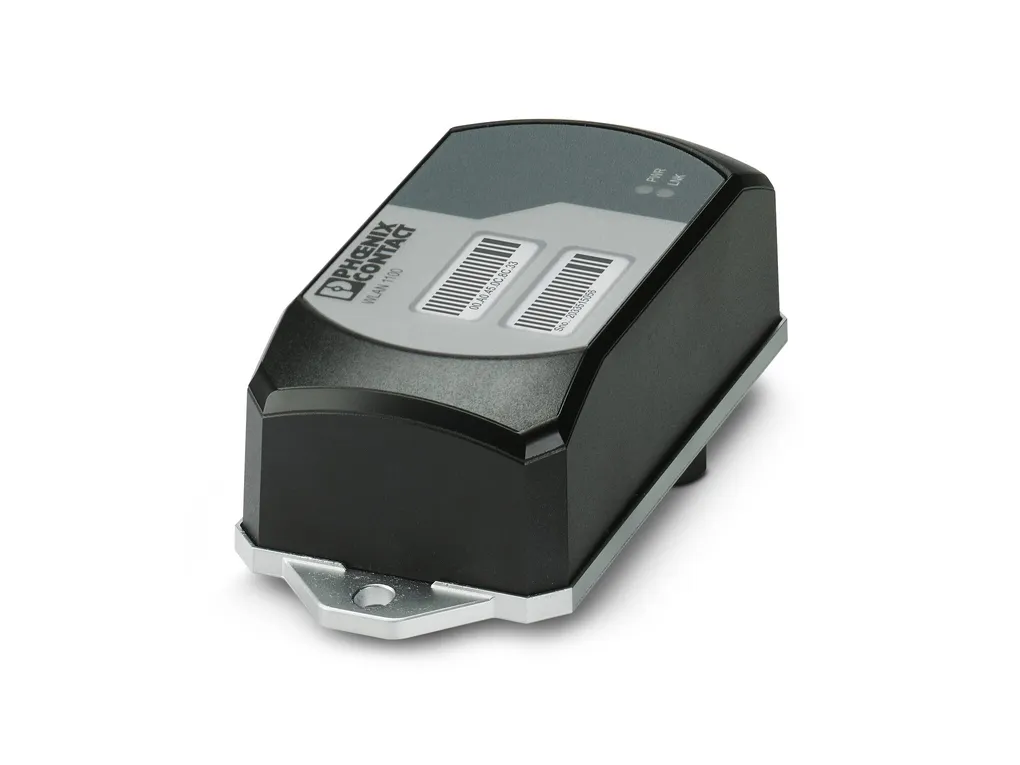

FL WLAN 1100 - Wireless module

WLAN access point, client with two internal antennas (MIMO) for single-hole mounting, IP54, WLAN 802.11 a, b, g, n, frequency: 2.4GHz, 5GHz (incl. DFS channels), connections: COMBICON 9...32VDC, RJ45: for LAN, web, http/https, Command Line Interface

Product Code: 2702534

Partner cod.: 2702534

PHOENIX CONTACT

Product properties	Type: Stand-Alone Product type: Wireless module Insulation characteristics Overvoltage category: none Pollution degree: 2 Wireless card Number: 1 Type: IEEE 802.11 a/b/g/n 2.4GHz and 5GHz to 300 Mbps Assembly instructions: Permanently installed
Electrical properties	Supply: Module electronics Connection technology: COMBICON Connection method: Push-in spring connection Note on the connection method: Recommended conductor cross section: 0.75 mm² Recommended ferrule: connection length 10 mm Recommended crimping pliers: trapezoidal or square Designation: 1966101 FMC 1,5/ 3-STF-3,5 Number of positions: 3 Cross section range AWG: 24 ... 16 (Use copper wires rated 75° C (UL)) Supply voltage: 24 VDC (SELV) Supply voltage range: 18 VDC ... 32 VDC (PELV/SELV) 9 VDC ... 32 VDC (PELV/SELV (from HW version 05)) Supply current: typ. 120 mA (at 24 V DC) Current consumption: max. 250 mA (at 18 V DC) max. 400 mA (at 9 V DC)
Connection data	1966101 FMC 1,5/ 3-STF-3,5 Connection method: Push-in spring connection Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 10 mm
Interfaces	Antenna Number: 2 Connection method: permanently installed Note on the connection method: MIMO Gain: 5 dBi Functions Operating modes: Access Point / Client Adapter / Repeater Configuration: Web-based management, automated CLI Quality of service (QoS): Yes Security: 802.11i WPA PSK (preshared key) WPA2 AES TKIP MAC filter Supports 802.1X/RADIUS Wireless licenses: EU, more countries in e-shop Country support: Belgium Bulgaria Denmark Germany Estonia Finland France Greece Great Britain Ireland Italy Latvia Liechtenstein Lithuania Luxembourg Malta Netherlands Norway Austria Poland Portugal Romania Sweden Switzerland Slovakia Slovenia Spain Czech Republic Hungary Cyprus (rep.) China Japan South Korea Thailand Brazil Russia Ethernet (RJ45) Number of interfaces: 1 Connection method: RJ45 Note on the connection method: Auto negotiation and autocrossing Transmission speed: 10/100 Mbps Transmission physics: Copper Transmission length: 100 m (per segment) No. of channels: 1 (RJ45 ports) Wireless Designation: Wireless LAN Antenna connection method: (Internal) Frequency band: 2.4 GHz 5 GHz Wireless standard: WLAN IEEE 802.11 a b g n Transmission power: max. 20 dBm (EIRP) Number of wireless interfaces: 1 IEEE 802. 11 a/b/g/n Wireless modules that can be connected: 10 (In Access Point mode max. 2 SSIDs)
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c9b6278ff7978e438782d302c8238719/-S204x204-FJPG Width: 62.8 mm Height: 36.5 mm Depth: 113.2 mm Note on dimensions: Outside dimensions
Material specifications	Color: black Material base plate: Die-cast zinc, nickel-plated Housing material: Polycarbonate, PC
Environmental and real-life conditions	Ambient conditions Degree of protection: IP54 Ambient temperature (operation): 0°C ... 60°C Note: Degree of protection when installed Air pressure (operation): 800 hPa ... 1080 hPa (up to 2000m above sea level) Air pressure (storage/transport): 660 hPa ... 1080 hPa (up to 3500m above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
EMC data	Electrostatic discharge Standards/regulations: EN61000-4-2 Electrostatic dischargeÃ¢ Contact discharge: ± 4 kV Indirect discharge: ± 6 kV Electromagnetic HF field Standards/regulations: EN61000-4-3 Electromagnetic HF fieldÃ¢ Frequency range: 80 MHz ... 1000 MHz 1000 MHz ... 6000 MHz Test field strength: 10 V/m 3 V/m Fast transients (burst) Standards/regulations: EN61000-4-4 Fast transients (burst)Ã¢ Comments: ±2.2kV Surge current load (surge) Standards/regulations: EN61000-4-5 Surge current load (surge)Ã¢ Signal: ± 0.5 kV (symmetrical) ± 1 kV (asymmetrical) Conducted interference Standards/regulations: EN61000-4-6 Conducted interferenceÃ¢ Frequency range: 0.15 MHz ... 80 MHz Voltage: 10 V Emitted interference Standards/regulations: EN55022 Test result: ClassB
Mounting	Mounting type: Single-hole mounting Assembly instructions: Internal antenna
