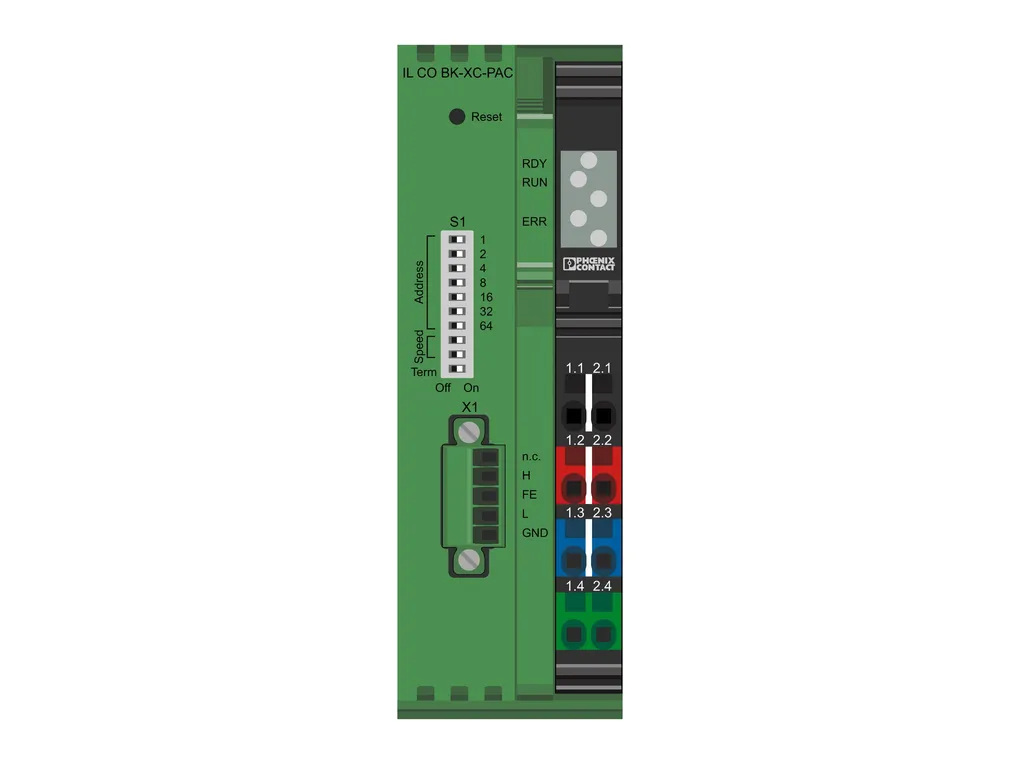

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f9b05418e27ef044a6ecb9c31b53ec53/-S204x204-FJPG Width: 40 mm Height: 119.4 mm Depth: 71.5 mm Note on dimensions: Housing dimensions |
| Interfaces | CANopen Number of interfaces: 1 Connection method: MINI COMBICON Number of positions: 5 Transmission speed: 1 Mbps, 800 kbps, 500 kbps, 250 kbps, 125 kbps, 50 kbps, 20 kbps, 10 kbps (Can be set via DIP switch or automatic detection) Inline local bus Number of interfaces: 1 Connection method: Inline data jumper Transmission speed: 500 kbps / 2 Mbps (automatic detection, no combined system) Fieldbus: Local bus gateway Max. number of local bus devices: 63 (Consider the logic current consumed by the devices) |
| System properties | System limits Number of supported devices: max. 63 (per station) Number of local bus devices that can be connected: max. 63 Number of devices with parameter channel: max. 16 Number of supported branch terminals with remote bus branch: 0 Module ID code (hex): none |
| Product properties | Type: modular Product type: I/O component Product family: Inline Scope of delivery: including network connector, Inline connector, and marking field Diagnostics messages: CRC error Message about the emergency object I/O error Message about the emergency object Power error Message about the emergency object Module change errors Message about the emergency object Inactive local bus Message about the emergency object Inline connection error Message about the emergency object Faulty Inline cycles Message about the emergency object |
| Electrical properties | Potentials Power consumption: typ. 1.3 W (entire device) Potentials: Bus coupler supply U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 0.9 A (with max. number of connected I/O terminal blocks) typ. 51 mA (no local bus devices connected) Potentials: Communications power (U Supply voltage: 7.5 VDC Power consumption: typ. 1.3 W (entire device) Potentials: Supply of analog modules (U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Potentials: Main circuit supply (U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Potentials: Segment circuit supply (U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C (Standard) -40°C ... 70°C (Extended, see section “Tested successfully: use under extreme ambient conditions†in the data sheet.) Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing) |
| Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
| Mounting | Mounting type: DIN rail mounting |
| ECLASS | ECLASS-11.0: 27242608 ECLASS-12.0: 27242608 ECLASS-13.0: 27242608 |
| ETIM | ETIM 9.0: EC001604 |
| UNSPSC | UNSPSC 21.0: 32151600 |
