2702659 PHOENIX CONTACT - Technology Bsa

Tecnichal data

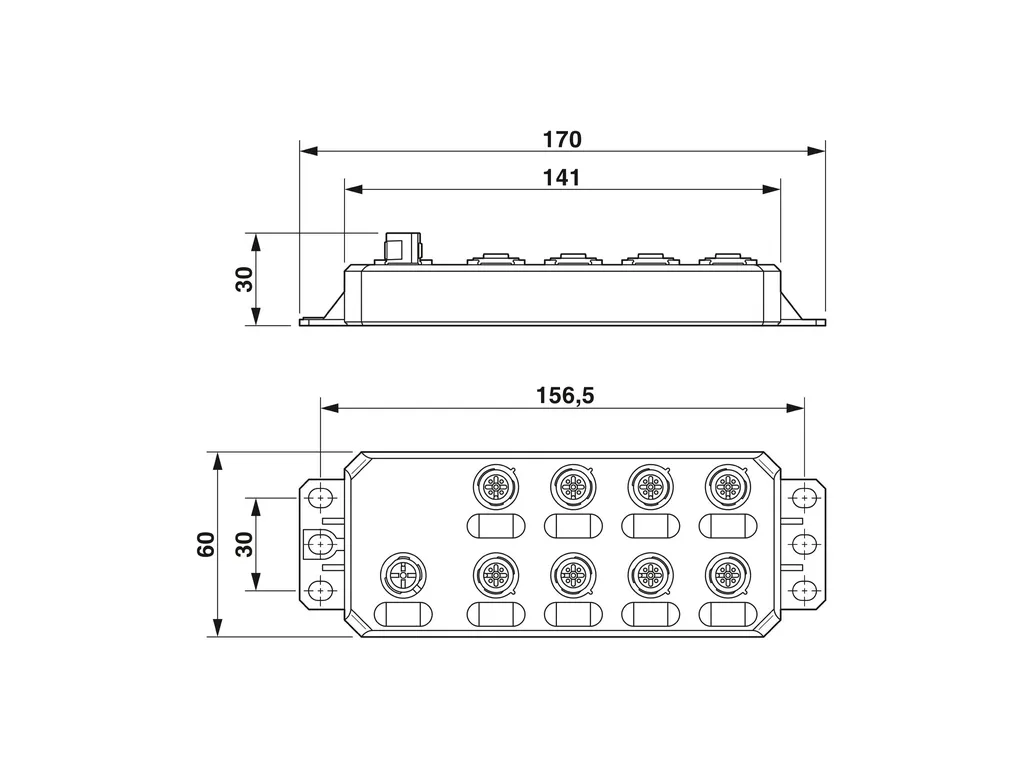

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2b2eb0c33edfa2498509f0333c695851/-S204x204-FJPG Width: 60 mm Height: 141 mm Depth: 20 mm Note on dimensions: The height is 170 mm including fixing clips. The depth is 30 mm including the connector.
Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area
Material specifications	Housing material: Pocan^® Color: anthracite grey RAL 7016
Input data	IO-Link Number of ports: 1 Connection method: M12 connector, A-coded Connection technology: 5-conductor Port type: Class B Specification: V1.1.2 Reverse polarity protection: yes Transmission speed: 230.4 kbps (COM3) Cycle Time: < 1 ms Process data update: < 1 ms Amount of process data: 16 bit (Output data)
Output data	Digital Output name: Digital outputs Connection method: M12 connector Connection technology: 3-conductor Number of outputs: 8 Protective circuit: Overload protection, short-circuit protection of outputs; Electronic Output voltage: 24 VDC Limitation of the voltage induced on circuit interruption: -28 V ... -15 V Output current: max. 500 mA (per port) max. 4 A (per device) Nominal output voltage: 24 VDC (from voltage U_A) Load min.: 10 kÃ© Output voltage when switched off: max. 1 V Output current when switched off: max. 300 µA Nominal load, inductive: max. 12 VA (1.2 H, 48 Ã©, with nominal voltage) Nominal load, lamp: max. 12 W (at nominal voltage) Nominal load, ohmic: max. 12 W (48 Ã©, with nominal voltage) Switching frequency: max. 1000 per second max. 1 per second (with inductive load) max. 16 per second (with nominal lamp load) Reverse voltage resistance to short pulses: limited protection up to 0.5 A for 1 s Behavior with overload: Auto restart Behavior with inductive overload: Output can be destroyed Signal delay: max. 100 µs (when switched on) max. 100 µs (when switched off, with at least 50 mA load current) Overcurrent shut-down: as of 0.7 A Output current with ground connection interrupt when switched off: < 1 mA
Product properties	Type: Stand-Alone Product type: I/O component Product family: AxiolineE
Electrical properties	Supply: IO-Link Designation: IO-Link port supply (L+) Nominal voltage for I/O supply: 24 VDC (Provided via the IO-Link interface of the IO-Link master.) Supply voltage range: 20 VDC ... 30 VDC (including all tolerances, including ripple) Nominal current per device: approx. 15 mA Permissible cable length: max. 20 m Protective circuit: Reverse polarity protection; yes Supply: Actuators Designation: Supply of actuators (U_A) Supply voltage: 24 VDC (Nominal voltage) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current consumption: max. 500 mA (per port) max. 4 A (Device dependent; observe the current of the IO-Link master that is made available via U_A.) Electrical isolation/isolation of the voltage ranges Test voltage: 24 V supply (logic supply)/24 V supply (actuator supply): 500 VAC, 50 Hz, 1 min. Test voltage: 24 V supply (logic supply) / FE: 500 VAC, 50 Hz, 1 min. Test voltage: 24 V supply (actuator supply)/FE: 500 VAC, 50 Hz, 1 min.
Connection data	Connection method: M12 connector Note on the connection method: in accordance with IEC 61076-2-101, M12 fast connection technology (SPEEDCON)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 60°C Degree of protection: IP65/IP67 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 70°C Permissible humidity (operation): 5 % ... 95 % Permissible humidity (storage/transport): 5 % ... 95 %
Standards and regulations	Protection class: III (IEC 61140, EN61140, VDE0140-1)
Mounting	Mounting type: Wall mounting

Technical Specs

ECLASS	ECLASS-11.0: 27242604 ECLASS-12.0: 27242604 ECLASS-13.0: 27242604
ETIM	ETIM 9.0: EC001599
UNSPSC	UNSPSC 21.0: 32151600

Description

Axioline E, Digital output device, Digital outputs: 8, 24 V DC, connection method: 3-wire, Plastic housing, degree of protection: IP65/IP67
