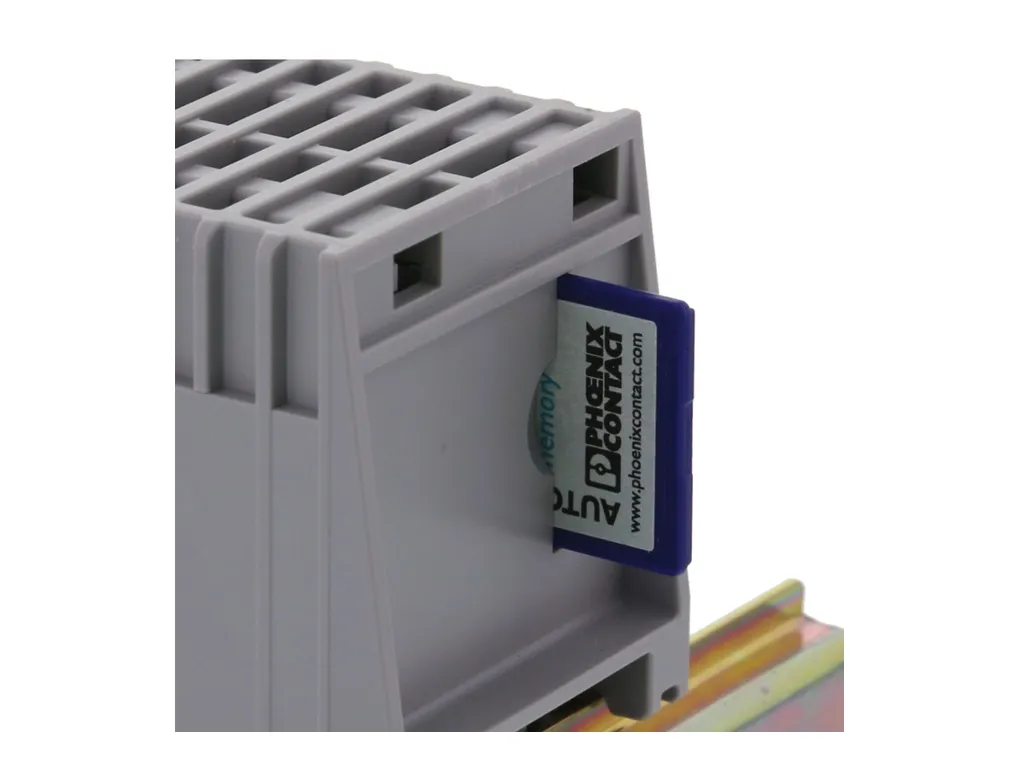

2702981 PHOENIX CONTACT - Technology Bsa

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fc507777022a9b4f9670e90d51e0df5b/-S204x204-FJPG Width: 45 mm Height: 130 mm Depth: 115 mm
Notes	General: Support by phone or on-site (fee is charged)
Material specifications	Housing material: Polycarbonate fiber reinforced
Mounting	Mounting type: DIN rail mounting
Interfaces	Ethernet (RJ45) Connection method: RJ45 Note on the connection method: Auto negotiation and autocrossing Transmission speed: 10/100/1000 Mbps Transmission physics: Copper Transmission length: 100 m (per segment) Signal LEDs: Data receive, link status No. of channels: 4 (RJ45 ports) Ethernet (SFP) Number of interfaces: 2 Connection method: SFP Transmission speed: 100/1000 Mbps (full duplex) Transmission physics: Depending on the SFP module Transmission length: up to 80 km (Depending on the fiber/SFP module used) Signal LEDs: Data receive, link status No. of channels: 2 (SFP ports) Ethernet (combo) Number of interfaces: 2 Connection method: SFP/RJ45 Note on the connection method: Auto negotiation and autocrossing Transmission speed: 10/100/1000 Mbps (full duplex) Transmission physics: Depending on the SFP module Transmission length: up to 80 km (Depending on the fiber/SFP module used) Signal LEDs: Data receive, link status No. of channels: 2 (Combo ports)
Output data	Digital Output name: Alarm output
Product properties	Type: Book type Product type: Switch Product family: Managed NAT Switch 2000 MTTF: 362.94 Years (SN29500 standard, temperature25°C, operating cycle21%) 158.13 Years (SN29500 standard, temperature40°C, operating cycle34.25%) 19.77 Years (SN29500 standard, temperature70°C, operating cycle100%) Special properties: 1:1-NAT, Virtual NAT, IP-Masquerading Signal delay: Ã¢¥ 1.9 µs (Store-and-Forward mode, 10/100/1000Mbps, depending on the frame size) Insulation characteristics Protection class: III (VDE0106) Degree of pollution: 2 Switch functions Diagnostic functions: RMON History LLDP (Link Layer Discovery Protocol) SNMP-Traps N:1-Portmirroring ACD (Address Conflict Detection) SysLog CRC-Surveillance Basic functions: Store-and-forward switch, complies with IEEE802.3 Signal contact control voltage: typ. 24 VDC NAT functions: 1:1-NAT Virtual-NAT IP-Masquerading Port forwarding PROFINET conformance class: Conformance-Class B PROFINET device function: PROFINET device Filter functions: Quality of Service (8 priority classes) Class of Service DiffServ/DSCP Port-Priorisierung VLAN (up to 32 VLANs) IGMP Snooping/Querier (v1/v2) Auto-Query-Port Extended Multicast Filtering IP parameterization: DHCP-Client DHCP Option 82 (Relay Agent) DHCP server (pool-based, port-based) BootP DCP (Discovery and Configuration Protocol) MAC address table: 8k Management: Web-based management (HTTP/HTTPS) Role-based user management (LDAP, RADIUS) SNMPv1/v2/v3 Command Line Interface (Telnet, SSH) Redundancy: MRP (Media Redundancy Protocol) RSTP (Rapid Spanning Tree Protocol) FRD (Fast Ring Detection) Large Tree Support LACP (Link Aggregation Control Protocol) PROFINET S2 system redundancy Status and diagnostic indicators: LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link/Activity and Speed) Additional functions: Jumbo frames (max. 9,600bytes) Time synchronization: SNTP (Simple Network Time Protocol) Security functions Port security: MAC-based, RADIUS (IEEE 802.1X), MAC Authentication Bypass Basic functions: Store-and-forward switch, complies with IEEE802.3
Electrical properties	Local diagnostics: US1/2 Supply voltage US1, US2 Green LED FAIL Div. LED red LINK Link status Green LED Maximum power dissipation for nominal condition: 9 W (At U_S = 12 V DC and 70°C ambient temperature) Test voltage: 500 VDC Test section: for one minute 500 VDC Transmission medium: Copper FO Supply Supply voltage (DC): 24 VDC (redundant) Supply voltage range: 12 VDC ... 57 VDC Power supply connection: via COMBICON, max. conductor cross section 1.5 mm² Residual ripple: 3.6 V_PP (within the permitted voltage range) Max. current consumption: 1.5 A (U_S = Min, T_amb = Max, DO_I = Max) Typical current consumption: 290 mA (at U_S = 24VDC and 25°C ambient temperature) Current consumption: 290 mA Function Signal contact control voltage: typ. 24 VDC
Connection data	Connection method: Screw connection Note on the connection method: Use only copper connecting cables providing the permitted temperature range (-40°C ... 75°C). Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 7 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing) Shock (operation): 30g (EN60068-2-27) Vibration (operation): in acc. with IEC 60068-2-6: 5g, 150 Hz Air pressure (operation): 80 kPa ... 110 kPa up to 2000m above mean sea level (Without derating) Air pressure (storage/transport): 79 kPa ... 108 kPa up to 2000m above mean sea level (Without derating)
Standards and regulations	Free from substances that could impair the application of coating: Yes
Approvals	ATEX Identification: Ã¯ II 3 G Ex ec IIC T4 Gc Certificate: DEMKO 16 ATEX 1709X IECEx Identification: Ex ec IIC T4 Gc Certificate: IECEx ULD16.0018 X UL, USA/Canada Identification: cULus UL Ex, USA / Canada Identification: Class I, Division 2, Groups A, B, C, and D, T4 Class I, Zone 2, AEx ec IIC T4 Ex ec IIC T4 Gc X Certificate: E366272 Note: UL60079-0 Ed. 6 / UL60079-7 Ed. 5, CSA22.2 No. 60079-0 Ed. 3 / CSAC22.2 No. 60079-7 Ed. 2 EAC Ex Identification: 2Ex e IIC T4 Gc X Certificate: RU C-DE.HB49.B.00118/21 The following continue to apply for EAC Ex: Identification: ÃÃÃ¸ Ã¼Ã¾Ã½ÃÃ°Ã¶Ãµ Ã¸ÃÃ¿Ã¾Ã»ÃÃ·Ã¾Ã²Ã°ÃÃ Ã¿Ã¾ÃÃ¾Ã´ÃÃÃ¸Ã¹ Ã´Ã¾Ã¿ÃÃÃµÃ½Ã½ÃÃ¹ ÃºÃ¾ÃÃ¿ÃÃ ÃÃ¾ ÃÃÃµÃ¿ÃµÃ½ÃÃ Ã·Ã°ÃÃ¸ÃÃ Ã½Ãµ Ã½Ã¸Ã¶Ãµ IP66. ÃÃ° ÃºÃ¾ÃÃ¿ÃÃÃµ/ÃÃºÃ°ÃÃ ÃÃ¿ÃÃ°Ã²Ã»ÃµÃ½Ã¸Ã Ã´Ã¾Ã»Ã¶Ã½Ã° Ã±ÃÃÃ ÃÃ°Ã·Ã¼ÃµÃÃµÃ½Ã° Ã¿ÃÃµÃ´ÃÃ¿ÃÃµÃ¶Ã´Ã°ÃÃÃ°ÃÃ Ã½Ã°Ã´Ã¿Ã¸ÃÃ, Ã·Ã°Ã¿ÃÃµÃÃ°ÃÃÃ°Ã Ã¾ÃÃºÃÃÃ²Ã°ÃÃ ÃºÃ¾ÃÃ¿ÃÃ Ã¸Ã»Ã¸ ÃÃºÃ°Ã Ã²Ã¾ Ã²Ã·ÃÃÃ²Ã¾Ã¾Ã¿Ã°ÃÃ½Ã¾Ã¹ Ã·Ã¾Ã½Ãµ. ÃÃºÃÃ¿Ã»ÃÃ°ÃÃ°ÃÃ¸Ã ÃÃÃÃÃ¾Ã¹ÃÃÃ²Ã° Ã´Ã¾Ã¿ÃÃÃºÃ°ÃµÃÃÃ ÃÃ¾Ã»ÃÃºÃ¾ Ã¿ÃÃ¸ ÃÃÃ»Ã¾Ã²Ã¸Ã¸, ÃÃÃ¾ Ã²ÃÃµ Ã¾Ã¿ÃÃ¸ÃÃµÃÃºÃ¸Ãµ Ã¿Ã¾ÃÃÃ Ã·Ã°Ã½ÃÃÃ Ã¿Ã¾Ã´ÃºÃ»ÃÃÃµÃ½Ã½ÃÃ¼Ã¸ ÃÃÃÃÃ¾Ã¹ÃÃÃ²Ã°Ã¼Ã¸ Ã¸Ã»Ã¸ Ã·Ã°ÃºÃÃÃÃ Ã¿ÃÃ¸Ã»Ã°Ã³Ã°ÃµÃ¼ÃÃ¼Ã¸ Ã·Ã°Ã³Ã»ÃÃÃºÃ°Ã¼Ã¸. CCC/China-Ex Identification: Ex ec IIC T4 Gc Certificate: 2022122310115629 Corrosive gas test Identification: ISA S71.04.2013 G3 Harsh Group A UKCAEx(UKEX) Identification: Ã¯ II 3 G Ex ec IIC T4 Gc Certificate: PxCIMA22UKEX2702910X DNV GL data Temperature: B Humidity: B Vibration: A EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC data	Conformance with EMC directives: EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A EN 61000-6-2 EN 61000-4-5 (surge) Criterion A EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A EN 61000-6-2 EN 61000-6-4 (interference) ClassA EN 61000-6-2 EN 61000-6-4 (conducted interference) ClassA Noise immunity: EN 61000-6-2 Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU Noise emission: EN 61000-6-4
System properties	Functionality Basic functions: Store-and-forward switch, complies with IEEE802.3
Signaling	Status display: LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link/Activity and Speed)
