ME MAX 6,2 SC 4-4 KMGY - Electronic housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Refer to the data sheet for the range in the download area. Material of contact pads for bus connector, galvanic gold (hard gold) |
Product properties | Product type: Complete housing Product family: ME MAX 6,2 SC Max. number of positions: 8 (pitch: 3.5 mm) Number of rows: 4 Type: Complete housing, tall design Housing type: DIN rail housing Ventilation openings present: no Housing series: ME-MAX Pin layout: Linear pinning |

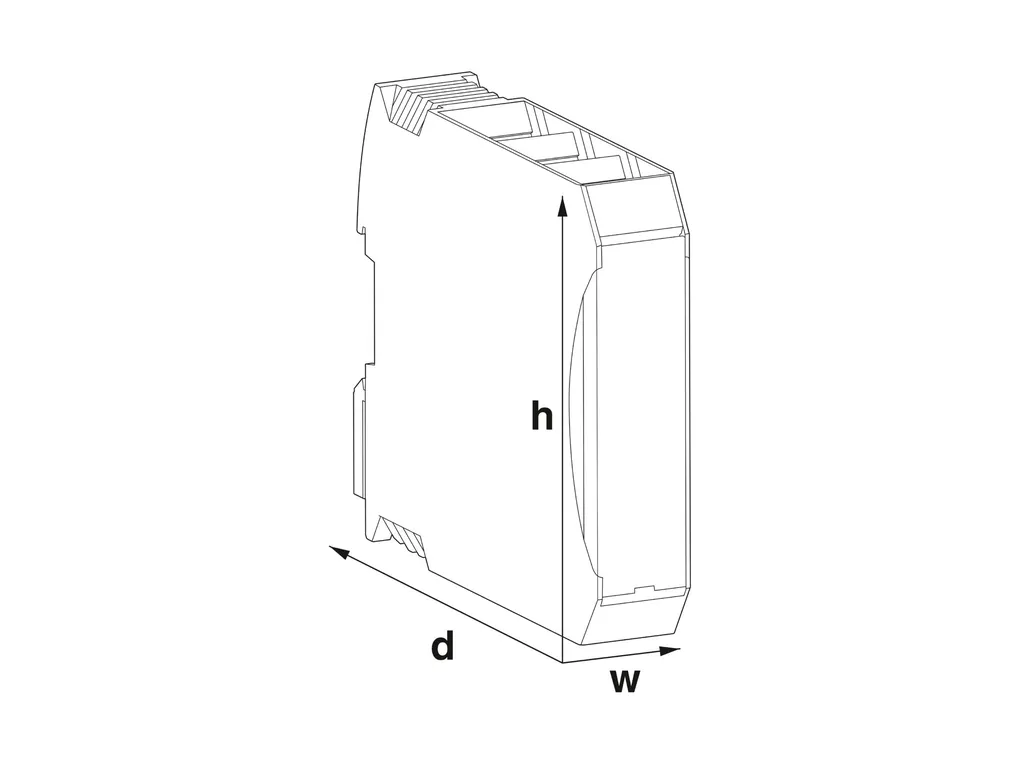

Dimensions | Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22580/full/b250?format=jpg Width: 6.3 mm Height: 93.1 mm Depth: 101.2 mm Depth from top edge of DIN rail: 95 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
Material specifications | Color: light grey (7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Surface characteristics: untreated Housing material: PBT |
Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 95 % |
PCB data | Number of PCB holders: 1 Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm |
Mounting | Mounting type: DIN rail mounting Pin layout: Linear pinning Mounting position: Vertical (horizontal DIN rail) Connection method: Screw connection |
Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190501 |
ETIM | ETIM 9.0: EC001031 |
UNSPSC | UNSPSC 21.0: 31261500 |
