UEGH 22,5 - Electronic housing

Electronic housing, double-level, fully equipped with 6 screw connections per side for one printed circuit board

Product Code: 2757102 Copia - Copy

Copia - Copy

Partner cod.: 2757102 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Type: Connection system integrated, housing closed Complete housing equipped with 6 screw connections per side, for two printed-circuit boards each Product type: Complete housing Product family: UEGH Number of positions: 12 Pitch: 5 mm Number of rows: 2 Housing type: Complete housing Housing series: UEG Pin layout: Linear pinning
Electrical properties	Nominal voltage U_N: 500 V Nominal current I_N: 10 A

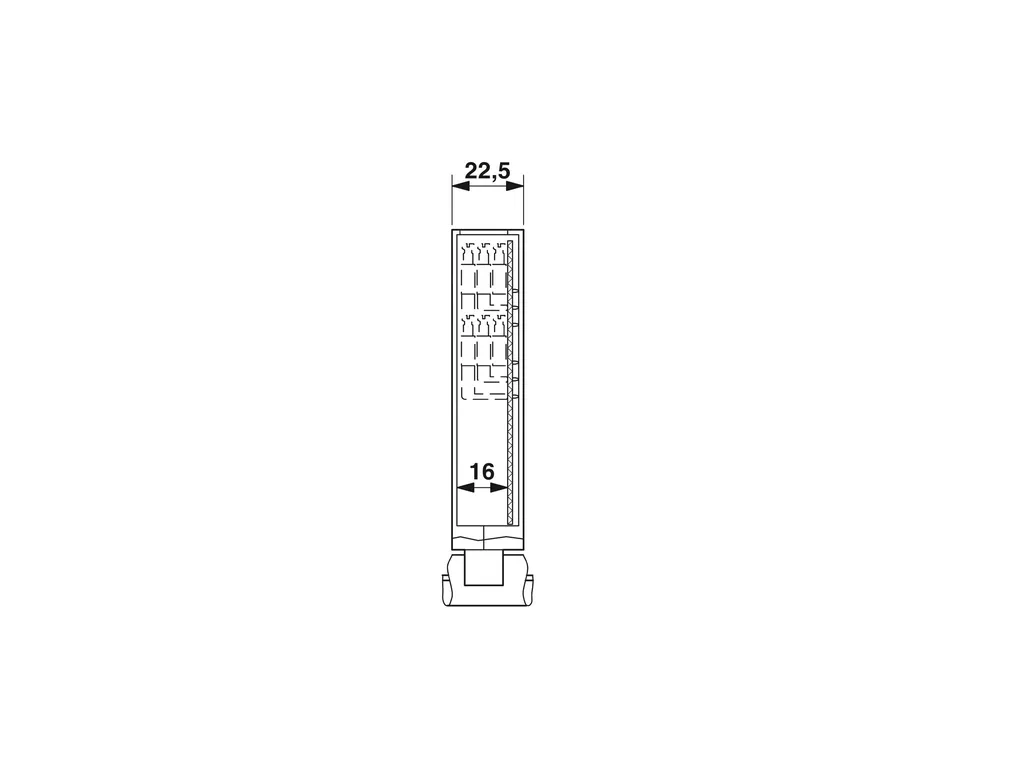

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6d3f46e06b948d41a3a57f8b0eb1a649/-S204x204-FJPG Width: 22.5 mm Installed height: 106.7 mm Height NS 35/7,5: 106.7 mm Depth: 79 mm Length: 79 mm Pitch: 5 mm
Material specifications	Color: green Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 105°C
Mounting	Mounting type: Soldering Pin layout: Linear pinning Connection method: Screw connection

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00420.pdf

Manufacturer_declaration_14869.pdf

Material_description_00001.pdf

Other products

Description other products

PHOENIX CONTACT 1076913

ICS50-TL100X12-5015 - Upper part of housing
Cod. Articolo: 1076913

DIN rail housing, Upper part, with transparent hinged cover, width: 50.1 mm, height: 101 mm, depth: 14.35 mm, color: blue (5015)

PHOENIX CONTACT 2202732

ME 22,5 F-UT BUS/10+2 KMGY - Mounting base housing
Cod. Articolo: 2202732

DIN rail housing, Lower housing part with metal foot catch, flat design, with vents, width: 22.6 mm, height: 99 mm, depth: 84.8 mm, color: light grey (7035), cross connection: integrated bus connector, number of positions cross connector: 10+2, Bus connector: 10parallel contacts, 2serial contacts

PHOENIX CONTACT 2203214

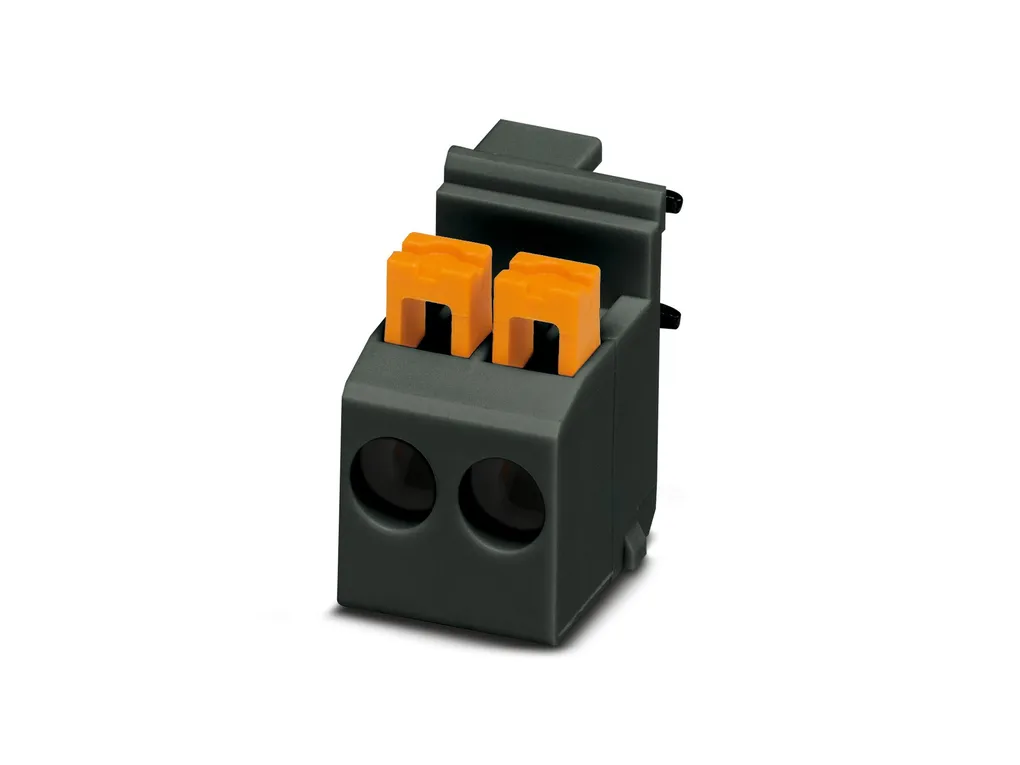

FKDSO 2,5/ 2-R BK - PCB terminal block
