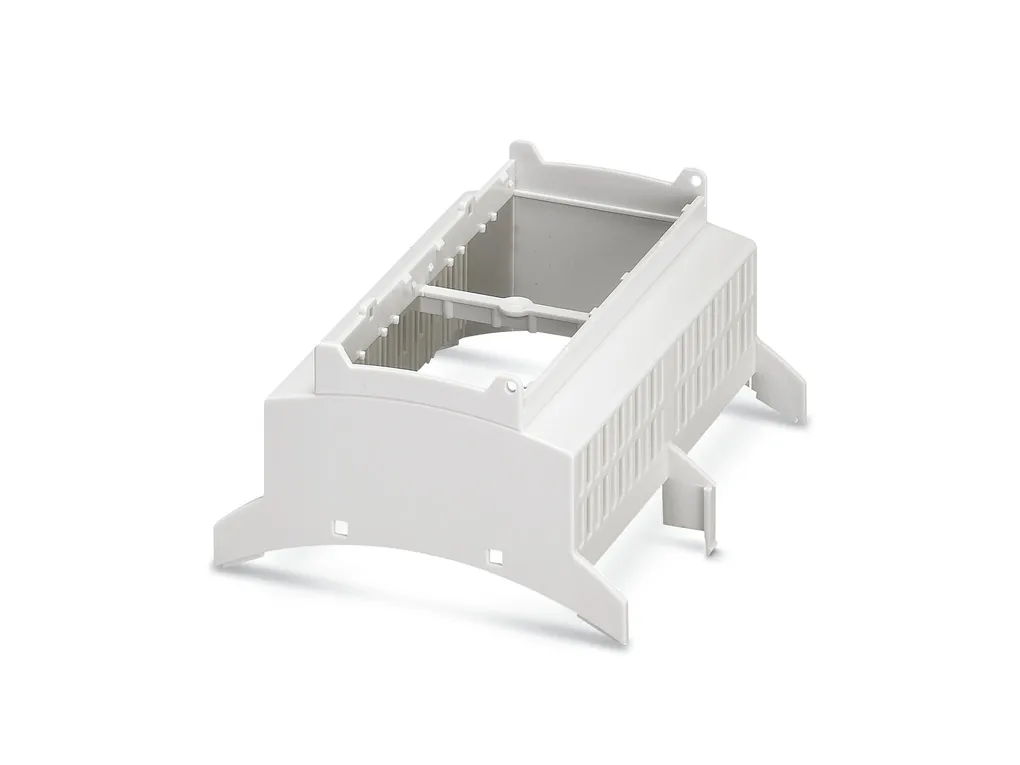

Product properties | Type: Lower housing parts with test opening with side cover, housing cover necessary to complete the module Lower housing part, with snap-on foot and test opening with side cover Product type: Enclosure bottom part Product family: EG Number of positions: 16 Housing type: Component housing Ventilation openings present: no Housing series: EG |

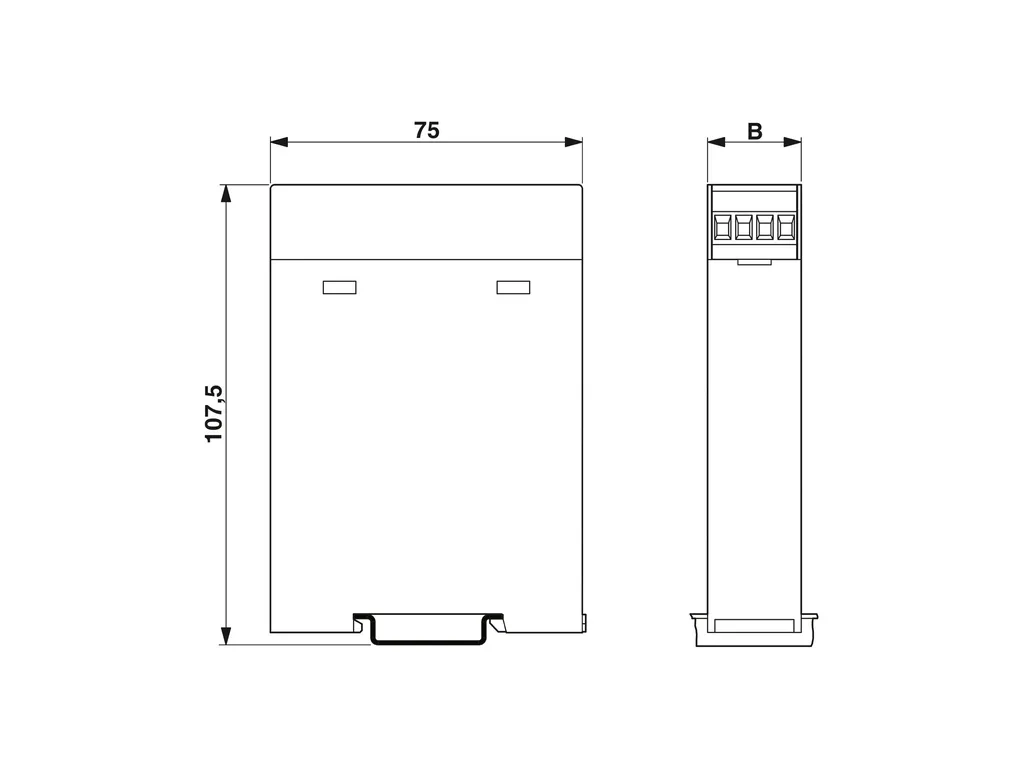

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fdd7f57abcbd3549ae1e3573c4fc7dee/-S204x204-FJPG Width: 45 mm Height: 75 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
Material specifications | Color: gray (7040) Flammability rating according to UL 94: HB Surface characteristics: untreated Housing material: ABS |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 80°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 80°C |
PCB data | Thickness of the PCB: 1.4 mm ... 1.8 mm |
Mounting | Mounting type: DIN rail mounting Mounting position: Vertical (horizontal DIN rail) |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190601 |
ETIM | ETIM 8.0: EC001031 |
UNSPSC | UNSPSC 21.0: 31261500 |
