Product properties | Type: Lower housing part closed, housing cover necessary to complete the module Lower housing part with metal foot catch Product type: Enclosure bottom part Product family: EG G PC Number of positions: 34 Housing type: Component housing Ventilation openings present: no Housing series: EG |

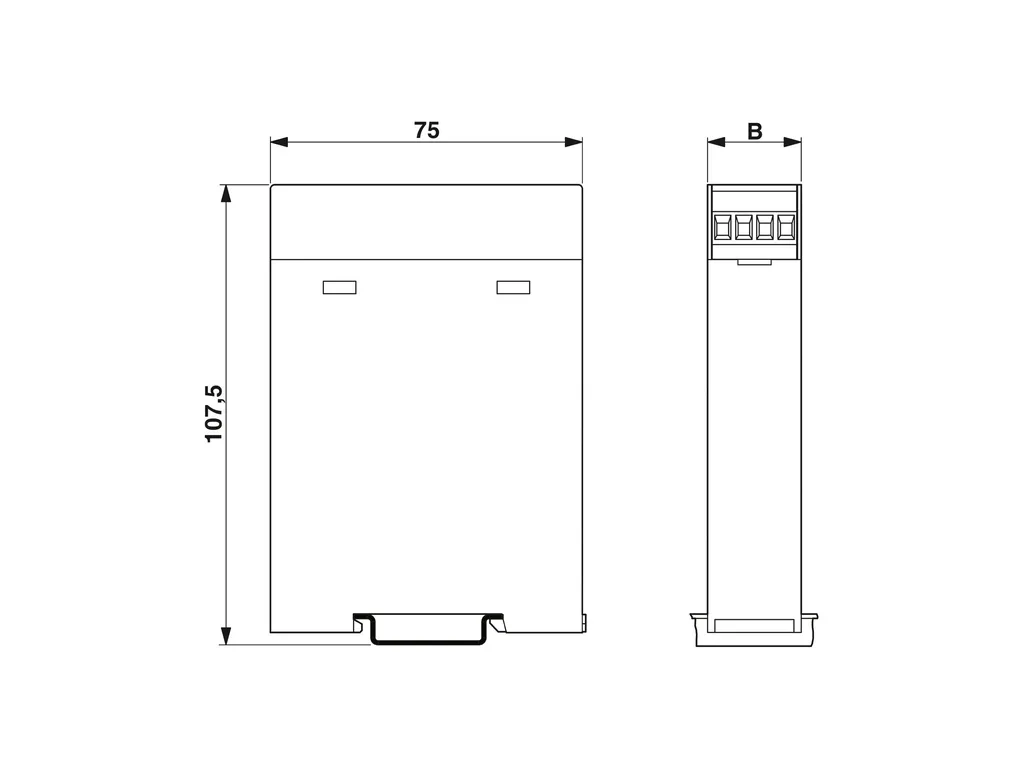

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fdd7f57abcbd3549ae1e3573c4fc7dee/-S204x204-FJPG Width: 90 mm Height: 75 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
Material specifications | Color: green (6021) Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polycarbonate |
Environmental and real-life conditions | Power dissipation single housing for 20°C Ambient temperature: 20°C Reduction factor: 1 Power dissipation single housing for 30°C Ambient temperature: 30°C Reduction factor: 0.8 Power dissipation single housing for 40°C Ambient temperature: 40°C Reduction factor: 0.62 Power dissipation single housing for 50°C Ambient temperature: 50°C Reduction factor: 0.47 Power dissipation single housing for 60°C Ambient temperature: 60°C Reduction factor: 0.3 Ambient conditions Degree of protection: IP20 Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 100°C |
PCB data | Thickness of the PCB: 1.4 mm ... 1.8 mm |
Mounting | Mounting type: DIN rail mounting Mounting position: Vertical (horizontal DIN rail) |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190601 |
ETIM | ETIM 8.0: EC001031 |
UNSPSC | UNSPSC 21.0: 31261500 |
