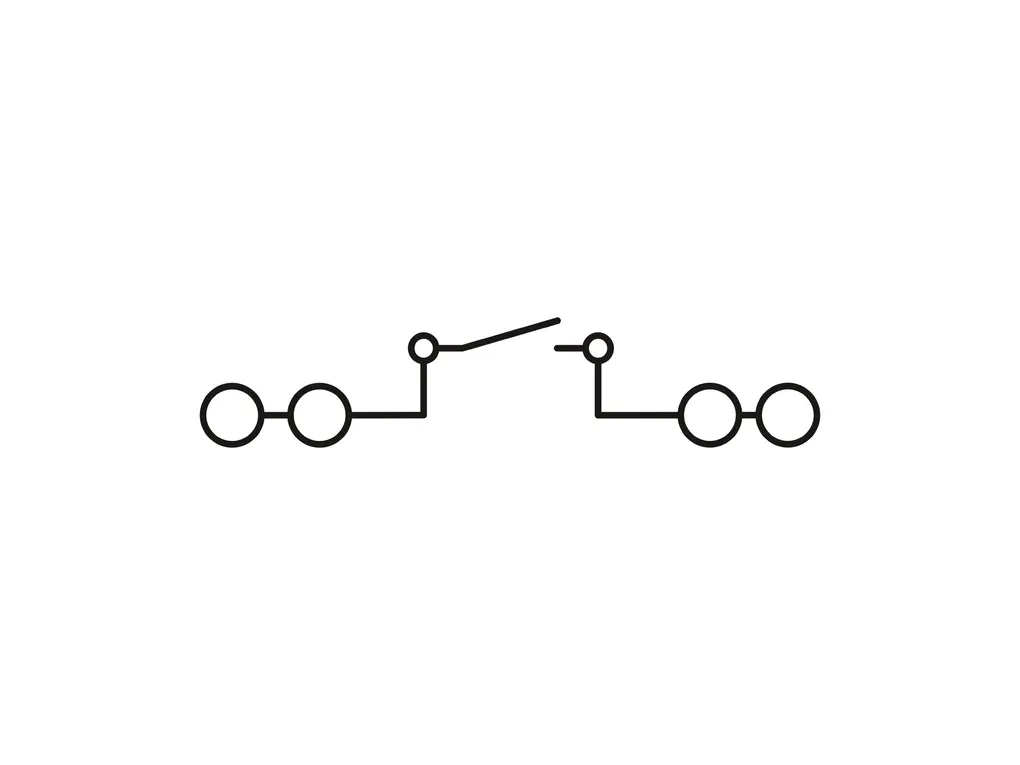

UDK 4-MTK-P/P - Knife-disconnect terminal block

Knife-disconnect terminal block, With test socket screws for insertion of test plugs, nom. voltage:630 V, nominal current:16 A, connection method: Screw connection, Rated cross section:4 mm², cross section:0.2 mm²-6 mm², mounting: NS 35/7,5, NS35/15, NS32, color:gray

Product Code: 2775210

Partner cod.: 2775210

PHOENIX CONTACT

Notes	General Note: When establishing a connection on the open housing side of a feed-through modular terminal block of the same series and size, the block must be provided with a cover if the expected insulation voltage is >320 V. The max. load current must not be exceeded by the total current of all connected conductors.
Product properties	Product type: Disconnect terminal block Number of connections: 4 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.02 W
Connection data	Number of connections per level: 4 Nominal cross section: 4 mm² Screw thread: M3 Tightening torque: 0.6 ... 0.8 Nm Stripping length: 8 mm Internal cylindrical gage: A4 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.2 mm² ... 6 mm² Cross section AWG: 24 ... 10 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross section, flexible [AWG]: 24 ... 12 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 1.5 mm² Cross-section with insertion bridge, rigid: 2.5 mm² Cross-section with insertion bridge, flexible: 2.5 mm² 2 conductors with same cross section, solid: 0.2 mm² ... 1 mm² 2 conductors with same cross section, flexible: 0.2 mm² ... 1.5 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1 mm² Nominal current: 16 A (with 6 mm² conductor cross section) Maximum load current: 16 A (with a 6mm² conductor cross section) Nominal voltage: 630 V (The maximum load current must not be exceeded by the total current of all connected conductors.)
Dimensions	Width: 6.2 mm End cover width: 1.5 mm Height: 63.5 mm Depth on NS32: 52 mm Depth on NS35/7,5: 47 mm Depth on NS35/15: 54.5 mm
Material specifications	Color: gray Flammability rating according to UL 94: V2 Insulating material group: I Insulating material: PA Static insulating material application in cold: -40°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C Relative insulation material temperature index (Elec., UL 746 B): 125°C
Electrical tests	Surge voltage test Result: Test passed Temperature-rise test Requirement temperature-rise test: Increase in temperature Ã¢¤45K Result: Test passed Short-time withstand current 1.5 mm²: 0.18 kA Power-frequency withstand voltage Test voltage setpoint: 1.89 kV Result: Test passed
Mechanical properties	Mechanical data Open side panel: Yes
Mechanical tests	Mechanical strength Result: Test passed Attachment on the carrier Result: Test passed Test for conductor damage and slackening Rotation speed: 10 (+/- 2) rpm Revolutions: 135 Conductor cross section/weight: 0.2 mm² / 0.2 kg 4 mm² / 0.9 kg 6 mm² / 1.4 kg Result: Test passed
Environmental and real-life conditions	Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: DINEN50155 (VDE0115-200):2018-05 Spectrum: Service life test category2, bogie-mounted Frequency: f₁ = 5 Hz to f₂ = 250 Hz ASD level: 6.12 (m/s²)²/Hz Acceleration: 3.12g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DINEN50155 (VDE0115-200):2018-05 Pulse shape: Semi-sinusoidal Acceleration: 5g Shock duration: 30ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: NS 35/7,5 NS35/15 NS32
