| Product properties | Type: Connection system integrated, housing closed Product type: Complete housing Product family: UEG Number of positions: 16 Pitch: 5 mm Number of rows: 2 Housing type: Component housing Housing series: UEG Pin layout: Linear pinning |
| Electrical properties | Nominal voltage UN: 500 V (Voltage and current values are affected by the configuration of the printed circuit board.) Nominal current IN: 10 A |

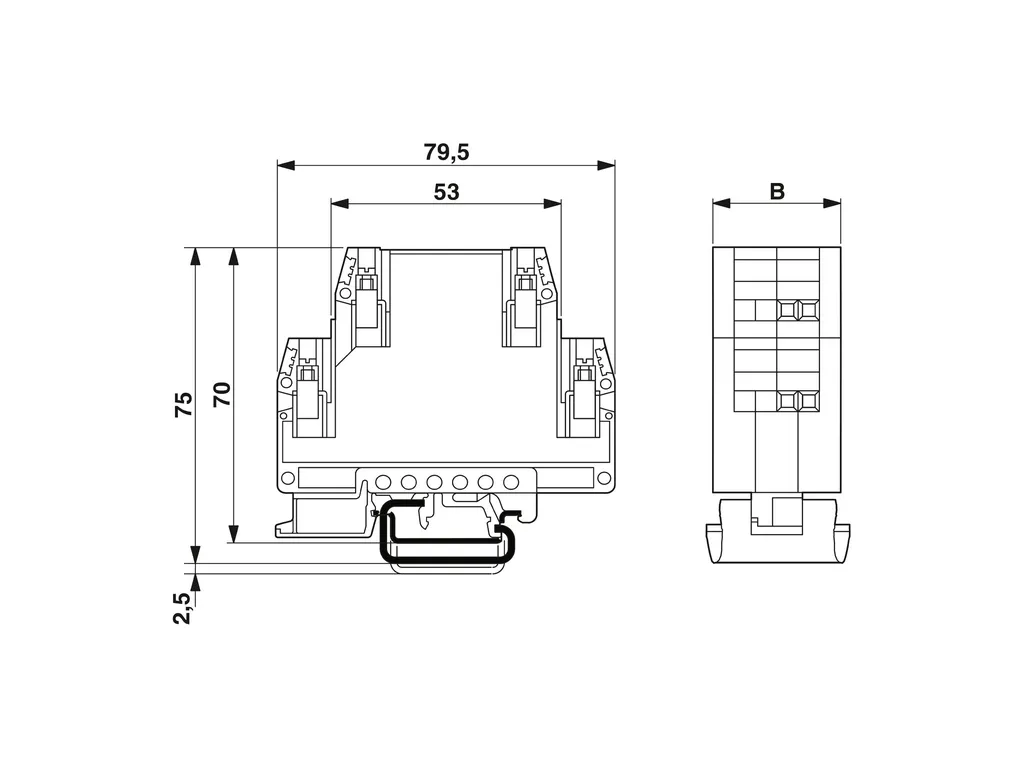

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f534ddacdc28a040b38dac838dc118c5/-S204x204-FJPG Width: 30 mm Installed height: 70 mm Height NS 35/15: 77.5 mm Height NS 35/7,5: 70 mm Height NS 32: 75 mm Depth: 79.5 mm Pitch: 5 mm |
| Material specifications | Color: green Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide |
| Mechanical properties | Mechanical data Open side panel: No |
| Environmental and real-life conditions | Power dissipation single housing for 20°C Ambient temperature: 20°C Reduction factor: 1 Power dissipation single housing for 30°C Ambient temperature: 30°C Reduction factor: 0.78 Power dissipation single housing for 40°C Ambient temperature: 40°C Reduction factor: 0.61 Power dissipation single housing for 50°C Ambient temperature: 50°C Reduction factor: 0.48 Power dissipation single housing for 60°C Ambient temperature: 60°C Reduction factor: 0.37 Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 100°C |
| Mounting | Mounting type: Soldering Pin layout: Linear pinning Connection method: Screw connection |
| ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190101 |
| ETIM | ETIM 8.0: EC001031 |
| UNSPSC | UNSPSC 21.0: 31261500 |
