UEGM 22,5 - Electronic housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Type: Connection system integrated, housing closed Complete housing equipped with 3 screw connections per side Product type: Complete housing Product family: UEGM Number of positions: 6 Pitch: 5 mm Number of rows: 1 Housing type: Component housing Housing series: UEG Pin layout: Linear pinning |
Electrical properties | Nominal voltage UN: 500 V (Voltage and current values are affected by the configuration of the printed circuit board.) Nominal current IN: 10 A |

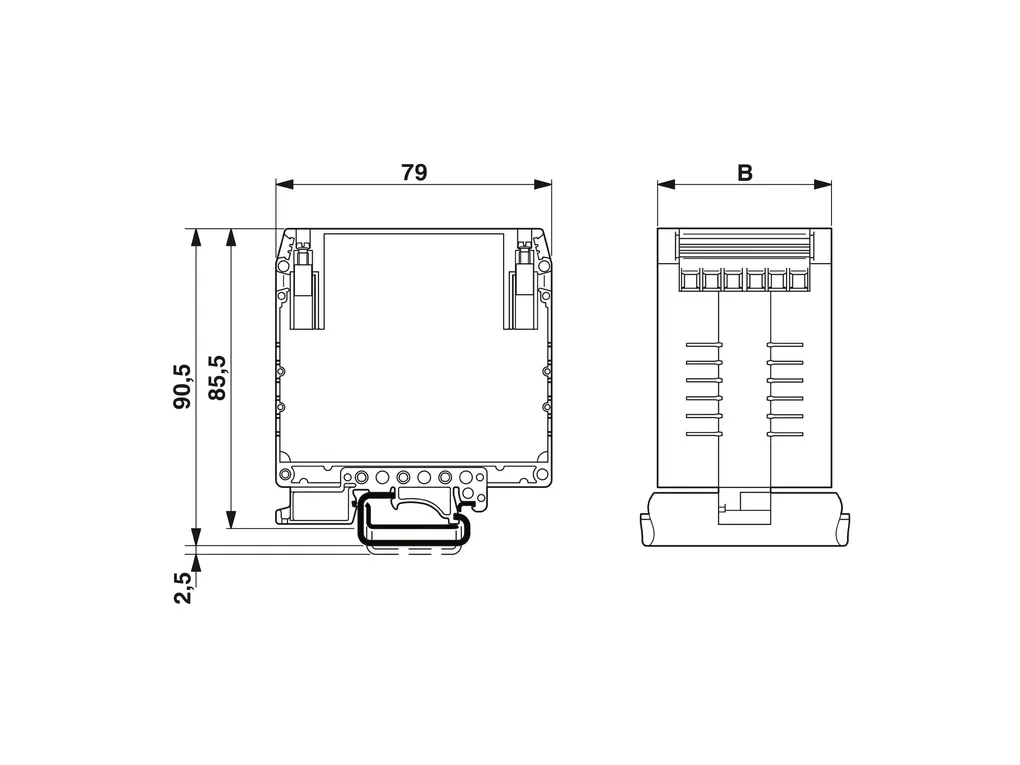

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/734e57855939cd42b9425c81cabae09f/-S204x204-FJPG Width: 22.5 mm Installed height: 85.5 mm Height NS 35/7,5: 85.5 mm Depth: 79 mm Length: 79 mm Pitch: 5 mm |
Material specifications | Color: green Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 105°C |
Mounting | Mounting type: DIN rail mounting Pin layout: Linear pinning Connection method: Screw connection |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190501 |
ETIM | ETIM 9.0: EC001031 |
UNSPSC | UNSPSC 21.0: 31261500 |
