UEGM 25-FS/FS - Electronic housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Type: Connection system integrated, housing closed Complete housing equipped with 6 spade connections per side Product type: Complete housing Product family: UEGM Number of positions: 12 Housing type: Component housing Housing series: UEG |
Electrical properties | Nominal voltage UN: 500 V (Voltage and current values are affected by the configuration of the printed circuit board.) Nominal current IN: 10 A (6.3 mm slip-on connection) 8 A (2.8 mm slip-on connection) |

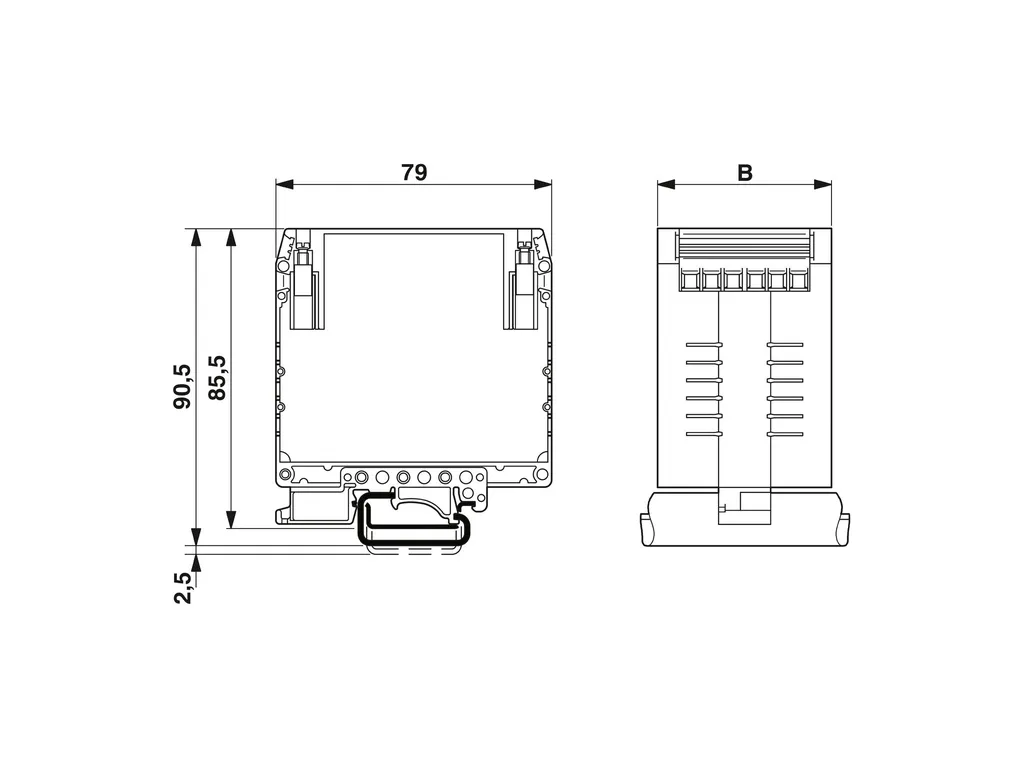

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/734e57855939cd42b9425c81cabae09f/-S204x204-FJPG Width: 25 mm Installed height: 85.5 mm Height NS 35/7,5: 85.5 mm Depth: 101 mm Length: 101 mm |
Material specifications | Color: green Flammability rating according to UL 94: V2 Surface characteristics: untreated Housing material: Polyamide |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 105°C |
Mounting | Mounting type: DIN rail mounting |
ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190501 |
ETIM | ETIM 9.0: EC001031 |
UNSPSC | UNSPSC 21.0: 31261500 |
