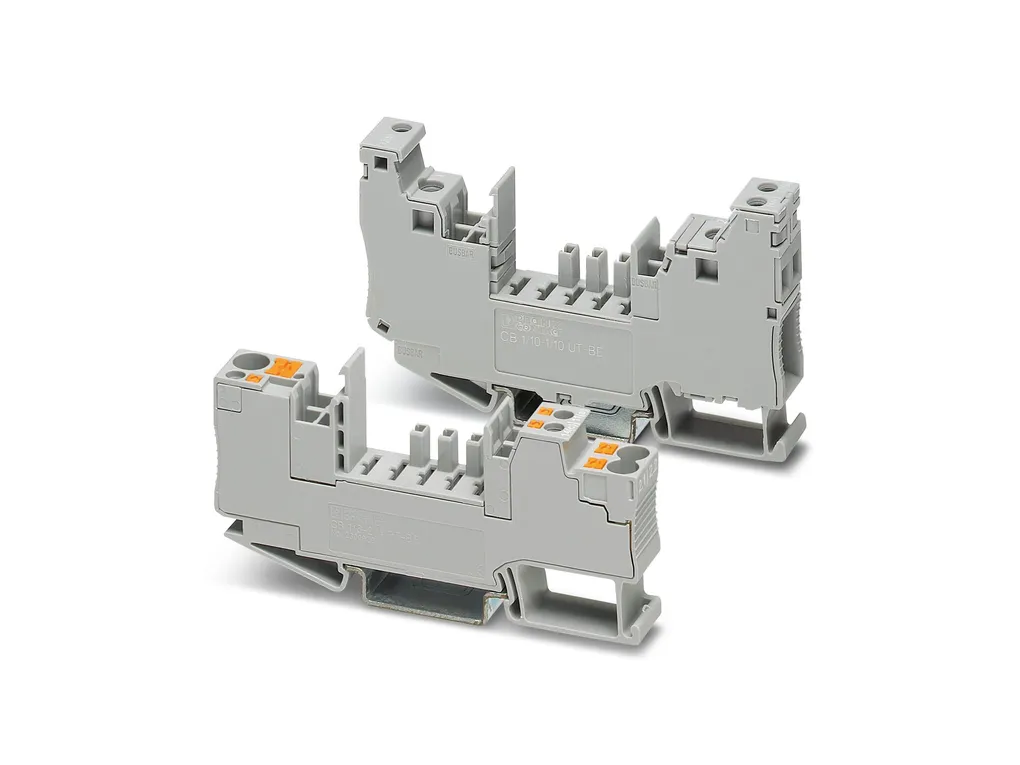

| Product properties | Type: Base element, DIN rail mounting Product type: Base element Product family: CB BE Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Maximum load current: 16 A Maximum power dissipation for nominal condition: 0 VA Nominal voltage UN: 300 V General Rated insulation voltage Ui: 250 V Rated surge voltage: 4 kV Insertion/withdrawal cycles: 100 Indicator/remote signaling Connection name: Remote indication circuit Switching function: Changeover contact |
| Connection data | Maximum load current: 16 A Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² Connection 1 ... 6 mm² Connection 1 0.25 mm² Connection 2.1/2.2 ... 4 mm² Connection 2.1/2.2 0.14 mm² Connection 12/11/14 ... 1 mm² Connection 12/11/14 Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² Connection 1 ... 6 mm² Connection 1 0.25 mm² Connection 2.1/2.2 ... 4 mm² Connection 2.1/2.2 0.14 mm² Connection 12/11/14 ... 1.5 mm² Connection 12/11/14 Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve): 0.5 mm² Connection 1 ... 1 mm² Connection 1 0.5 mm² Connection 2.1/2.2 ... 1 mm² Connection 2.1/2.2 Connection cross sections directly pluggable Conductor cross section rigid: 1 mm² ... 6 mm² 0.5 mm² ... 6 mm² 0.25 mm² ... 1.5 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² Connection 1 ... 6 mm² Connection 1 0.5 mm² Connection 2.1/2.2 ... 4 mm² Connection 2.1/2.2 0.34 mm² Connection 12/11/14 ... 1 mm² Connection 12/11/14 Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² Connection 1 ... 6 mm² Connection 1 0.75 mm² Connection 2.1/2.2 ... 4 mm² Connection 2.1/2.2 0.34 mm² Connection 12/11/14 ... 1.5 mm² Connection 12/11/14 Connection 1 Connection method: Push-in connection Stripping length: 12 mm Conductor cross section flexible min.: 0.5 mm² Conductor cross section flexible max.: 6 mm² Conductor cross section, rigid min.: 0.5 mm² Conductor cross section, rigid max.: 6 mm² Connection 2.1/2.2 Connection method: Push-in connection Stripping length: 12 mm Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 4 mm² Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 6 mm² Remote indication circuit Connection method: Push-in connection Stripping length: 8 mm Conductor cross section flexible: 0.14 mm² ... 1.5 mm² Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section AWG: 26 ... 16 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.14 mm² ... 1.5 mm² |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7949599a98b8c9408328d0a6837d0f2a/-S204x204-FJPG Width: 12.3 mm Height: 90 mm Depth: 46.7 mm |
| Material specifications | Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA 6.6 |
| Mechanical properties | Mechanical data Open side panel: No |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP30 (Actuation area) Ambient temperature (operation): -30°C ... 60°C Ambient temperature (storage/transport): -40°C ... 120°C |
| Standards and regulations | Standards/specifications: IEC 60947-7-1 |
| Mounting | Mounting type: DIN rail: 35 mm Connection method: Push-in connection |
| ECLASS | ECLASS-11.0: 27140401 ECLASS-12.0: 27140401 ECLASS-13.0: 27140401 |
| ETIM | ETIM 9.0: EC003538 |
| UNSPSC | UNSPSC 21.0: 39121400 |
