CBB TM 08 2X4RC P-PT - Potential distributors
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)

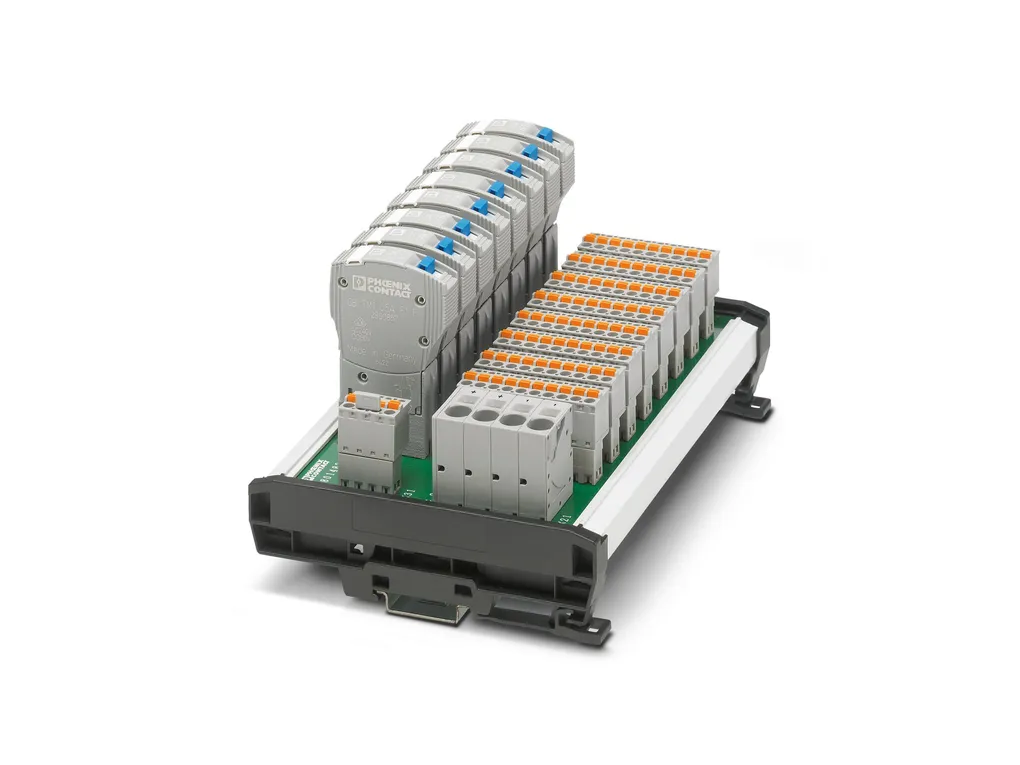

Product properties | Type: DIN rail module, two-section, divisible Product type: Device circuit breaker board Number of positions: 1 No. of channels: 8 Insulation characteristics Protection class: III Overvoltage category: II Degree of pollution: 2 |
Electrical properties | No. of channels: 8 Fuse type: Automatic device Maximum load current: 60 A (Complete main circuit) Maximum current with single arrangement: 12 A (per channel) General Rated insulation voltage Ui: 50 VDC Rated surge voltage: 0.5 kV Short circuit stability: 600 A (conditional according to DIN EN 50178) Power dissipation: 4.9 W (with even load on outputs with In) Insertion/withdrawal cycles: 50 Main circuit Rated voltage: 24 VDC Rated current IN: 60 ADC (total) 12 ADC (per channel) Remote indication circuit Rated voltage: 24 VDC Rated current IN: 1 ADC |
Connection data | Maximum load current: 60 A (Complete main circuit) Supply X21 Connection method: Push-in connection Stripping length: 18 mm Conductor cross section flexible min.: 0.75 mm² Conductor cross section flexible max.: 16 mm² Conductor cross section, rigid min.: 0.75 mm² Conductor cross section, rigid max.: 16 mm² Outputs X1 ... X8 Connection method: Push-in connection Stripping length: 10 mm Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 2.5 mm² Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 2.5 mm² Remote signaling X31 Connection method: Push-in connection Stripping length: 10 mm Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 2.5 mm² Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 2.5 mm² |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e90a408c2a7d354aa1575d8b183b9f00/-S204x204-FJPG Width: 185.5 mm Height: 127.8 mm Depth: 70.8 mm |
Material specifications | Flammability rating according to UL 94: V0 |
Mechanical properties | Mechanical data Open side panel: No |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 (Terminal blocks and fuse holders) IP00 (PCB) Ambient temperature (operation): -30°C ... 60°C (at In 60 A) Ambient temperature (storage/transport): -30°C ... 80°C |
Standards and regulations | Standards/specifications: DINEN50178 Note: 1997 |
Mounting | Mounting type: DIN rail: 35 mm Mounting position: horizontal |
ECLASS | ECLASS-11.0: 27371392 ECLASS-12.0: 27371392 ECLASS-13.0: 27371392 |
ETIM | ETIM 9.0: EC002498 |
UNSPSC | UNSPSC 21.0: 39121100 |
