| Product properties | Product type: Relay Module Operating mode: 100% operating factor Mechanical service life: approx. 2x 107 cycles |
| Electrical properties | Maximum power dissipation for nominal condition: 0.5 W Test voltage (Winding/contact): 2.5 kV AC (50Hz, 1min., winding/contact) |

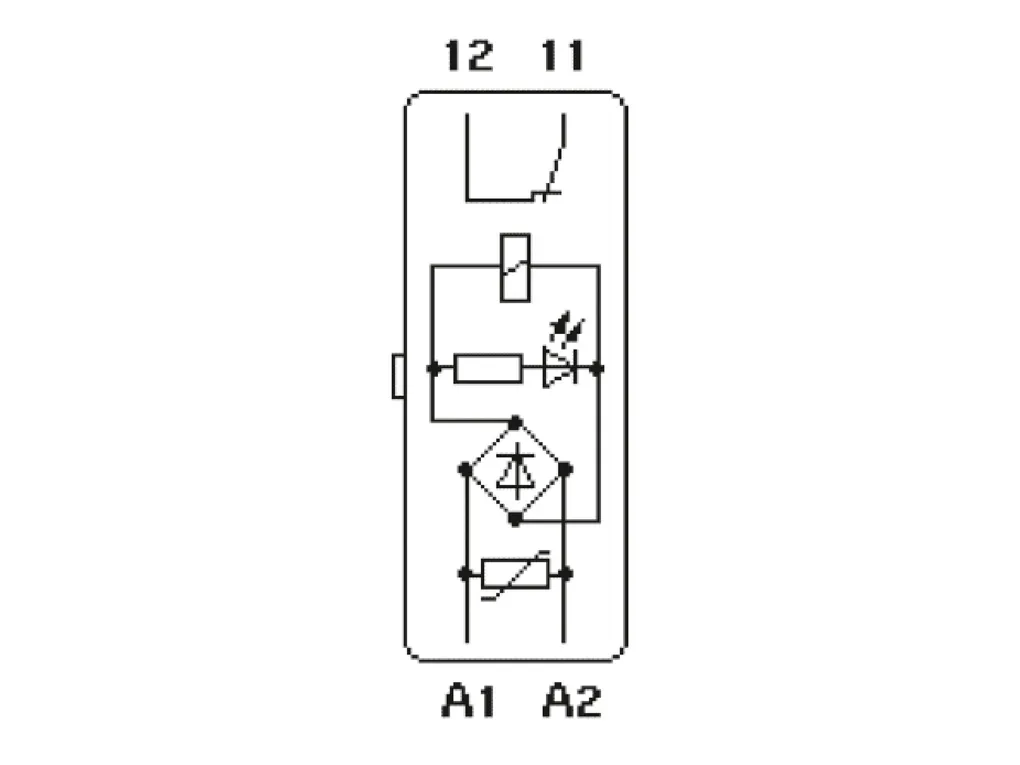

| Input data | Coil side Nominal input voltage UN: 24 V AC/DC Input voltage range: 19.2 V AC/DC ... 26.4 V AC/DC (20°C) Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 21 mA Typical response time: 7 ms (with DC) Typical release time: 11 ms (with DC) Protective circuit: Bridge rectifier, varistor Operating voltage display: yes |
| Output data | Switching Contact switching type: 1 N/C contact Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC Limiting continuous current: 6 A Maximum inrush current: 8 A Interrupting rating (ohmic load) max.: 95 W (at 24 V DC) 50 W (at 48 V DC) 45 W (at 60 V DC) 45 W (at 110 V DC) 75 W (at 220 V DC) 1500 VA (for 250 V AC) |
| Dimensions | Width: 14.6 mm Height: 33 mm Depth: 66.5 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C |
| Standards and regulations | Standards/regulations: DINVDE0110b, Gr. C for 250 V DC IEC 60255/DIN VDE 0435 (in relevant parts) DINEN50178/VDE0160 (in relevant parts) EN60730/DINVDE0631 DINVDE0160 (in relevant parts) |
| Mounting | Mounting type: Plug-in mounting |
| ECLASS | ECLASS-11.0: 27371601 ECLASS-12.0: 27371601 ECLASS-13.0: 27371601 |
| ETIM | ETIM 8.0: EC001437 |
| UNSPSC | UNSPSC 21.0: 39122300 |
