MSTBO 2,5/ 4-G1L BUGY - PCB header
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product line: COMBICON Connectors M Product type: PCB headers Product family: MSTBO 2,5/..-G1L Number of positions: 4 Pitch: 5 mm Number of rows: 1 Mounting flange: no Pin layout: Linear pinning Solder pins per potential: 1 |

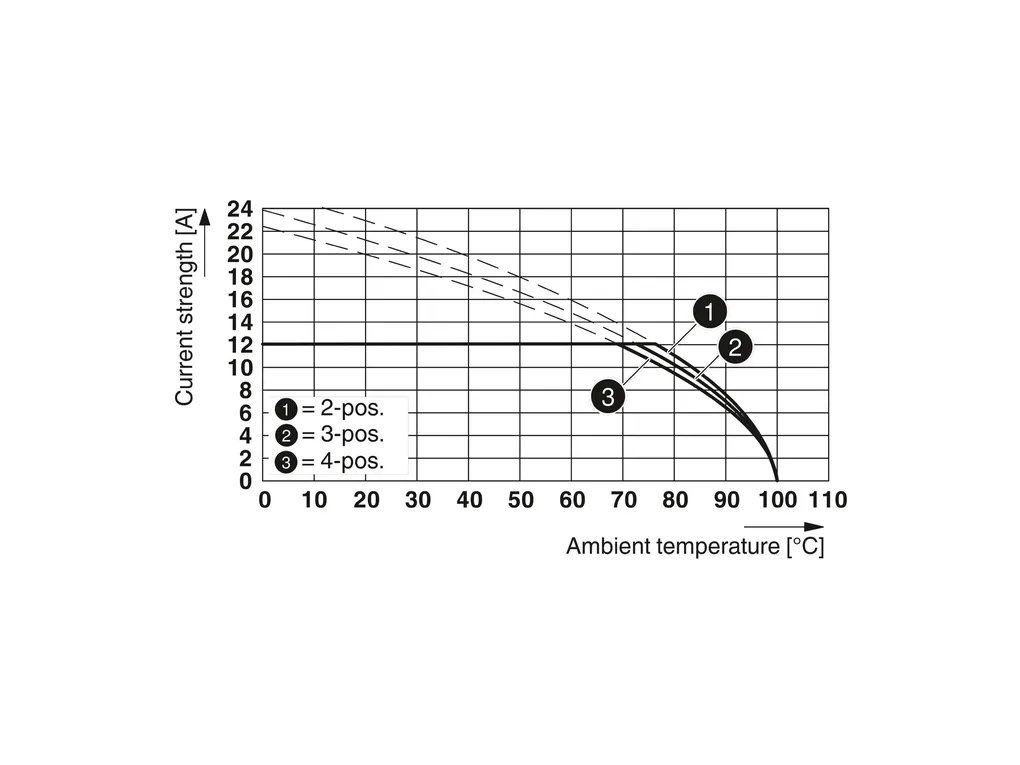

Electrical properties | Nominal current IN: 12 A Nominal voltage UN: 250 V Degree of pollution: 3 Contact resistance: 1.5 mé Rated voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV Rated voltage (III/2): 320 V Rated surge voltage (III/2): 4 kV Rated voltage (II/2): 630 V Rated surge voltage (II/2): 4 kV |
Mounting | Mounting type: Wave soldering Pin layout: Linear pinning |
Material specifications | Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: tin-plated Material data - housing Color (Housing): blue grey (7031) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to EN60695-2-12: 850 Glow wire ignition temperature GWIT according to EN60695-2-13: 775 Temperature for the ball pressure test according to EN60695-10-2: 125°C |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2464924391ea904289a8463658d8e4b7/-S204x204-FJPG Pitch: 5 mm Width [w]: 19.95 mm Height [h]: 16.5 mm Length [l]: 14.65 mm Solder pin length [P]: 3.5 mm Pin dimensions: 1 x 1 mm PCB design Hole diameter: 1.4 mm |
Mechanical tests | Visual inspection Specification: IEC 60512-1-1:2002-02 Result: Test passed Dimension check Specification: IEC 60512-1-2:2002-02 Result: Test passed Resistance of inscriptions Specification: IEC 60068-2-70:1995-12 Result: Test passed Polarization and coding Specification: IEC 60512-13-5:2006-02 Result: Test passed Contact holder in insert Specification: IEC 60512-15-1:2008-05 Contact holder in insert Requirements >20 N: Test passed Insertion and withdrawal forces Result: Test passed No. of cycles: 25 Insertion strength per pos. approx.: 13 N Withdraw strength per pos. approx.: 7 N |
Electrical tests | Thermal test | Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 4 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >5Mé Air clearances and creepage distances | Specification: IEC 60664-1:2007-04 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV minimum clearance value - non-homogenous field (III/3): 3 mm minimum creepage distance (III/3): 3.2 mm Rated insulation voltage (III/2): 320 V Rated surge voltage (III/2): 4 kV minimum clearance value - non-homogenous field (III/2): 3 mm minimum creepage distance (III/2): 1.6 mm Rated insulation voltage (II/2): 630 V Rated surge voltage (II/2): 4 kV minimum clearance value - non-homogenous field (II/2): 3 mm minimum creepage distance (II/2): 3.2 mm |
Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min 5g (60.1Hz...150Hz) Amplitude: 0.35mm (10Hz...60.1Hz) Test duration per axis: 2.5 h Durability test Specification: IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level: 4.8 kV Contact resistance R1: 1.5 mé Contact resistance R2: 1.5 mé Insertion/withdrawal cycles: 25 Insulation resistance, neighboring positions: >5Mé Climatic test Specification: ISO6988:1985-02 Corrosive stress: 0.2 dm3 SO2 on 300 dm3/40°C/1 cycle Thermal stress: 100°C/168h Power-frequency withstand voltage: 2.21 kV Ambient conditions Ambient temperature (operation): -40°C ... 105°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 55°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C |
Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
ECLASS | ECLASS-11.0: 27460201 ECLASS-12.0: 27460201 ECLASS-13.0: 27460201 |
ETIM | ETIM 8.0: EC002637 |
UNSPSC | UNSPSC 21.0: 39121400 |
