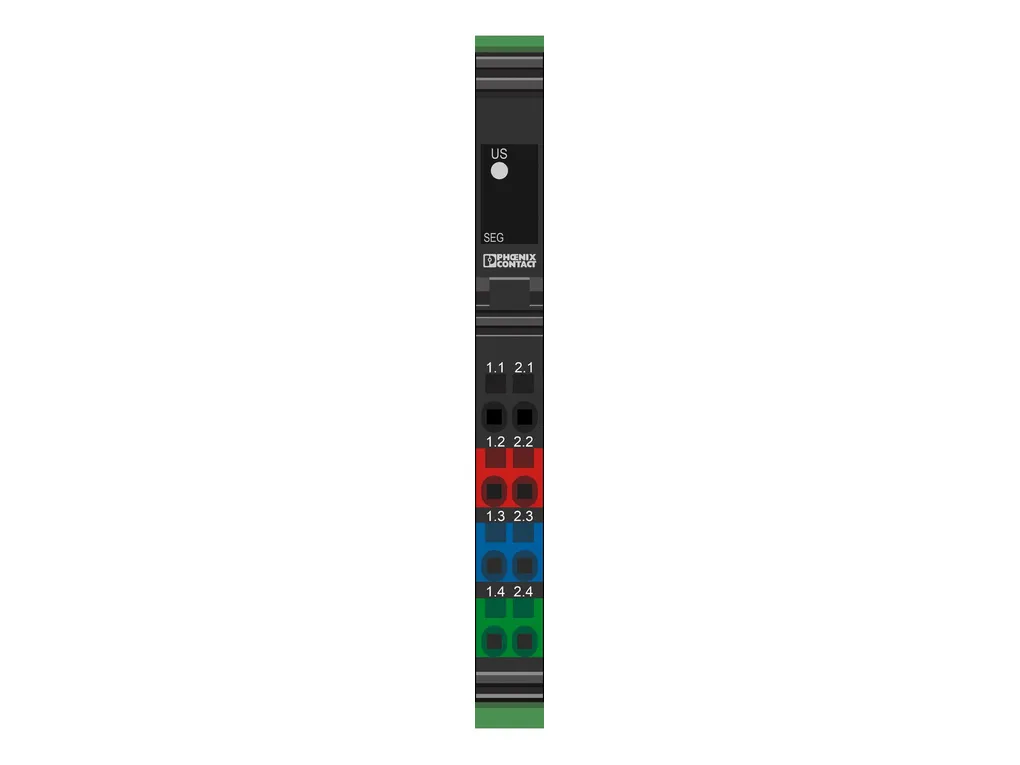

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/61847ea072ac2f4a94bf2299909bd975/-S204x204-FJPG Width: 12.2 mm Height: 119.8 mm Depth: 71.5 mm |
| Notes | Utilization restriction CCCex note: Use in potentially explosive areas is not permitted in China. |
| Interfaces | Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 500 kbps / 2 Mbps |
| System properties | Module ID code (dec.): none ID code (hex): none Register length: 0 Byte Required parameter data: 0 Byte Required configuration data: 0 Byte |
| Product properties | Type: modular Product type: I/O component Product family: Inline Number of plugs: 1 Insulation characteristics Protection class: III (IEC 61140, EN61140, VDE0140-1) |
| Electrical properties | Test section: 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 VAC 50 Hz 1 min. 5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 VAC 50 Hz 1 min. 7.5 V supply (bus logics)/24 V supply (I/O) 500 VAC 50 Hz 1 min. 24V supply (I/O) / functional ground 500 VAC 50 Hz 1 min. Protective circuit: Overload protection; Fuse Supply I/O voltage: 24 VDC I/O voltage range: 19.2 VDC ... 30 VDC Residual ripple: ± 1.2 V Max. current consumption: 6 A (8A) Potentials: Main circuit supply (U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 8 A (nominal value) Potentials: Segment circuit supply (U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 55°C Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) Permissible humidity (storage/transport): 75 % ... 85 % (Slight temporary condensation may sometimes appear on the housing, e.g. when the terminal block is brought out of a vehicle into an enclosed room.) |
| Mounting | Mounting type: DIN rail mounting |
| ECLASS | ECLASS-11.0: 27242610 ECLASS-12.0: 27242610 ECLASS-13.0: 27242610 |
| ETIM | ETIM 9.0: EC001600 |
| UNSPSC | UNSPSC 21.0: 32151600 |
